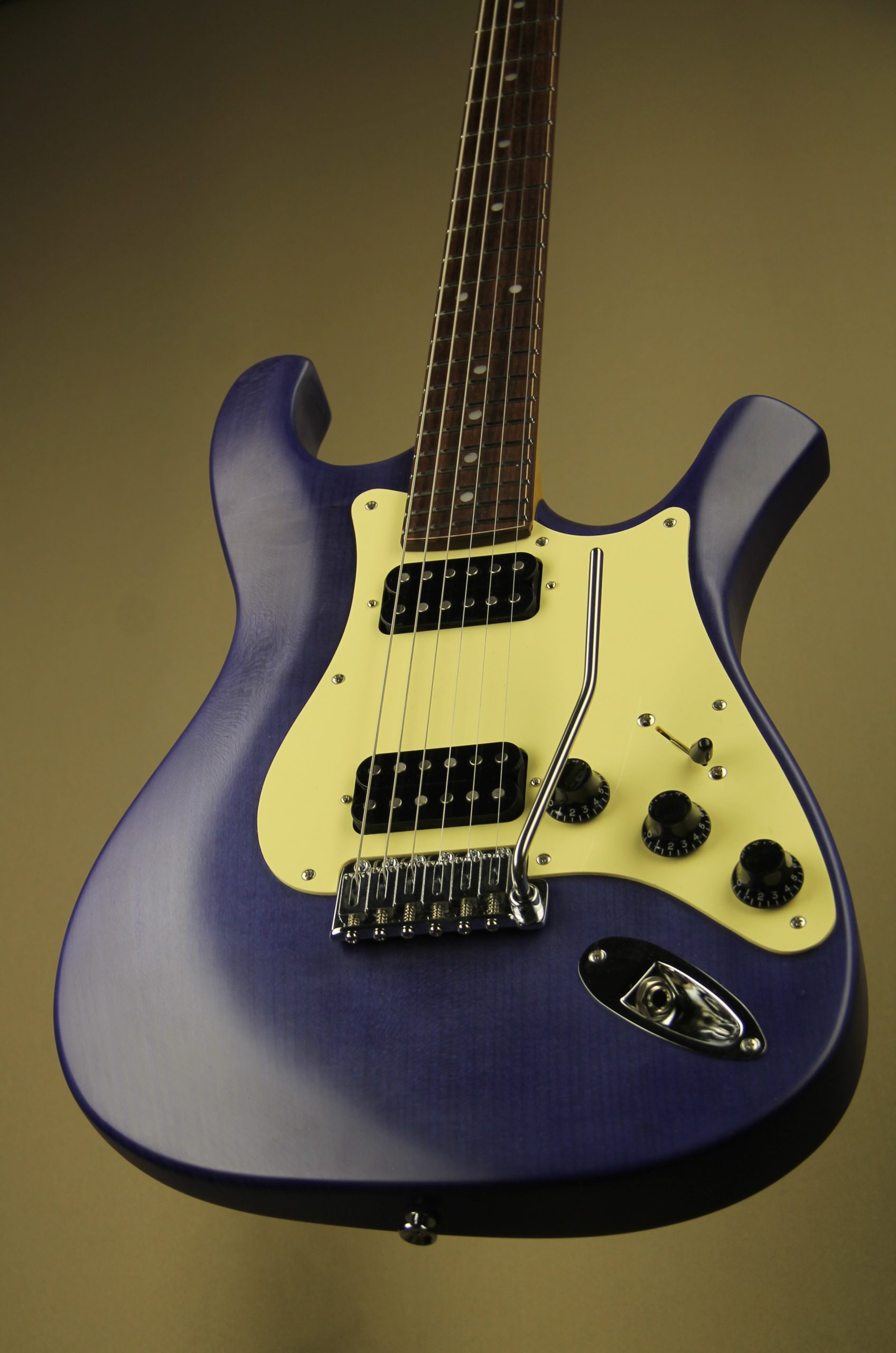

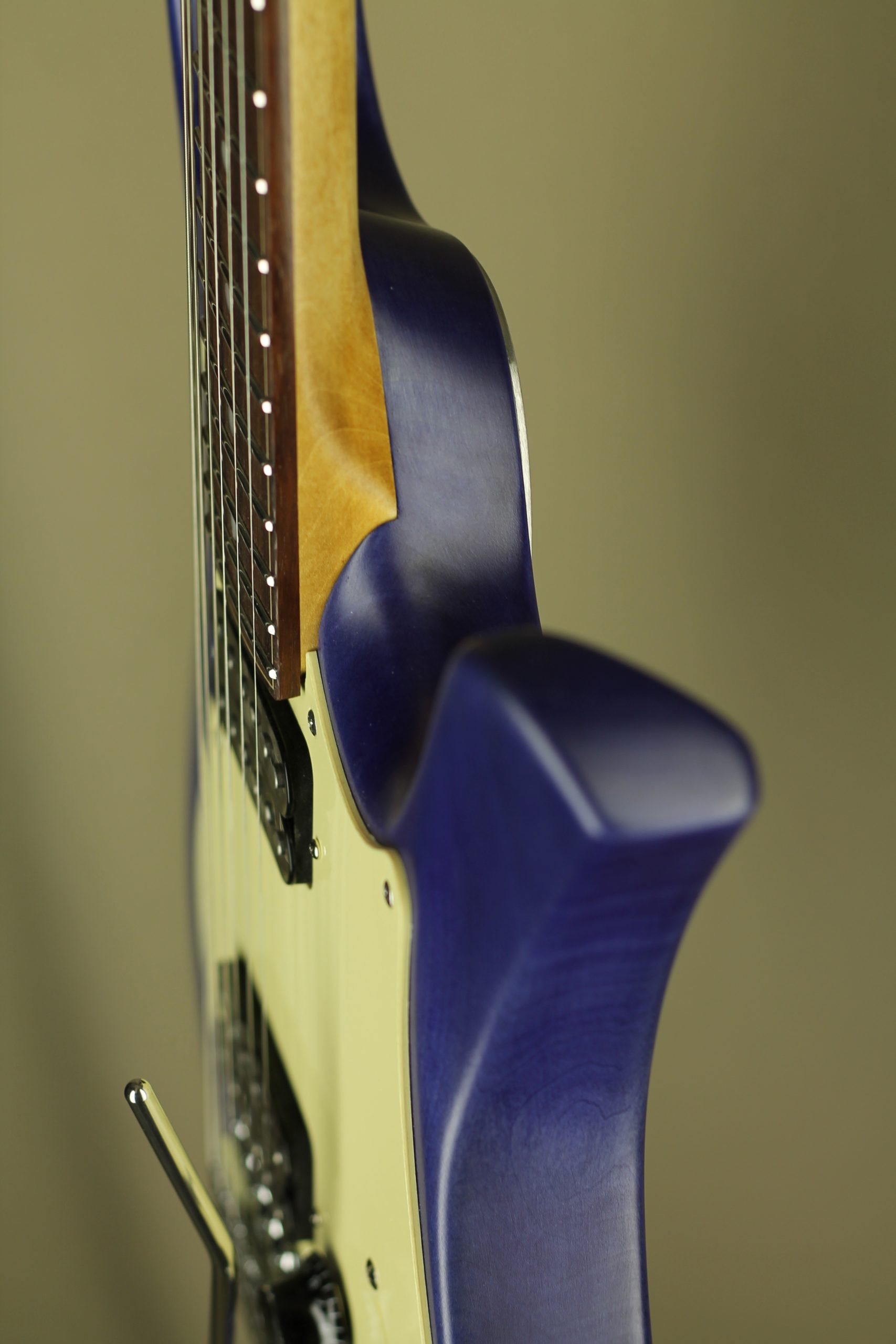

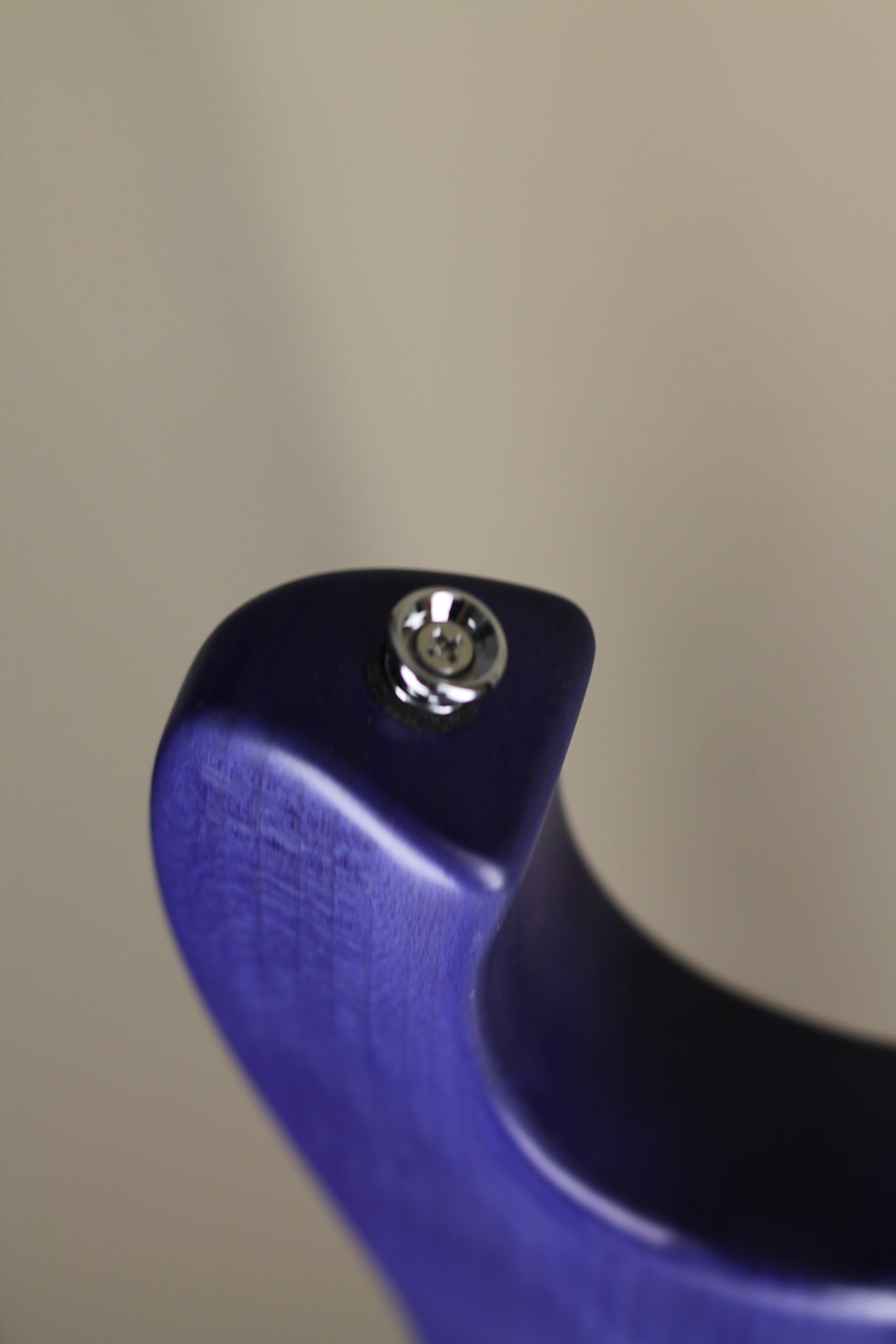

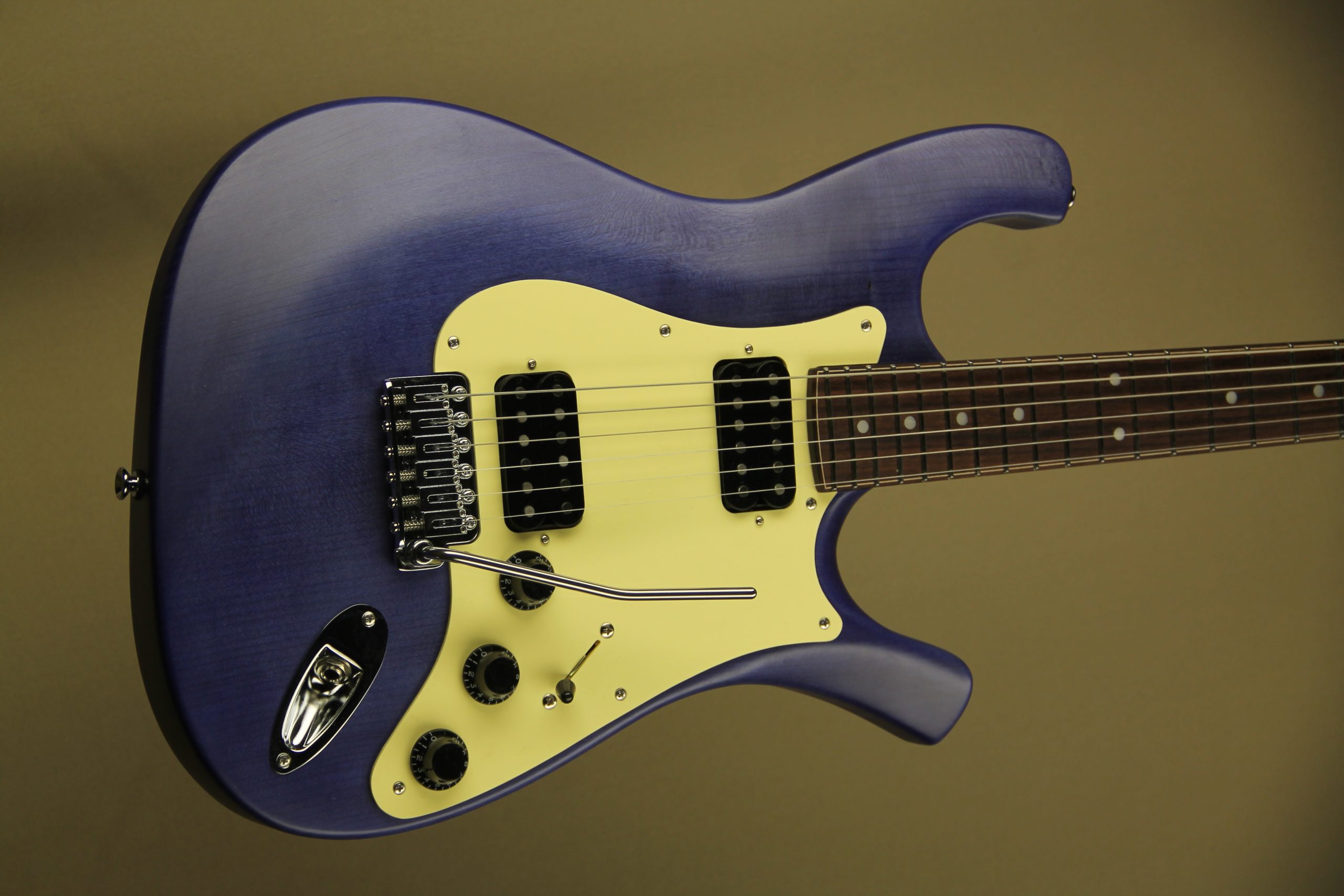

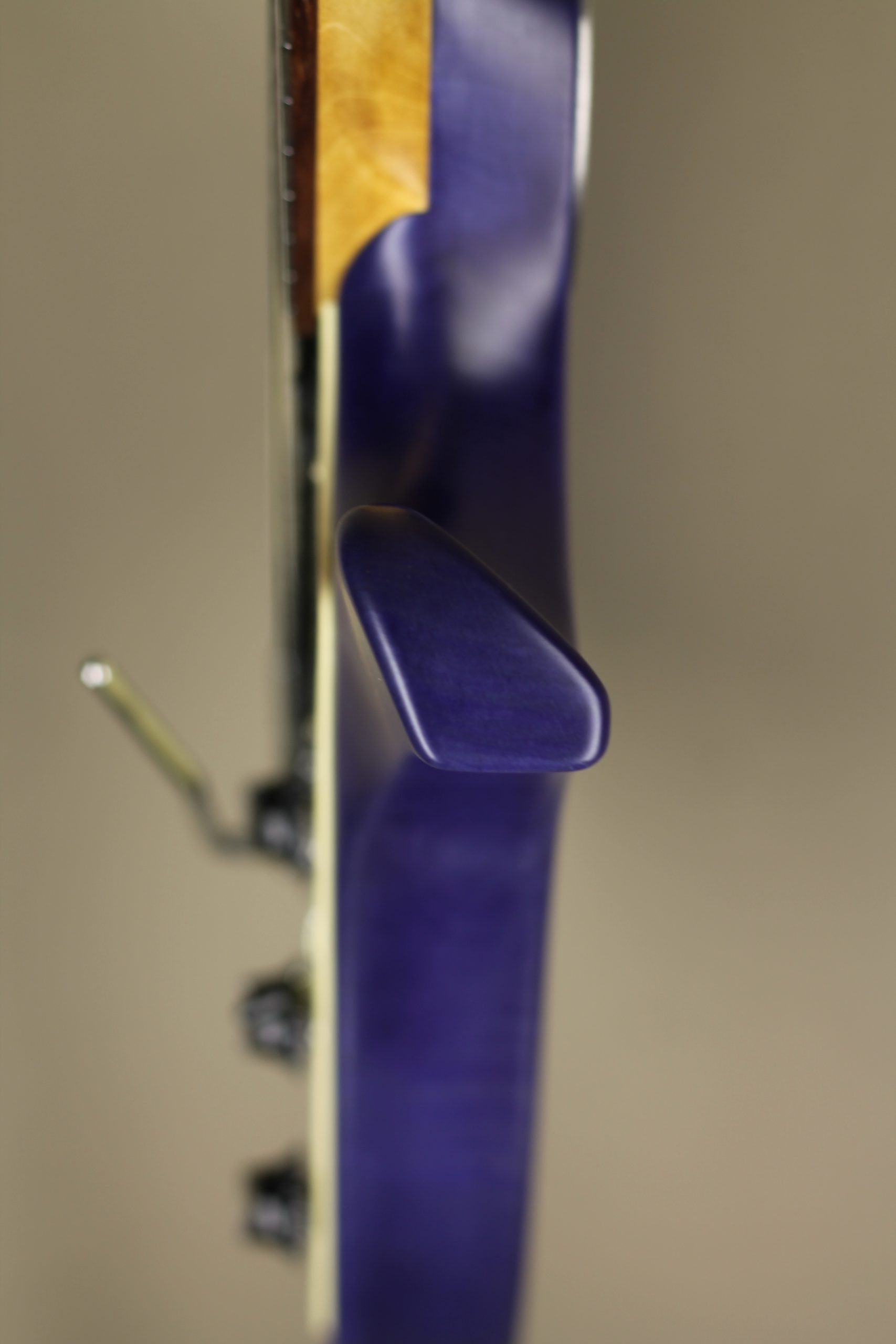

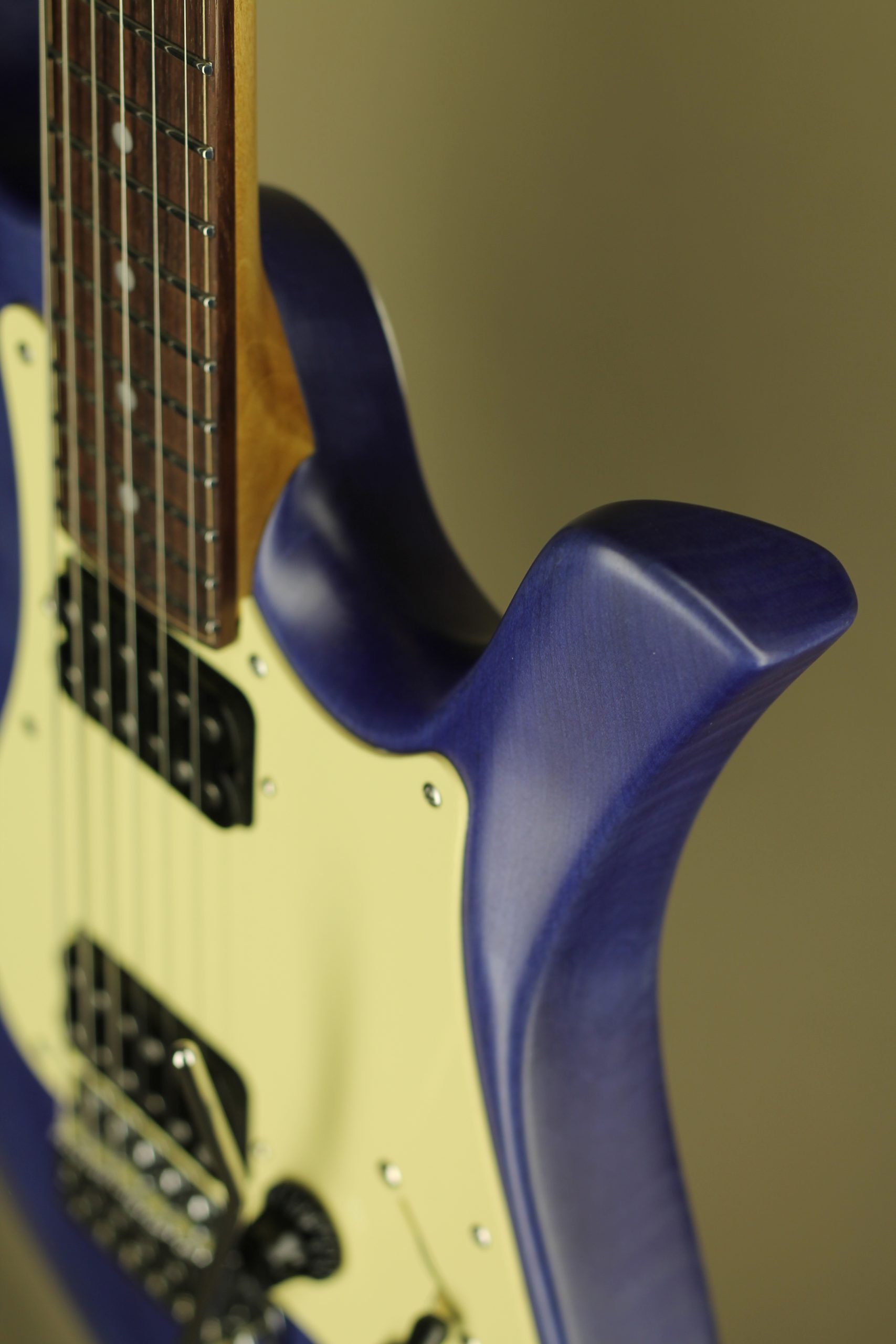

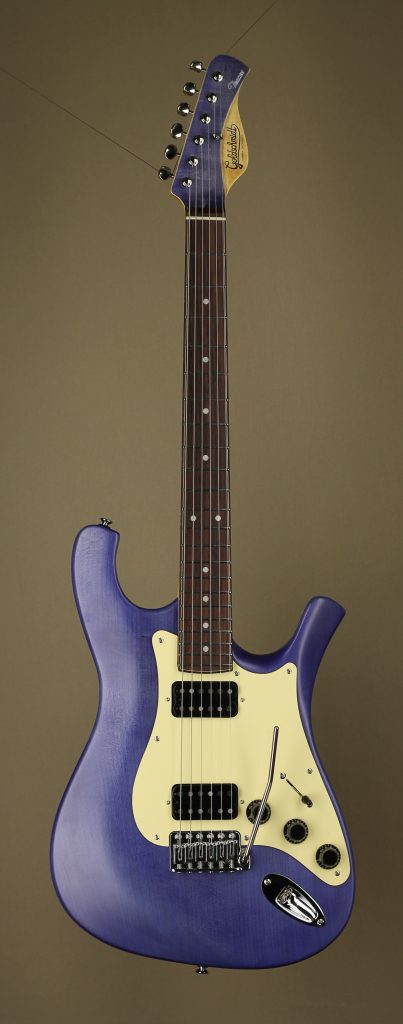

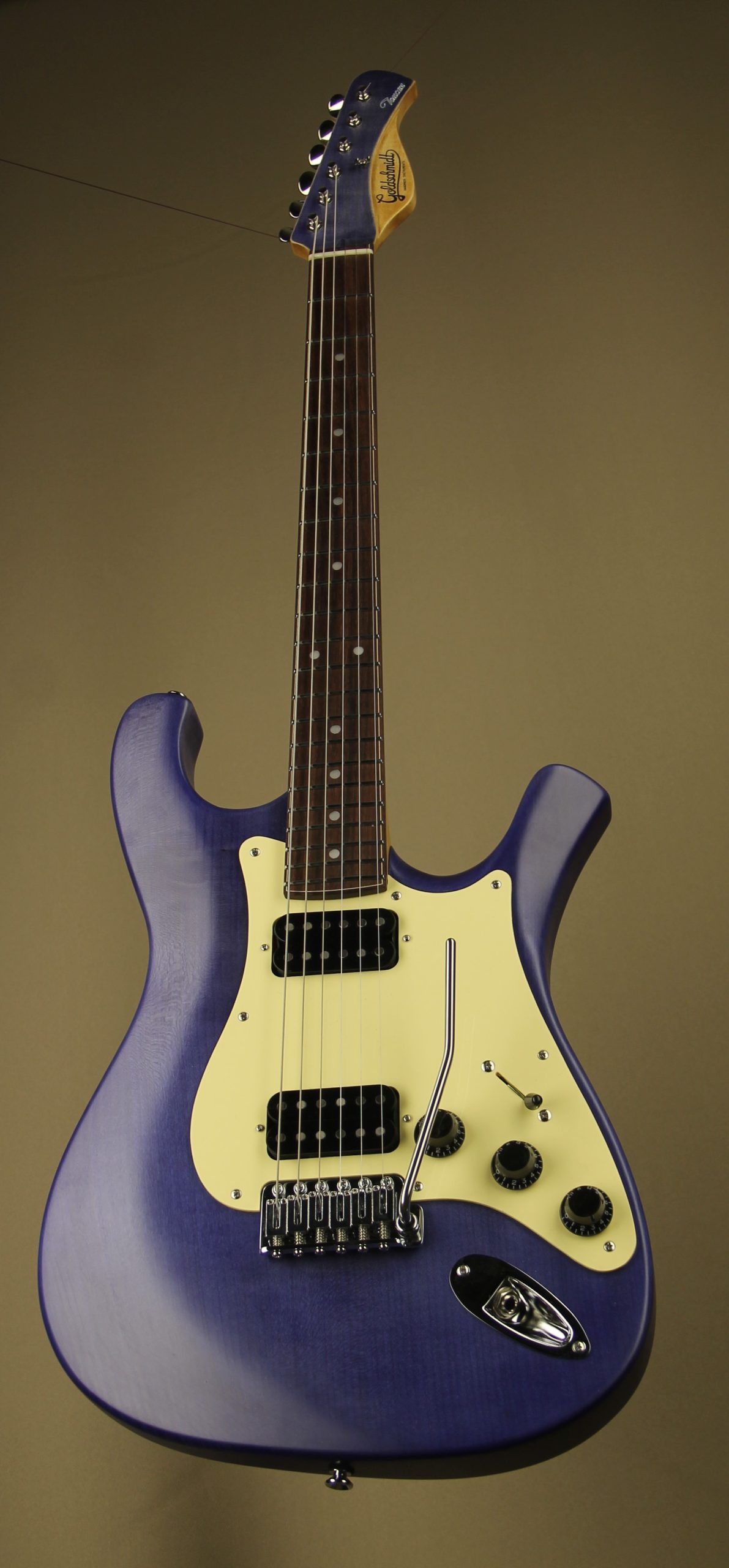

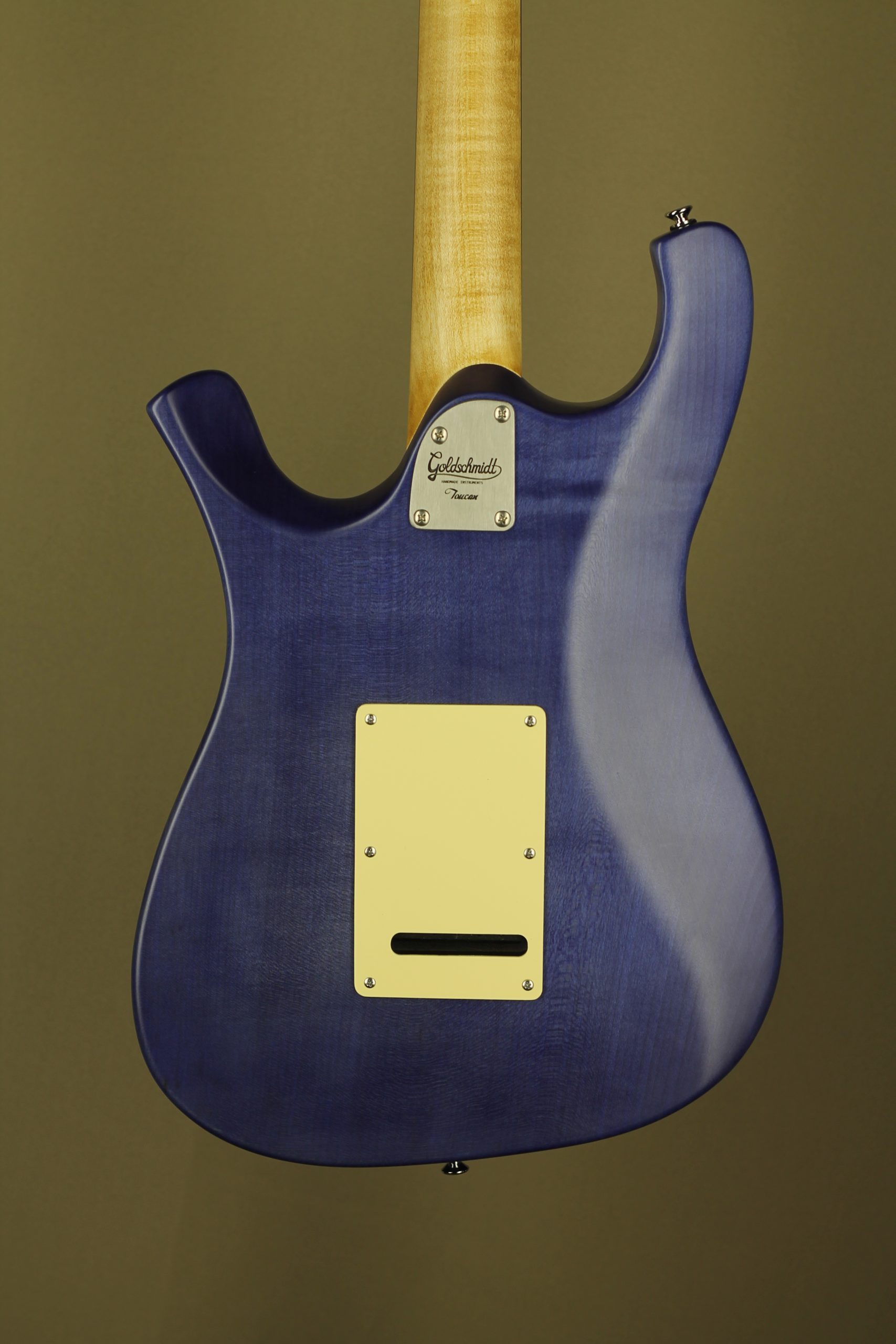

Toucan

The guitar I first designed somewhere in 2003. Now cleared my drafs, and made an ori-G model of it.

Standard specs:

• Neck: maple
• Fretboard: maple, ebony or rosewood
• Dimensions: 42,5 mm (1,67″) wide at nut, 21.5 mm (0,846″) deep at 1st fret, 23.5 mm (0,925″) deep at 12th fret, „C” shape, rolled off edges
• Frets: 22, Stainless steel, jumbo (Jescar 57110)
• Fingerboard radius: 9-12” compound
• Scale length 648 mm (25 ”)
• Nut: Bone
• Trussrod: double acting

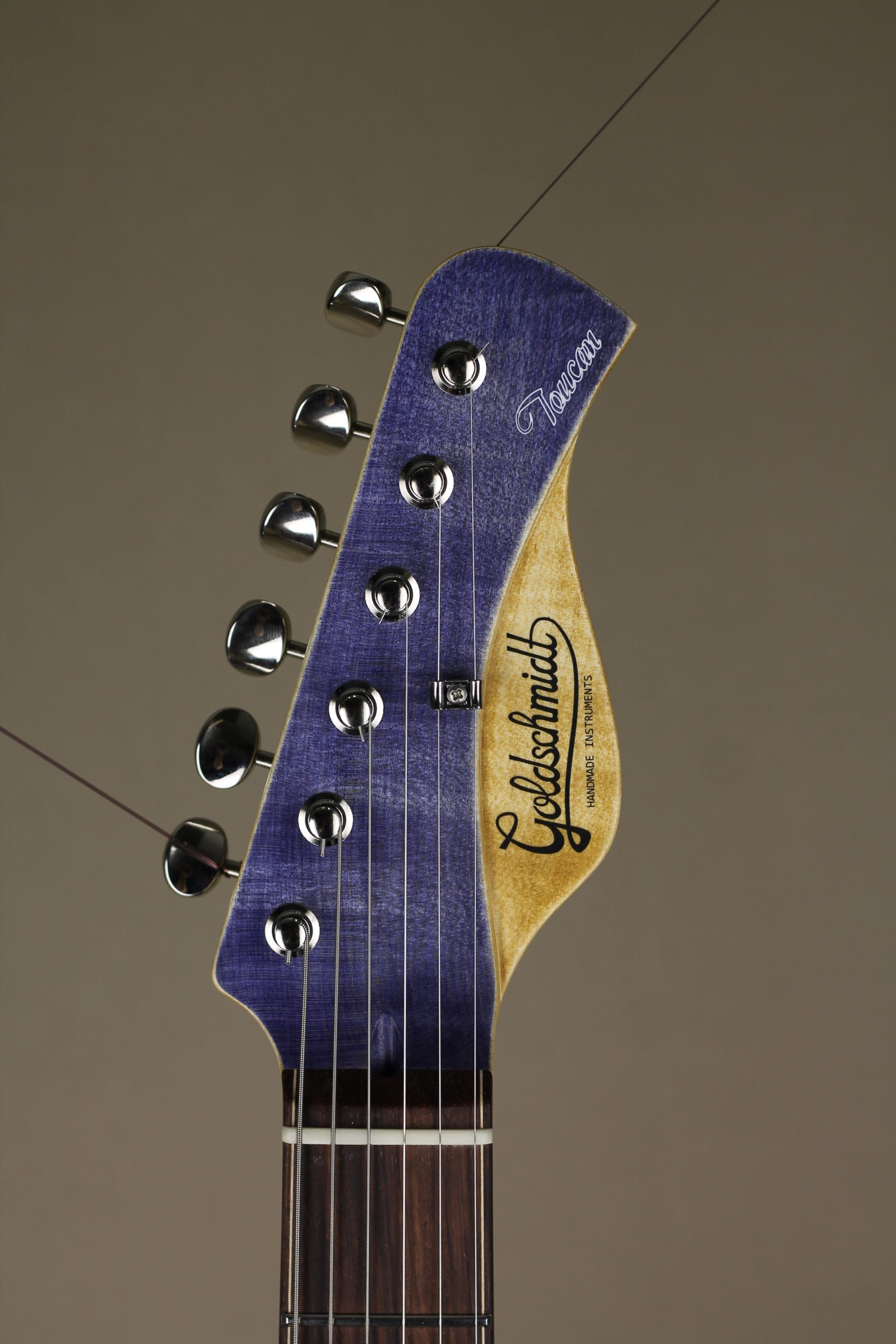

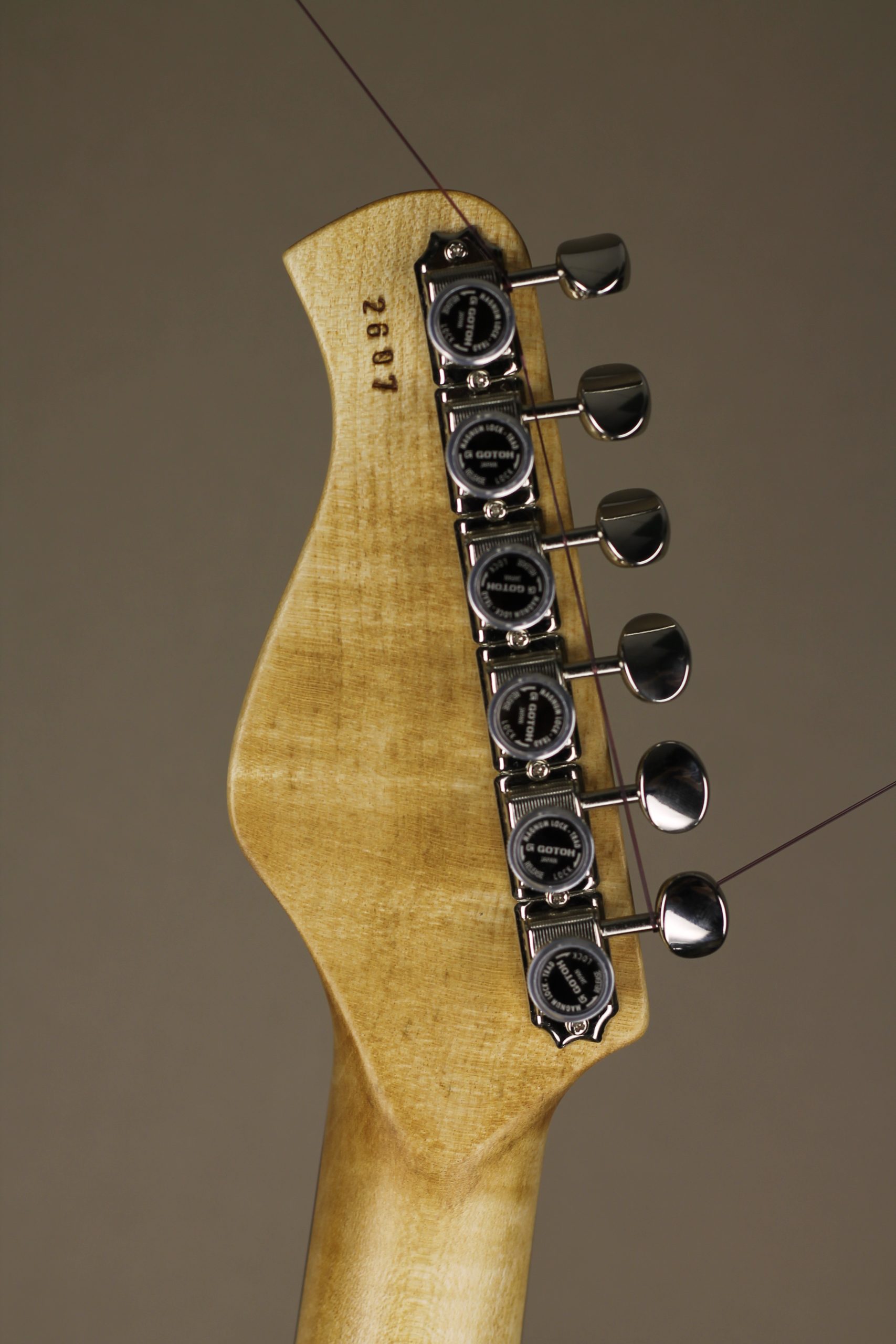

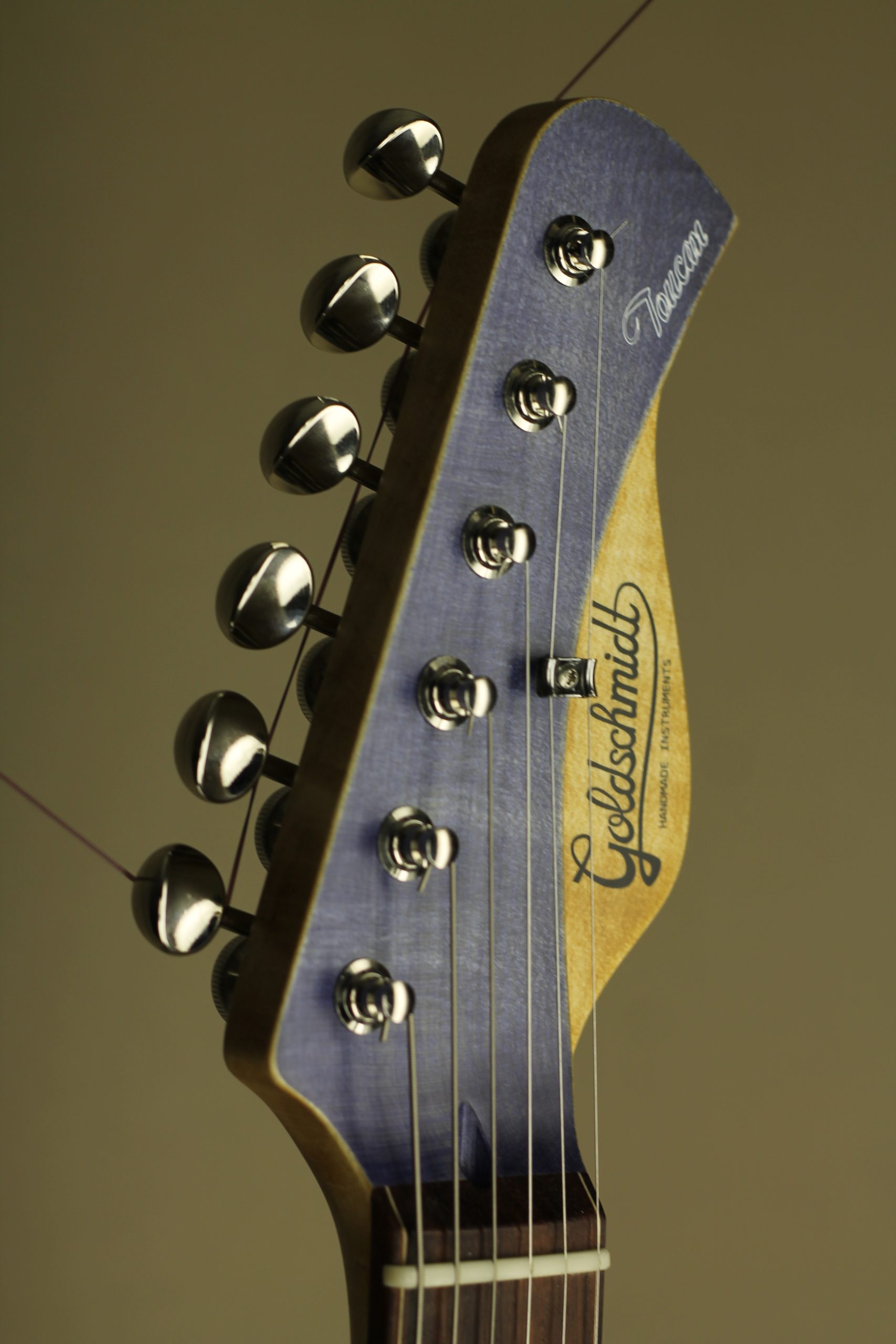

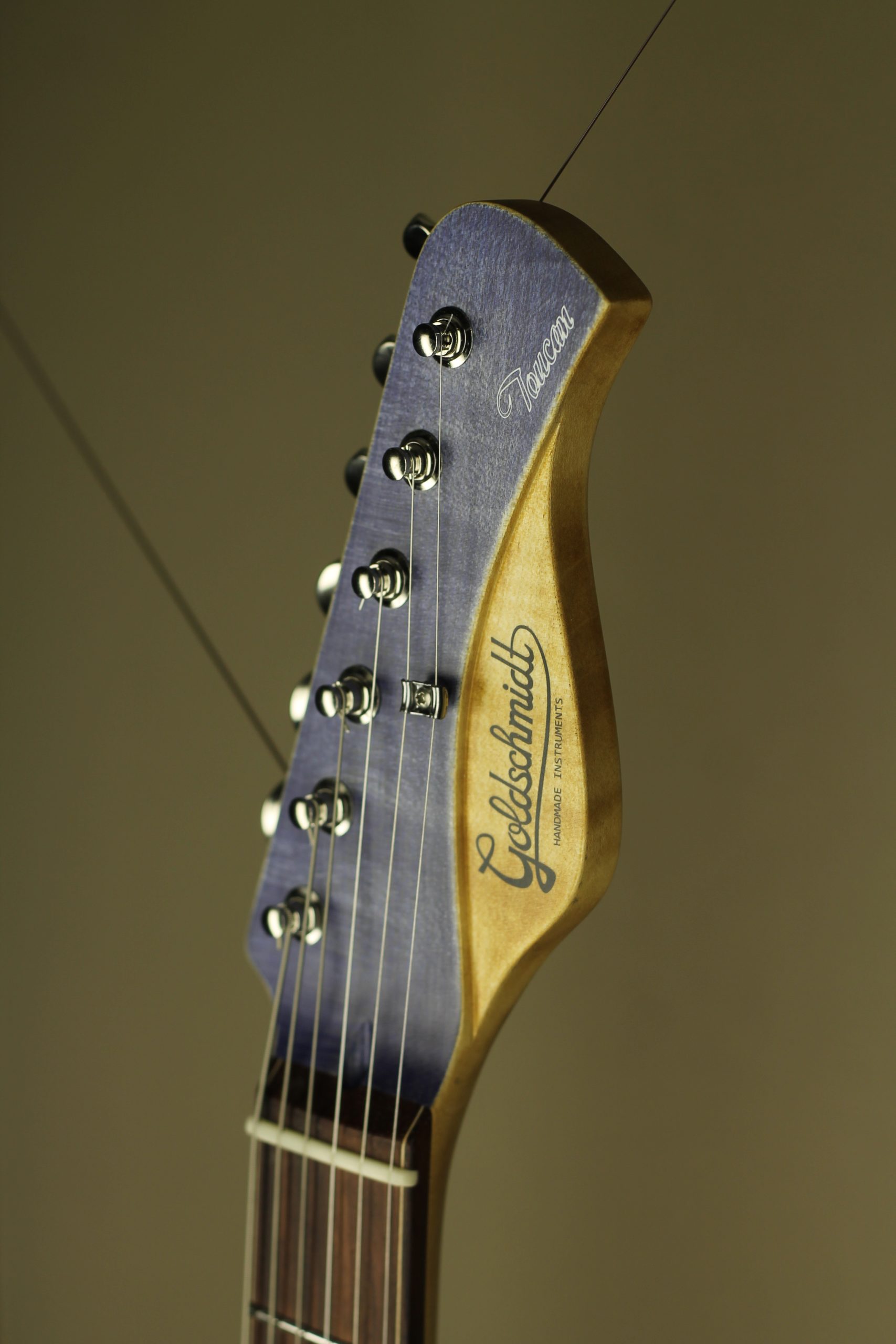

• Tuners: Gotoh
• Neck Finish: satin urethane

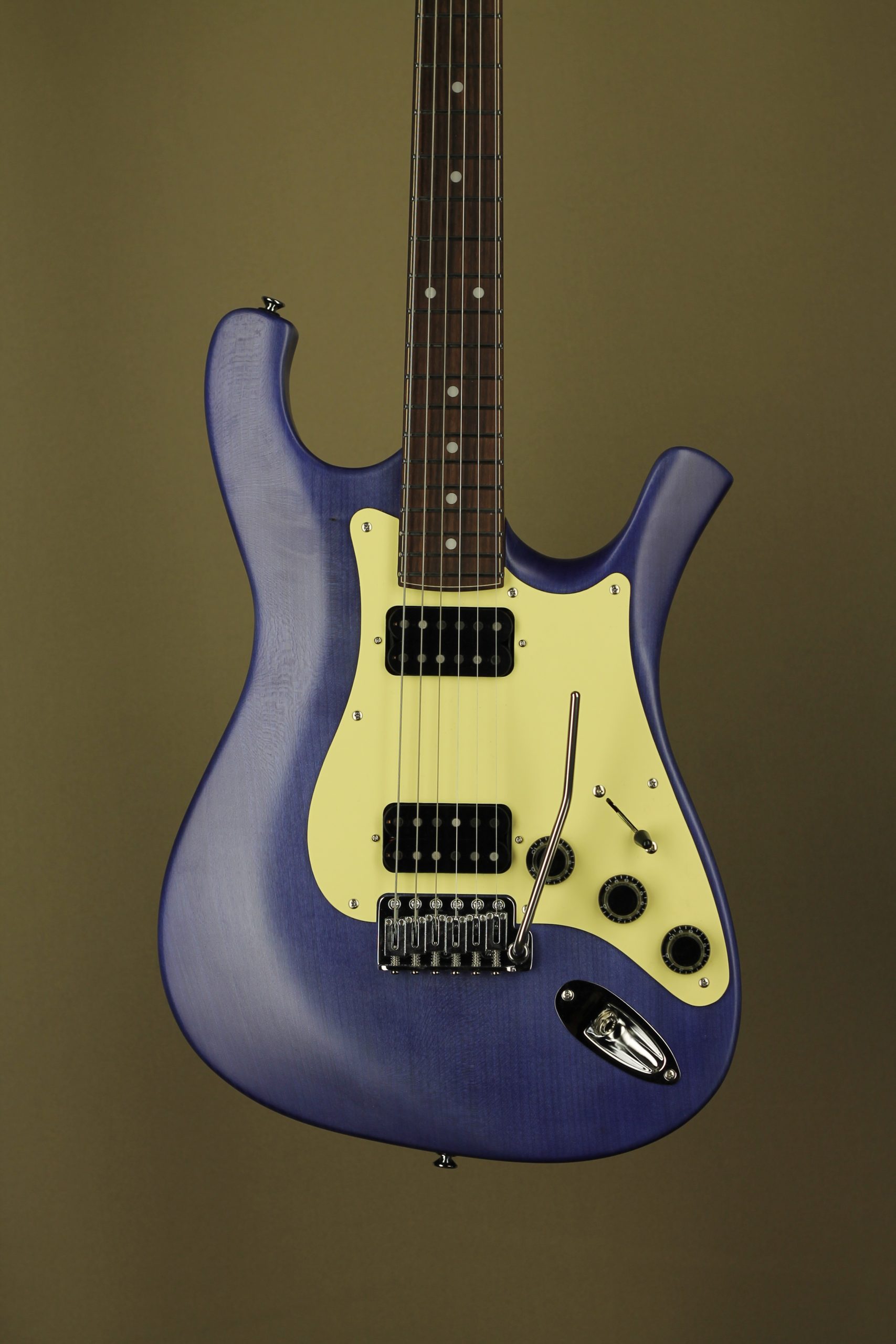

• Body: Basswood, alder, mahogany with or without a maple top

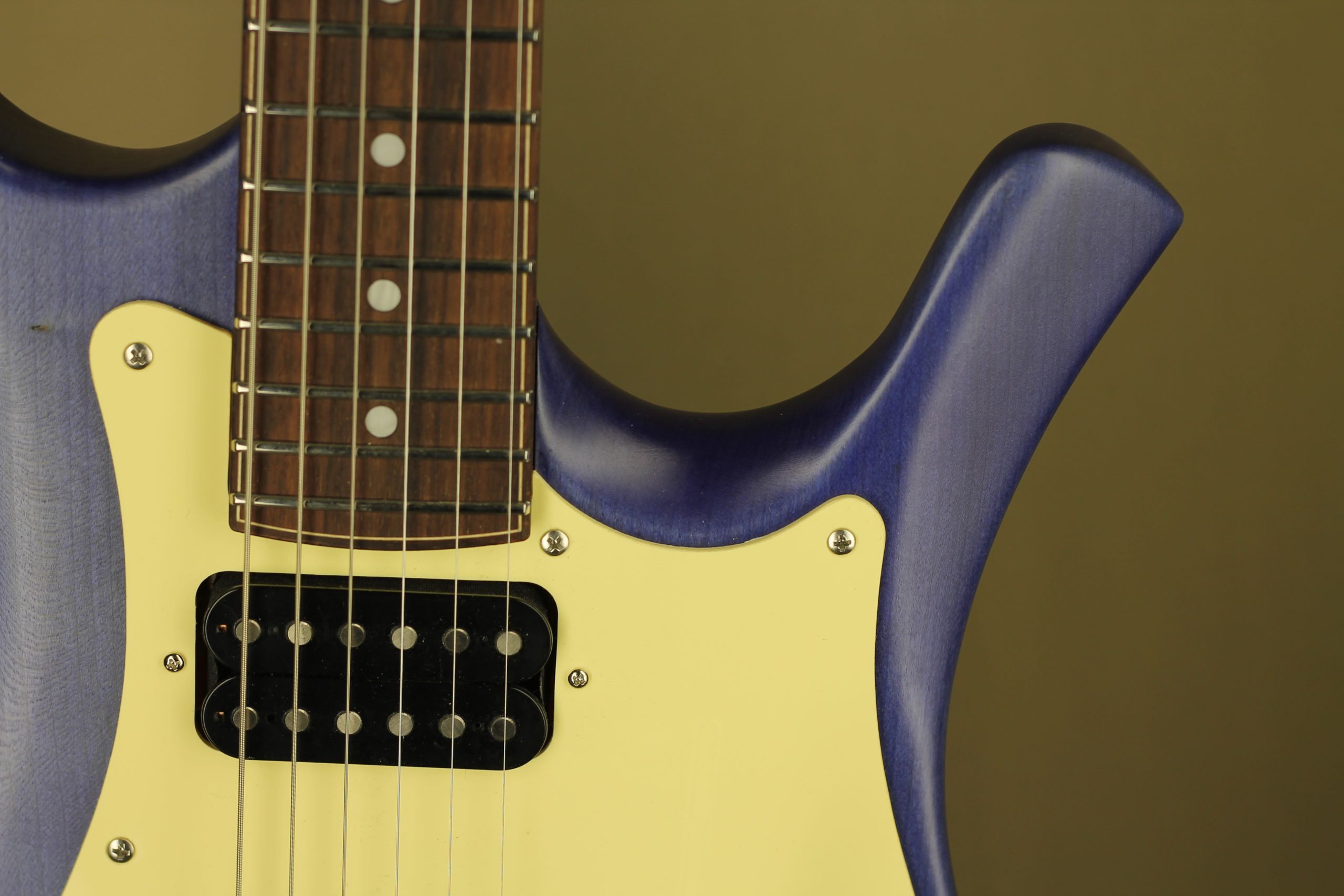

• Pickups: Goldschmidt Breath neck (6.53 kOhm), Breath bridge (7.27 kOhm), PAF style
• Electronics: 3 way Switchcraft switch, Volume, 2xTone, orange drop capacitors,  CTS pots

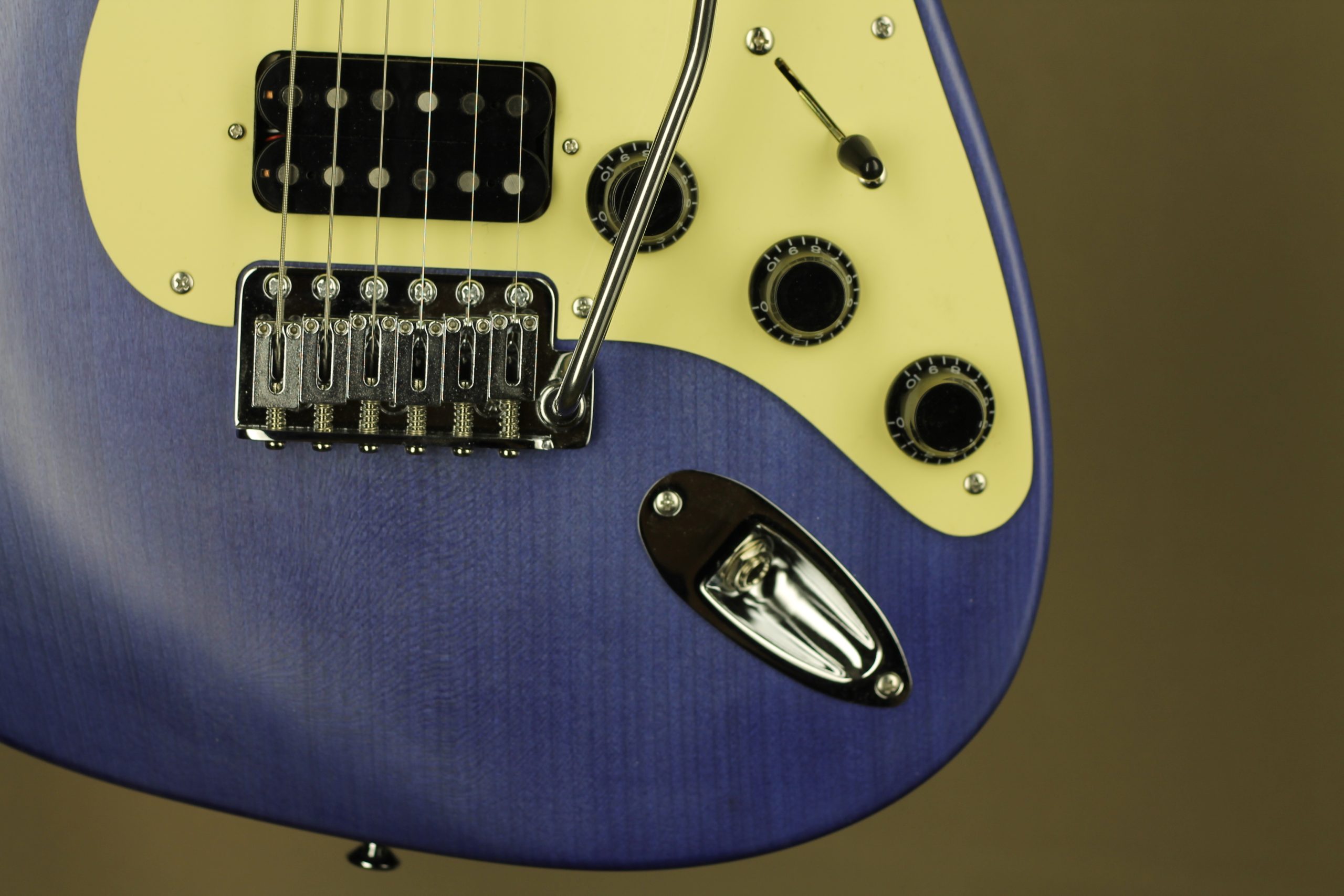

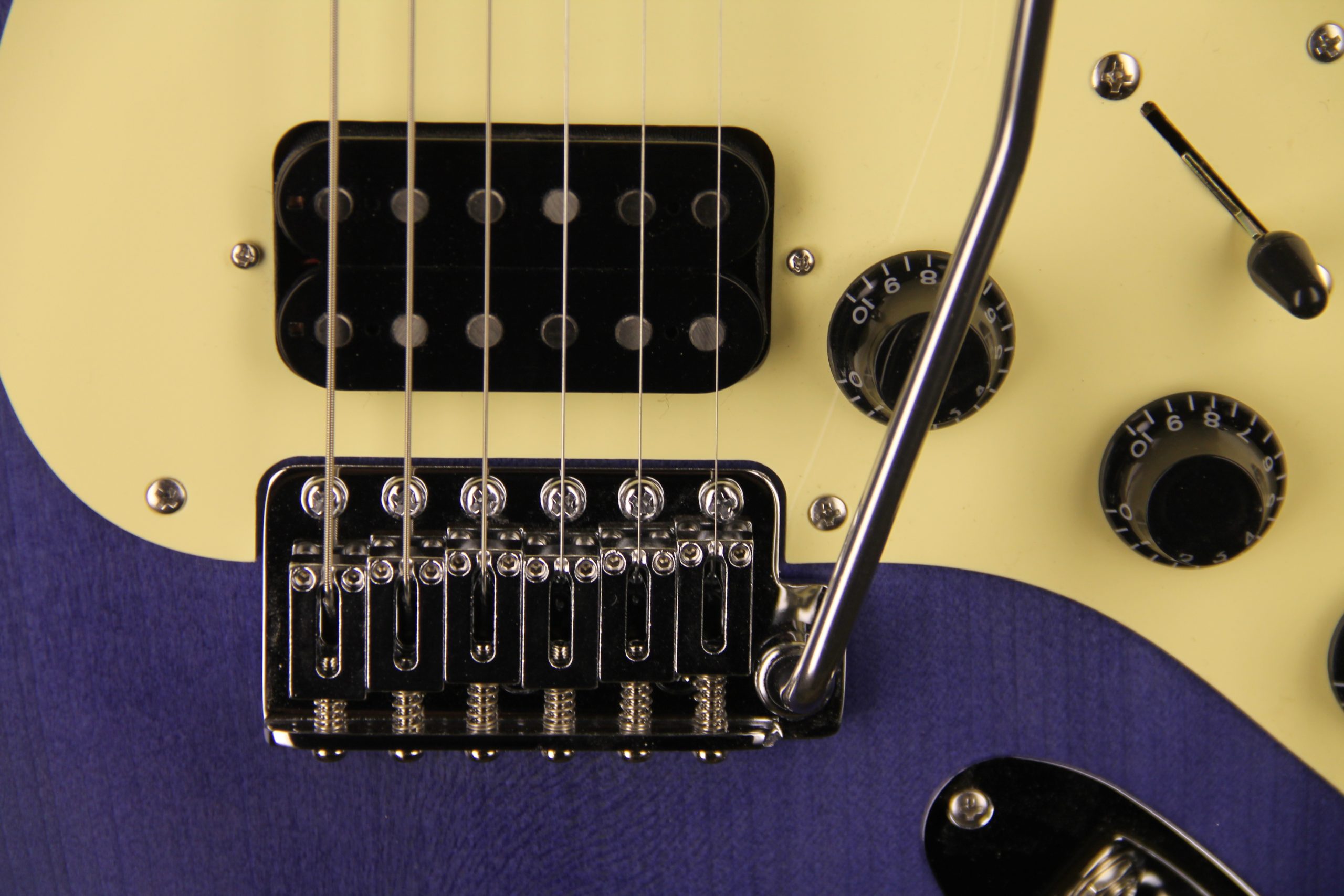

• Bridge: Gotoh 510
• Body Finish: all gloss nitro or satin urethane
• Weight: approx. 3 kgs (6.7lbs)
