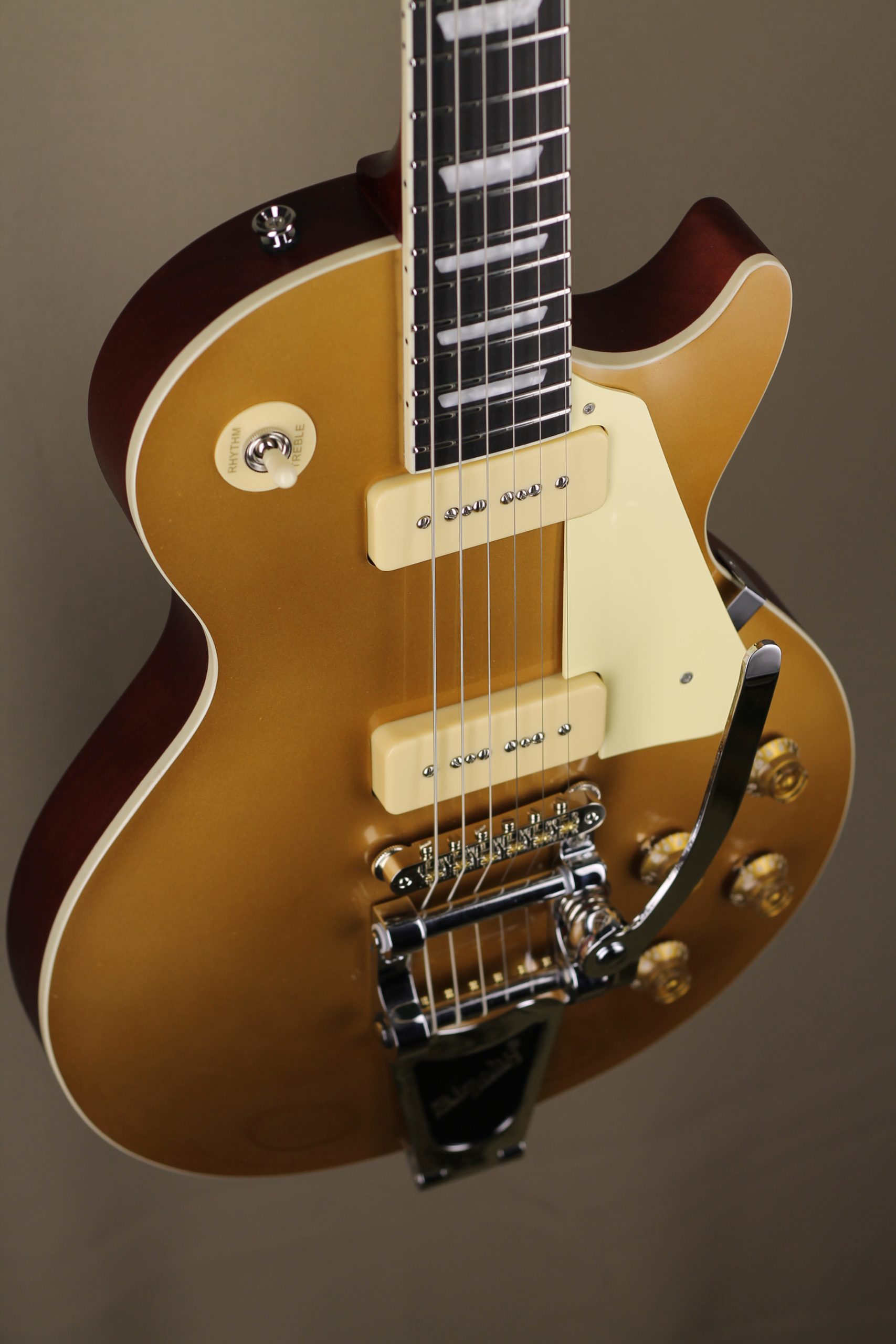

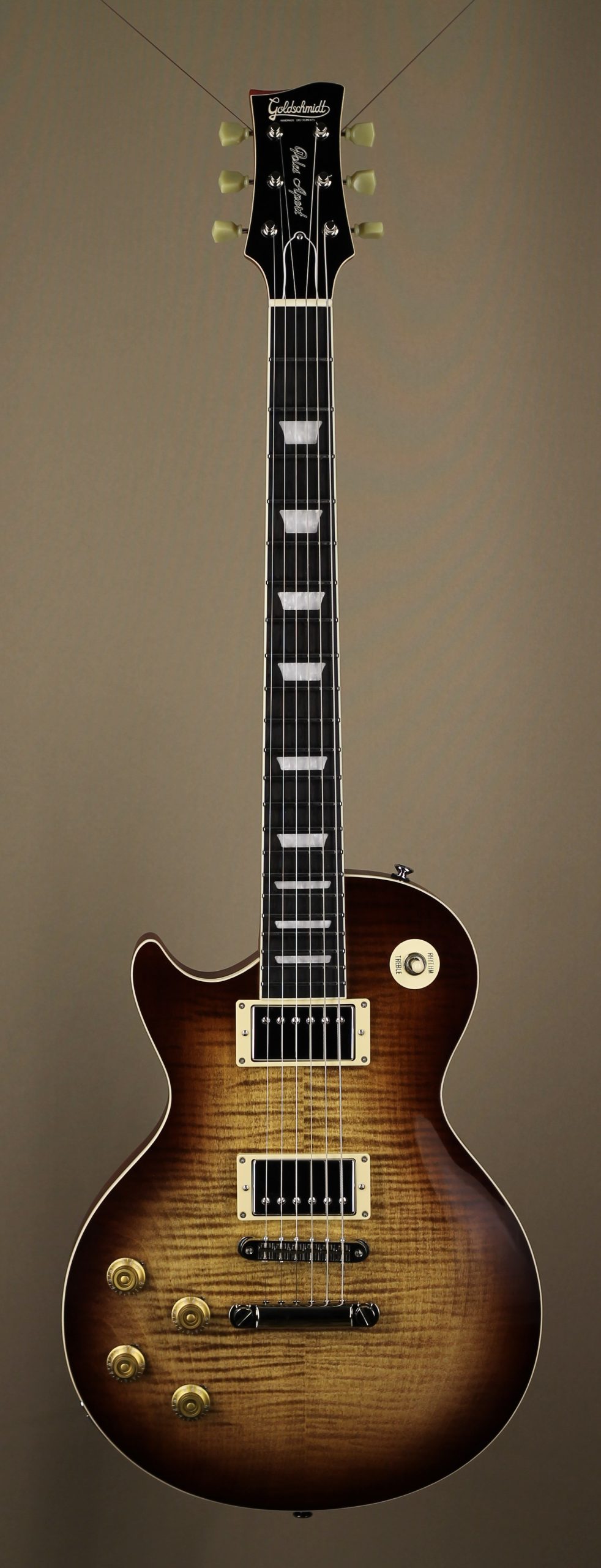

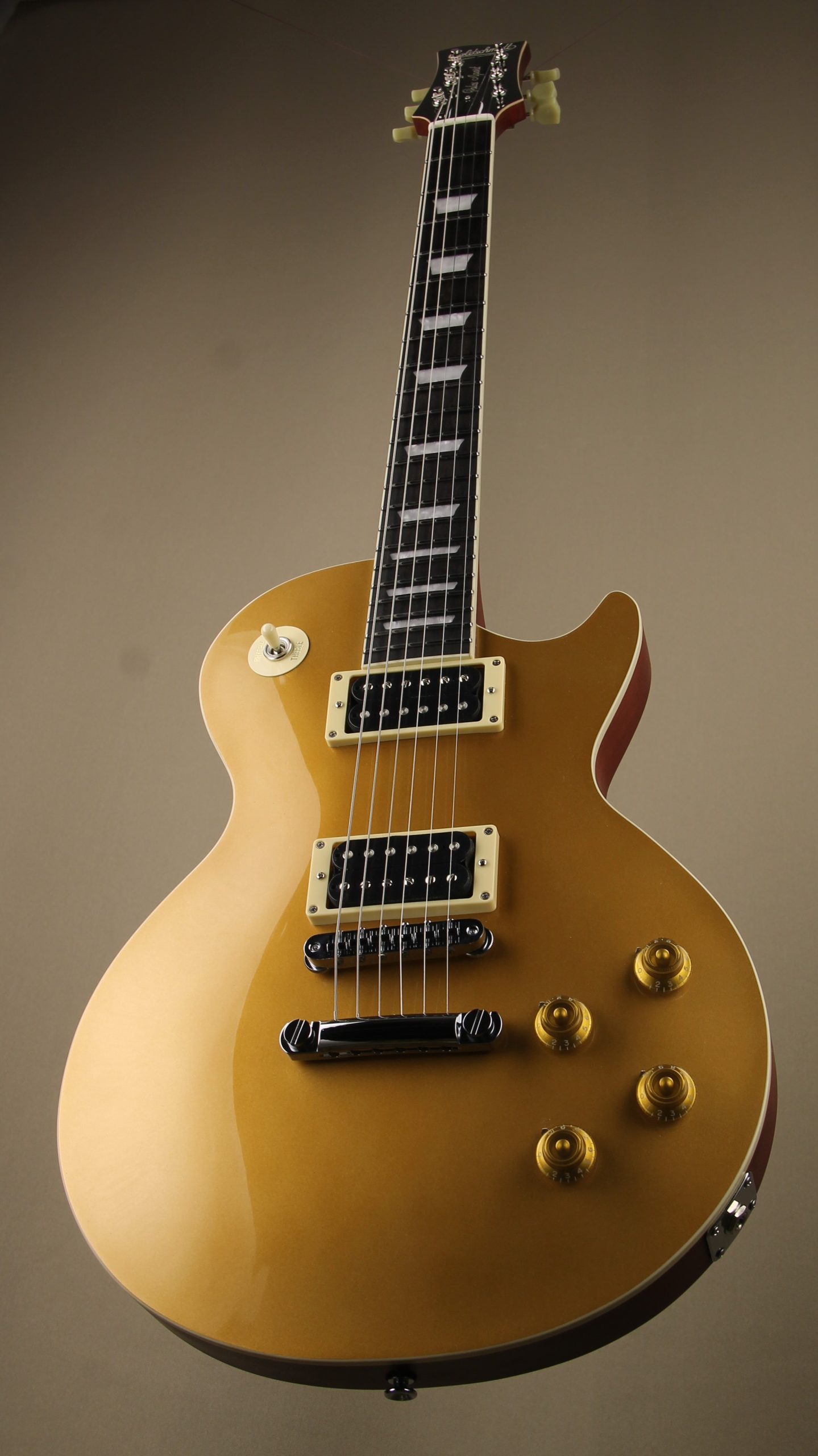

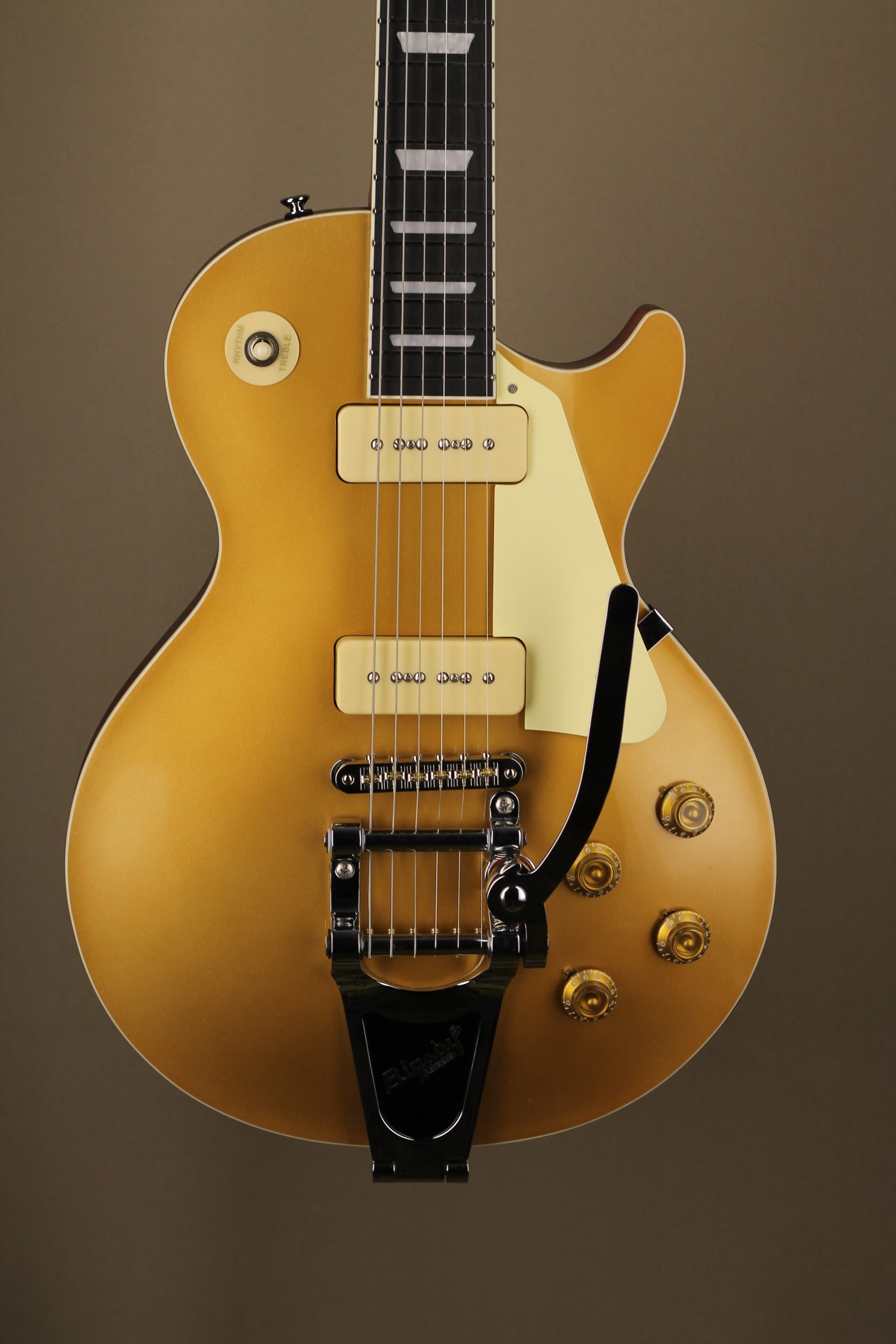

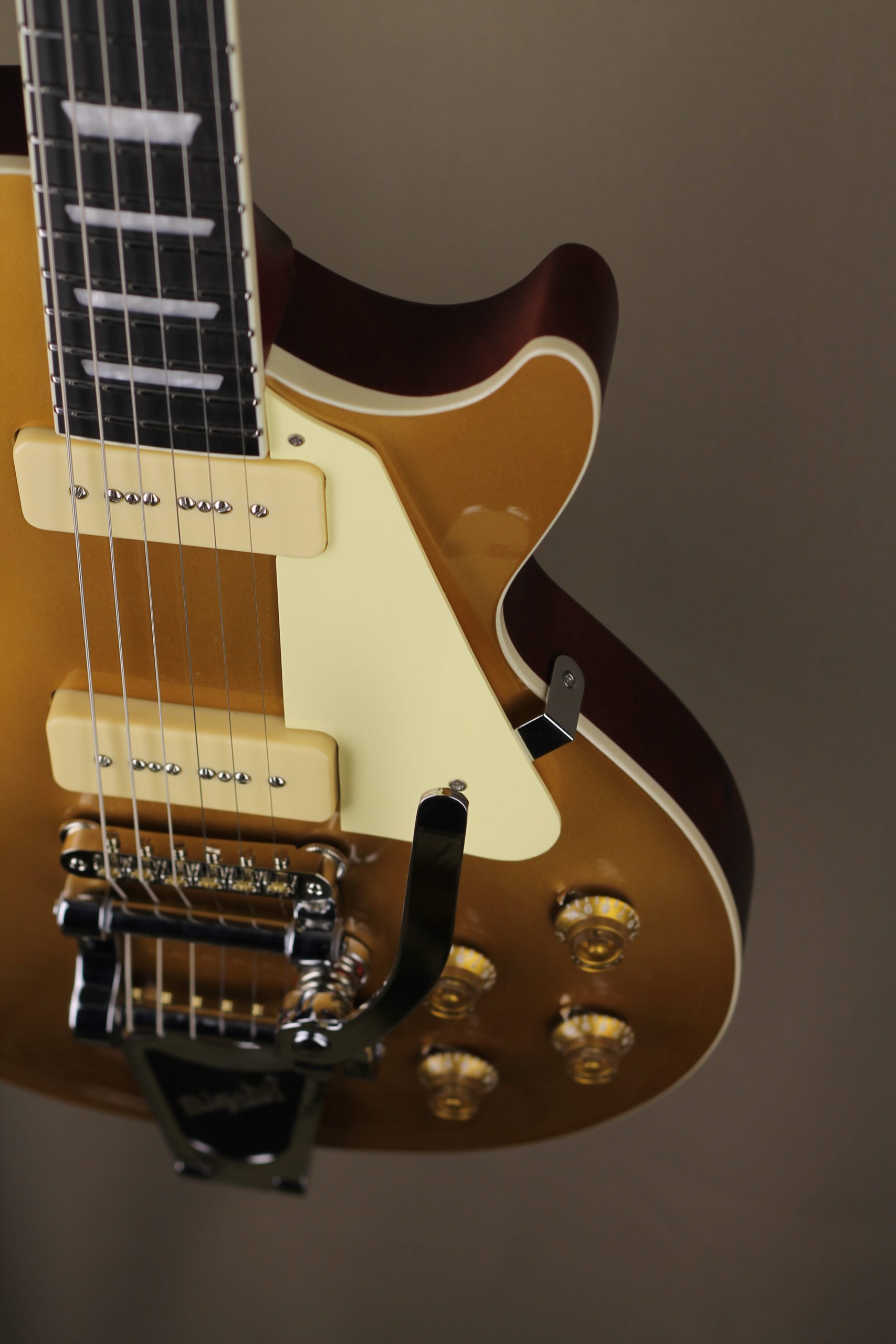

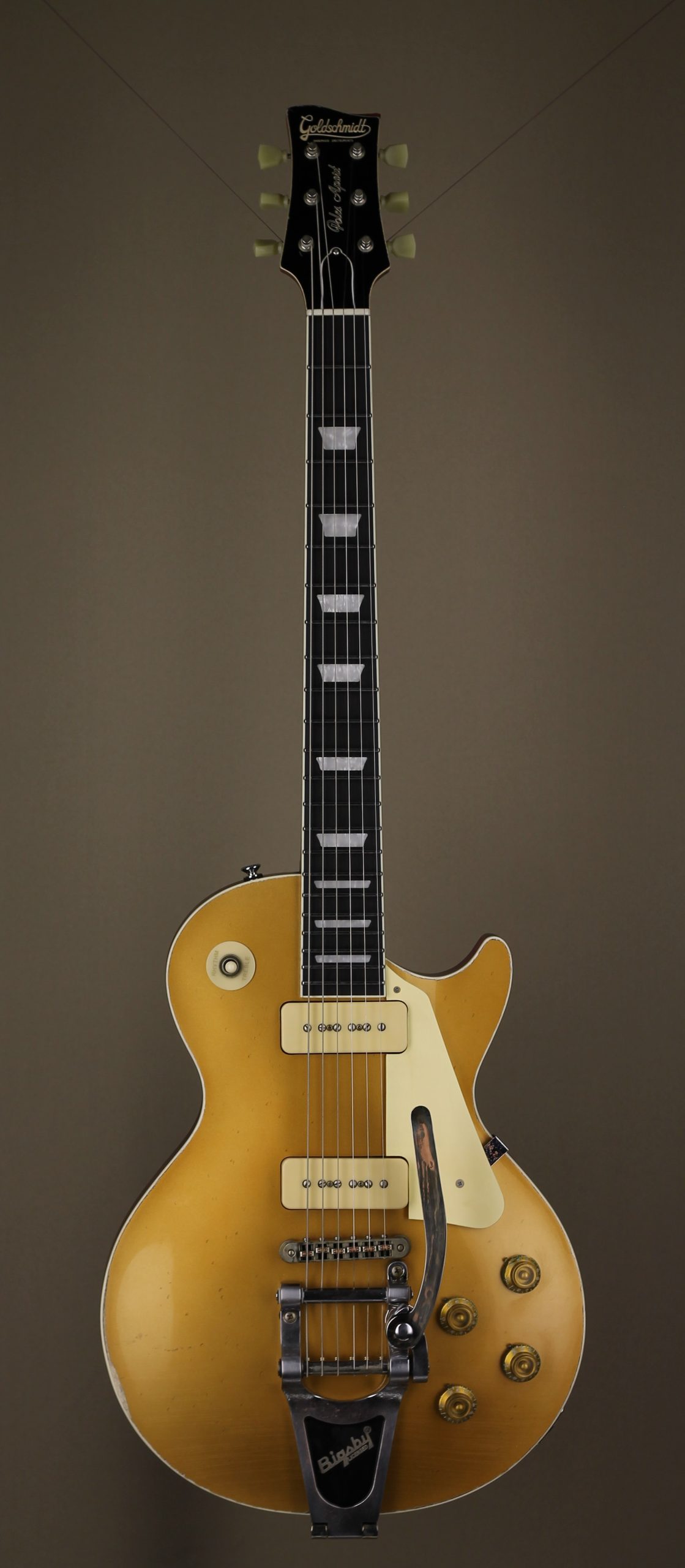

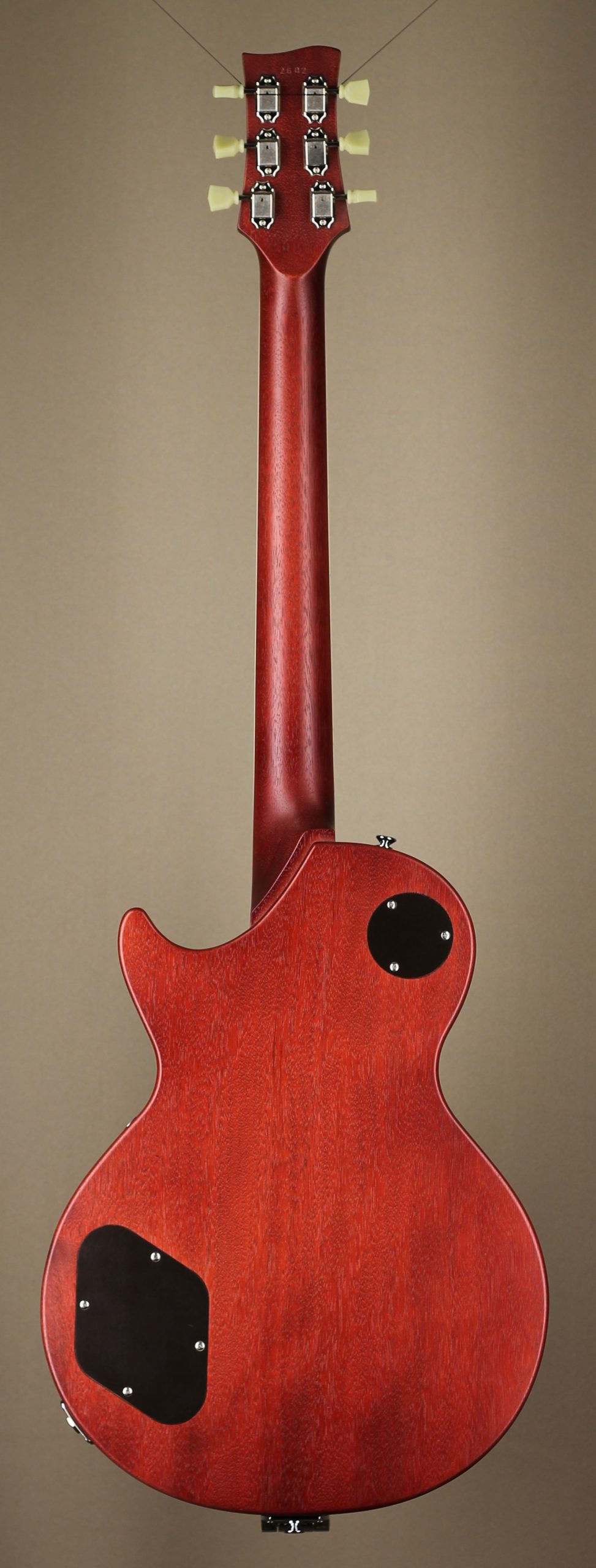

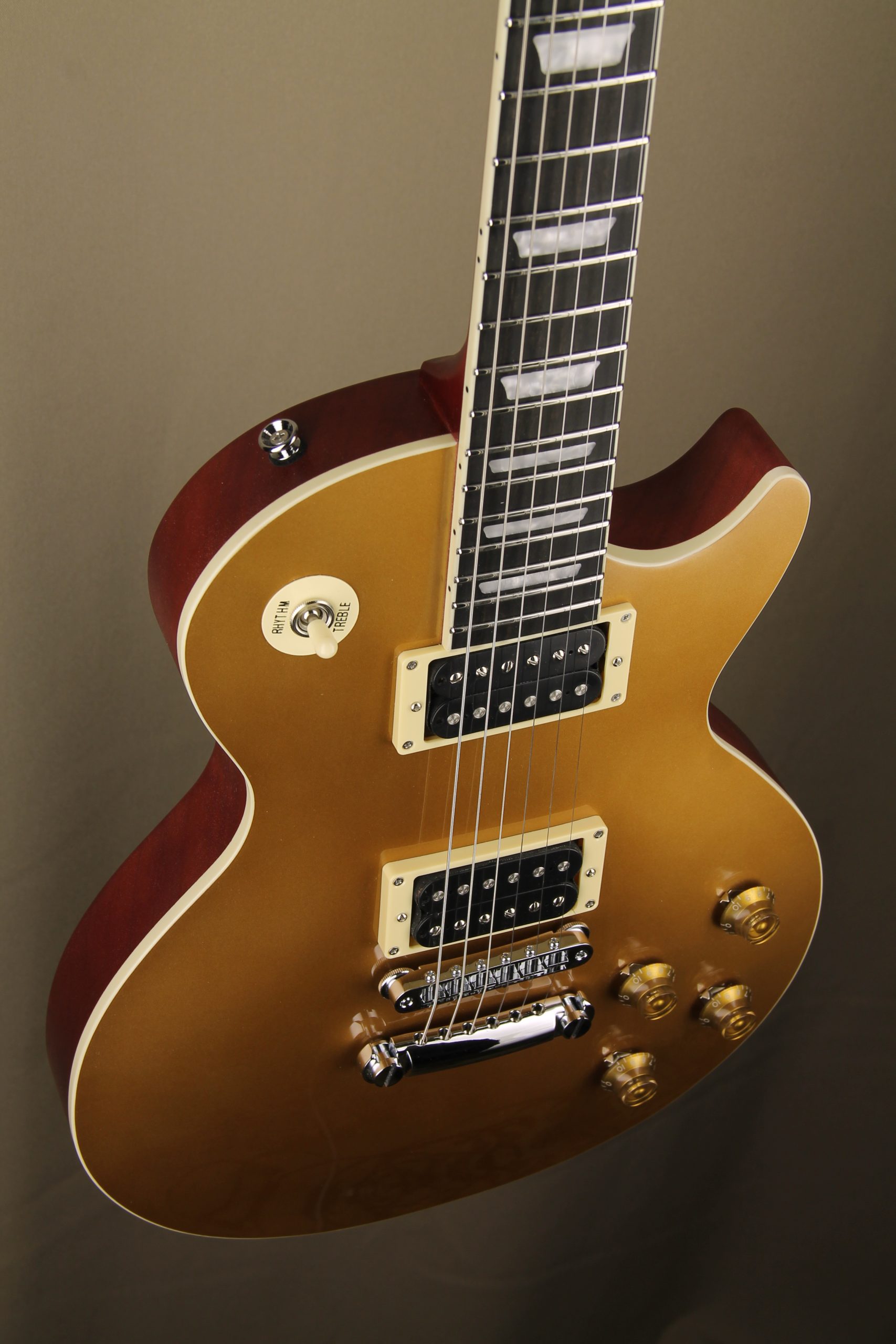

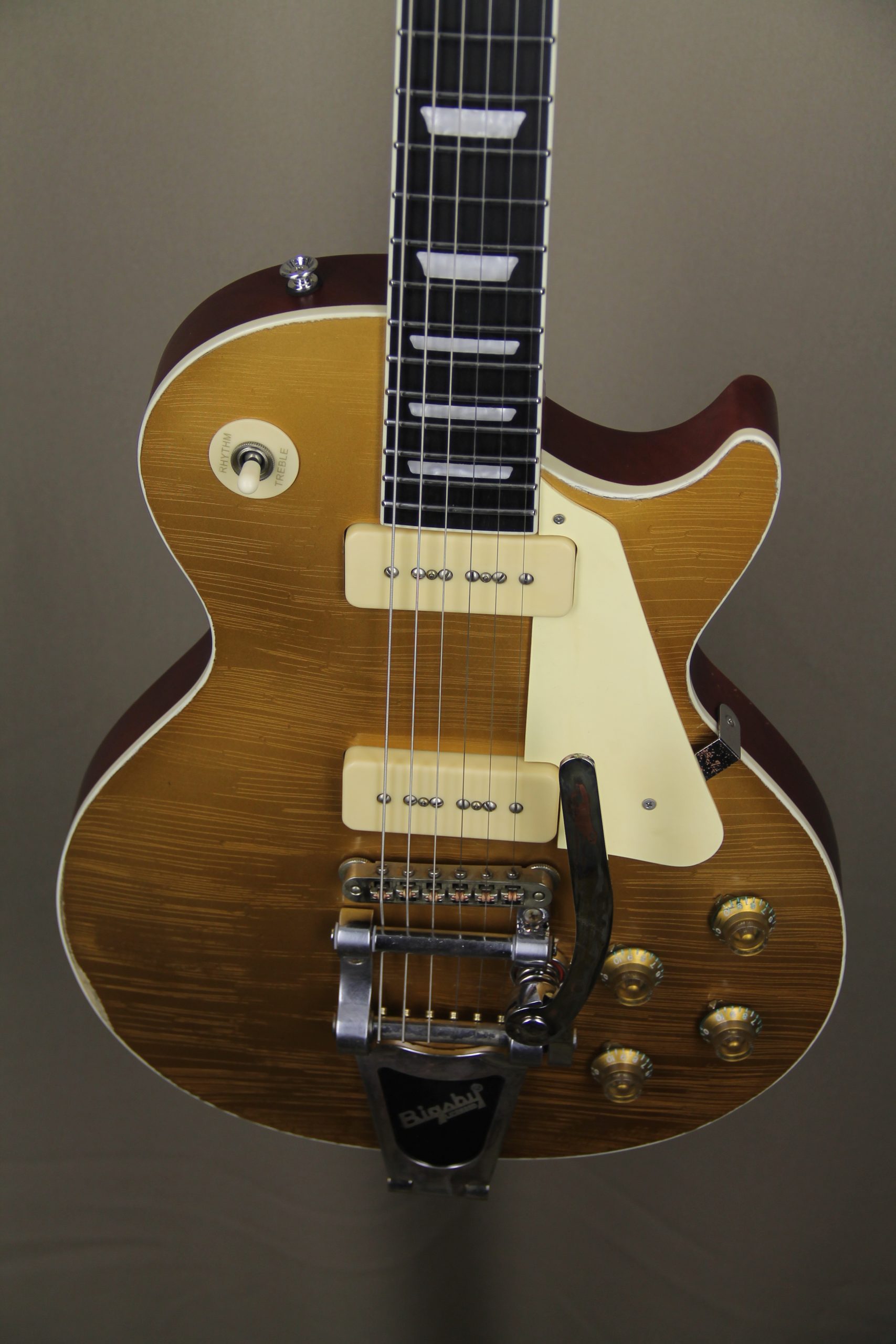

POLES APART

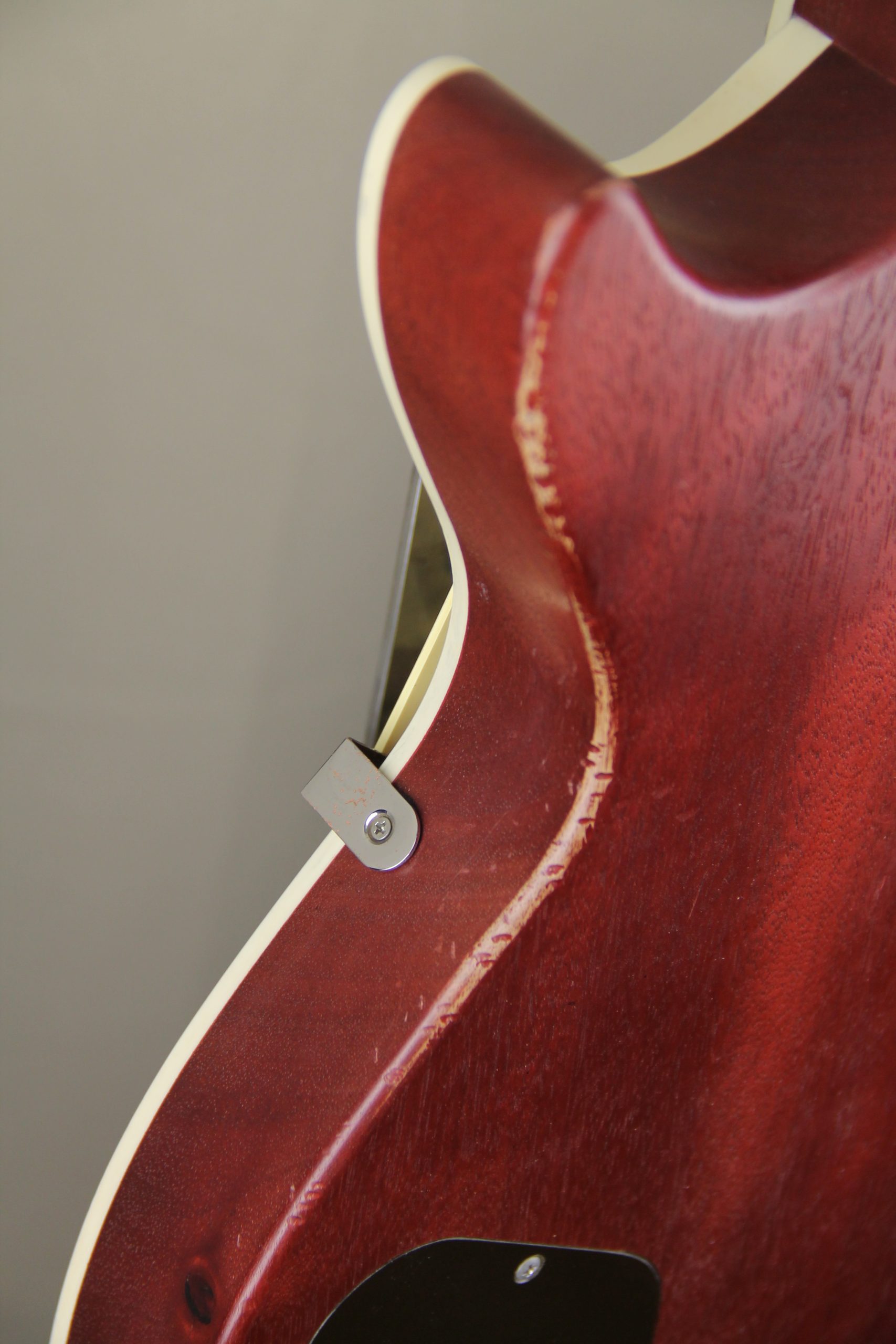

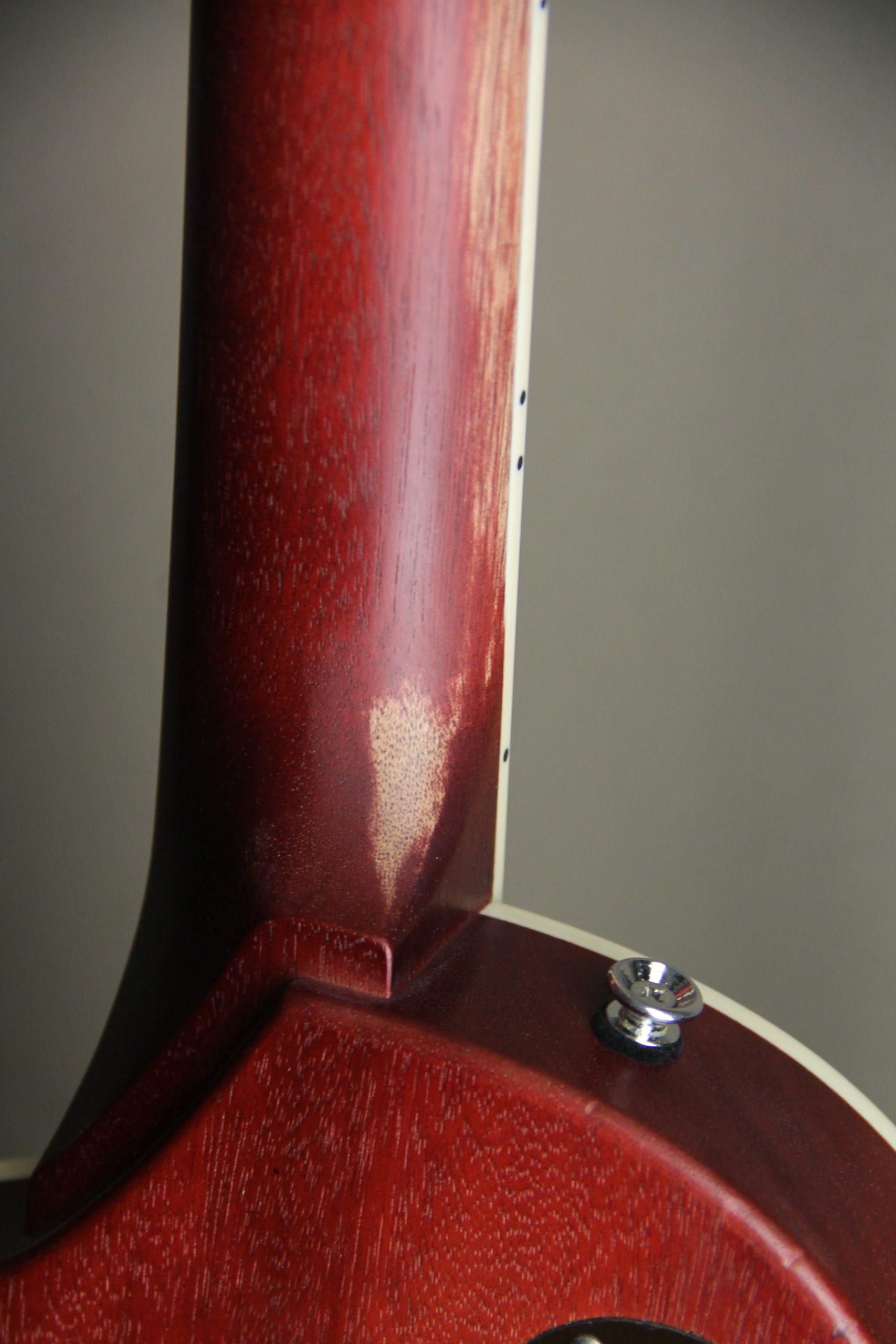

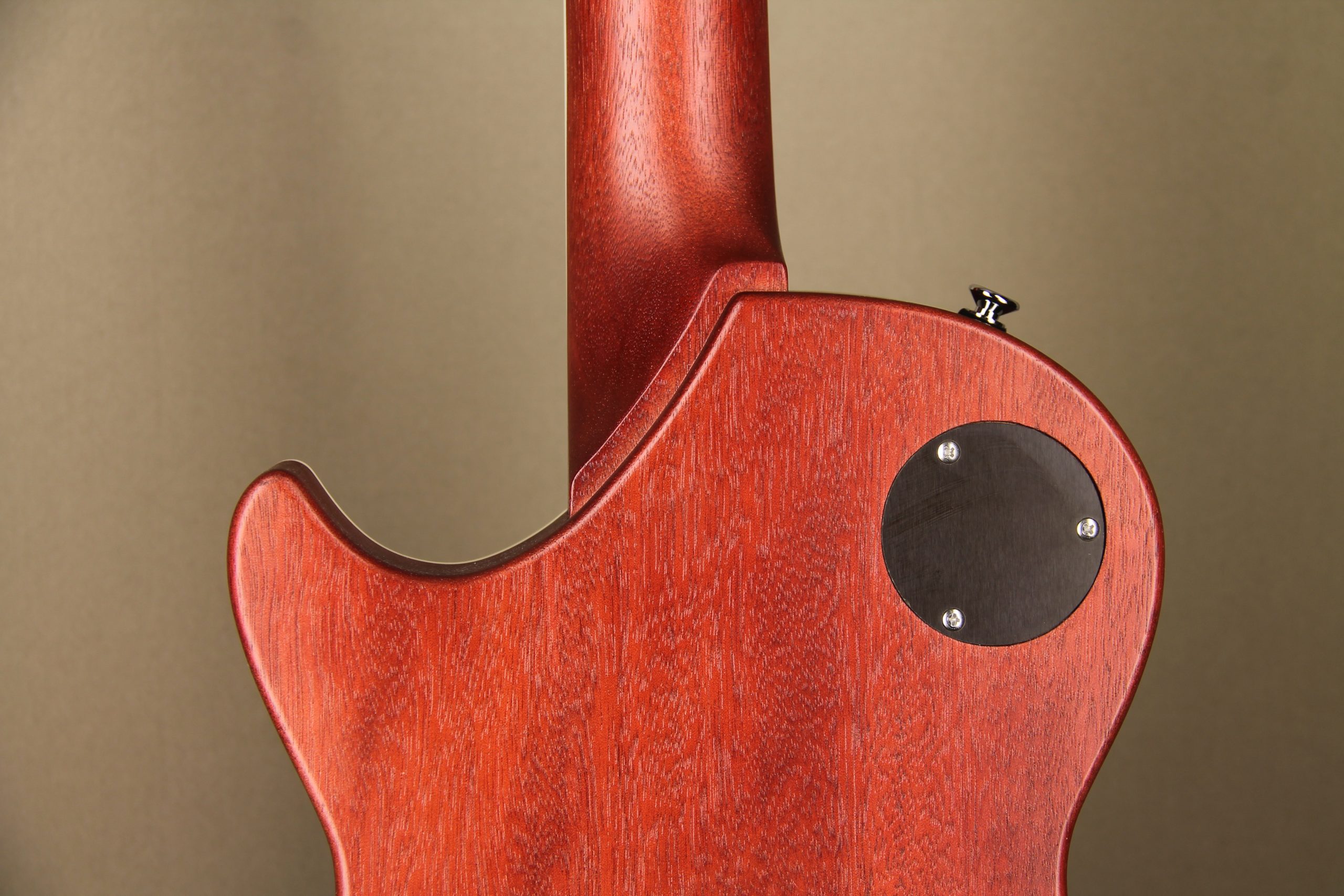

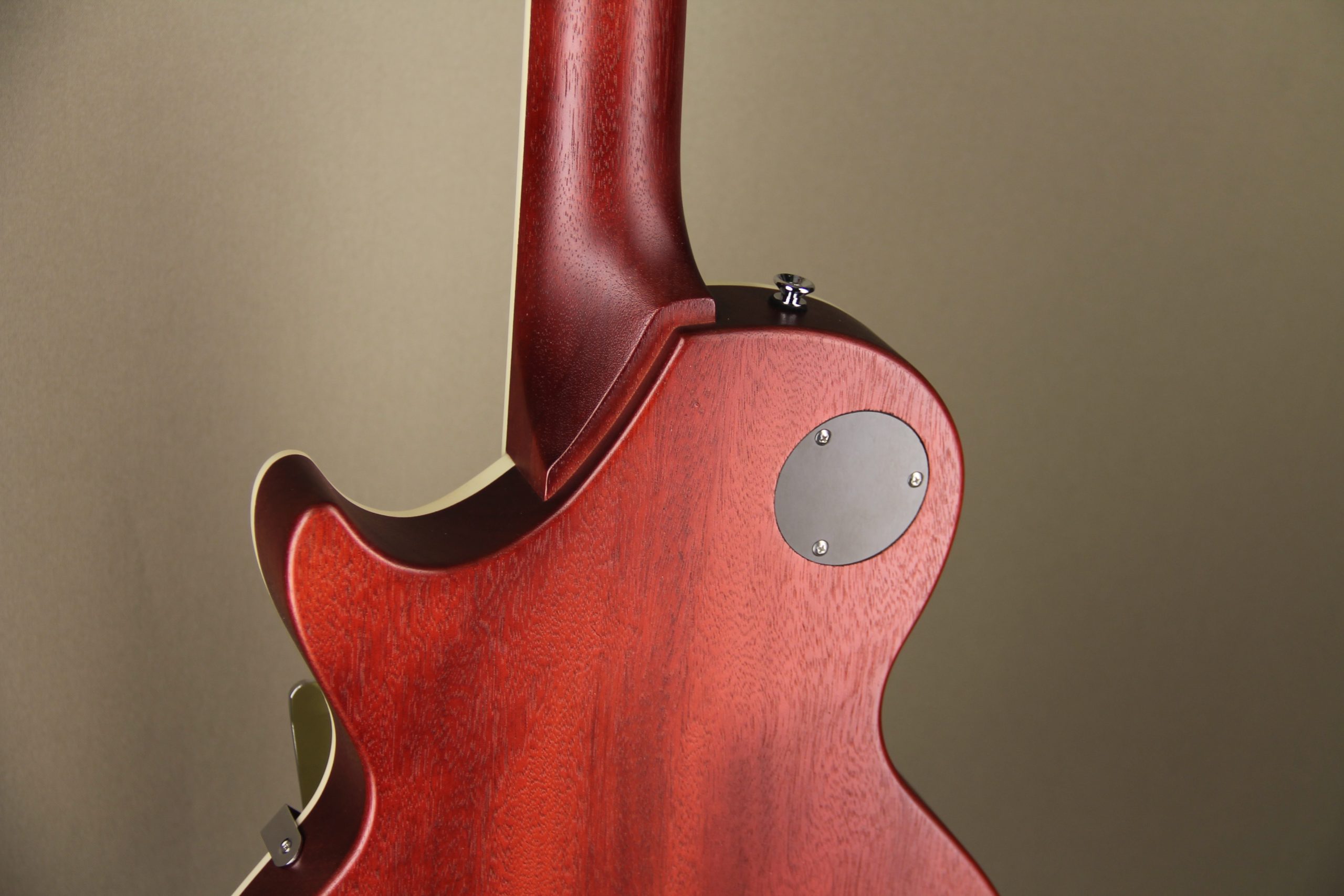

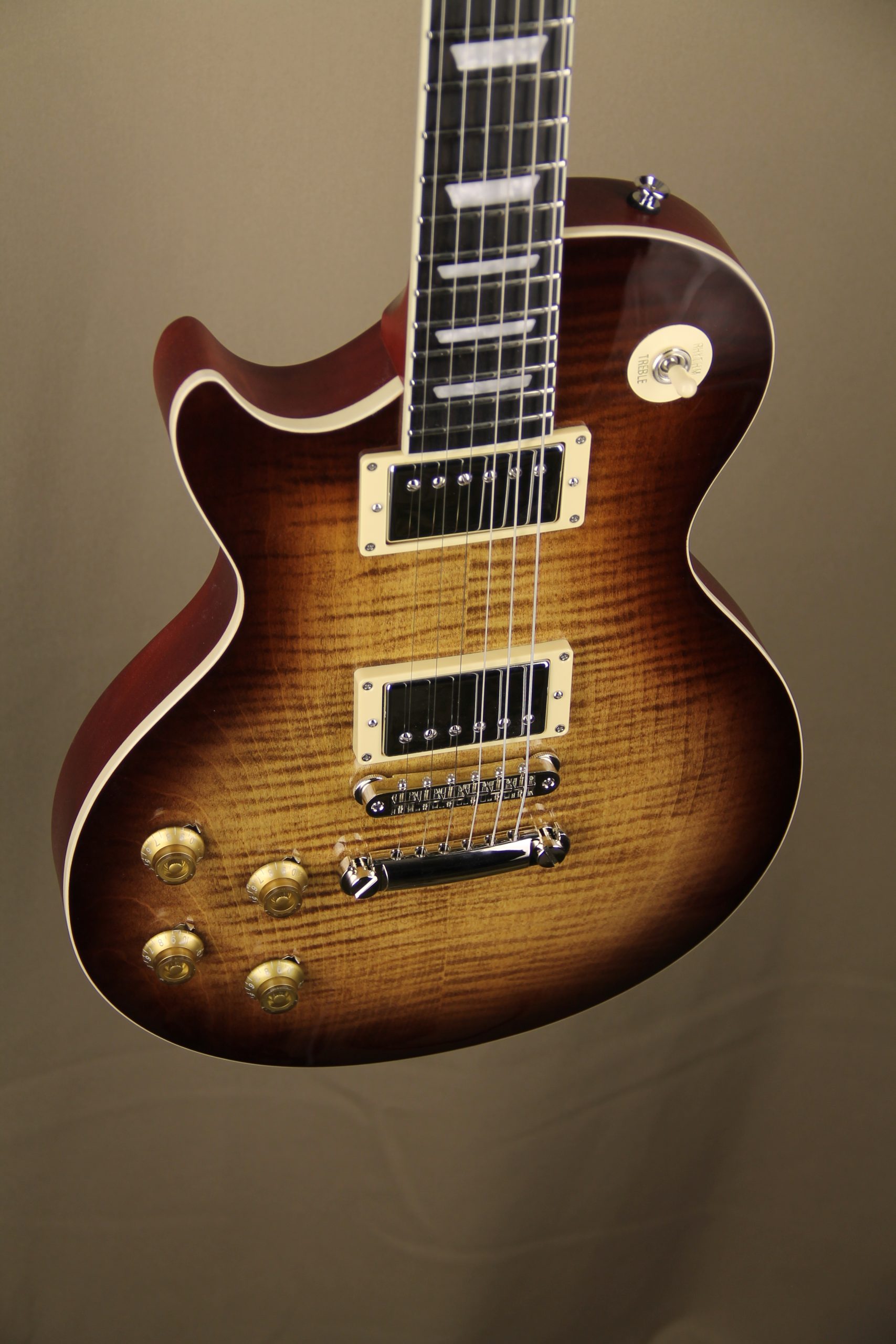

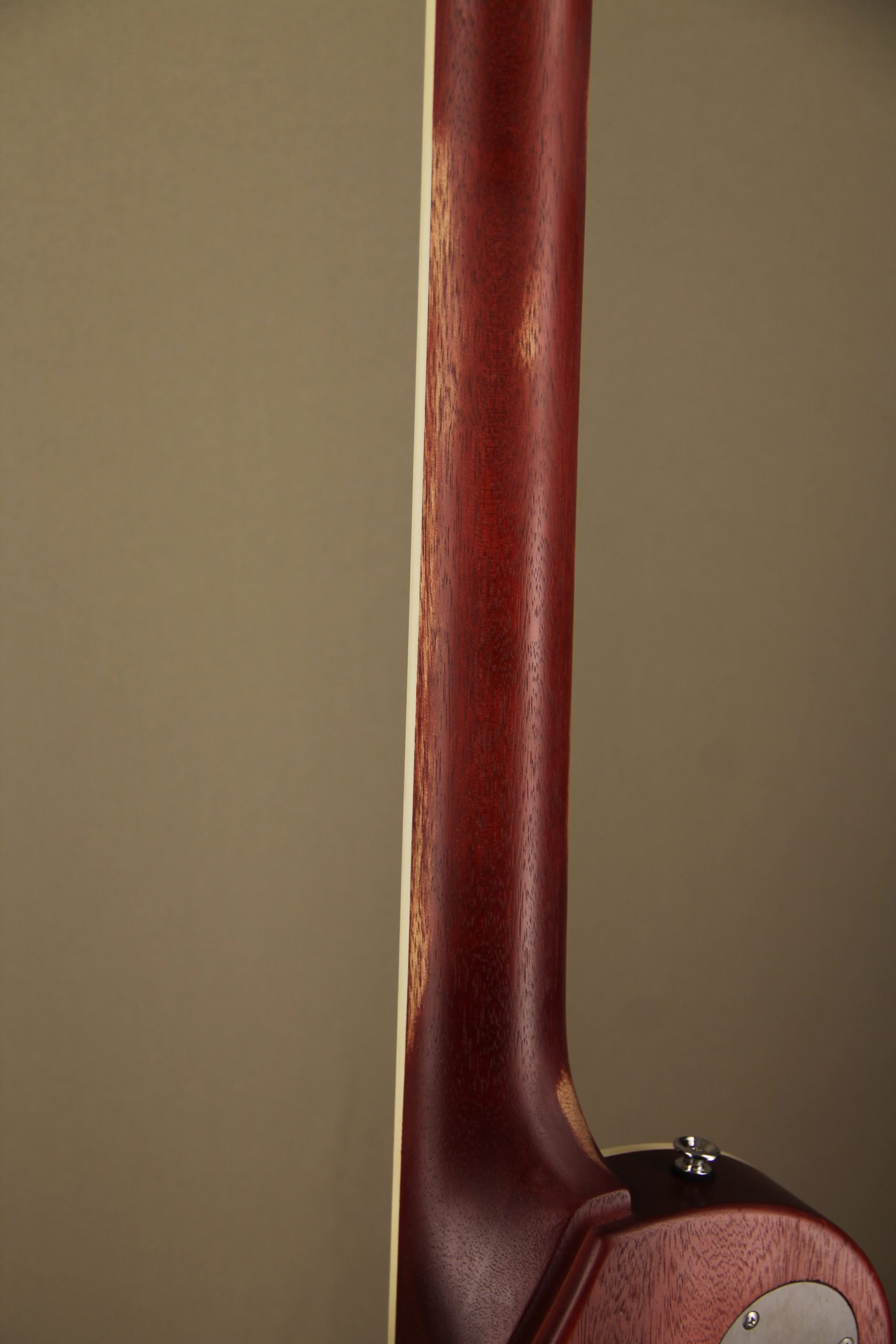

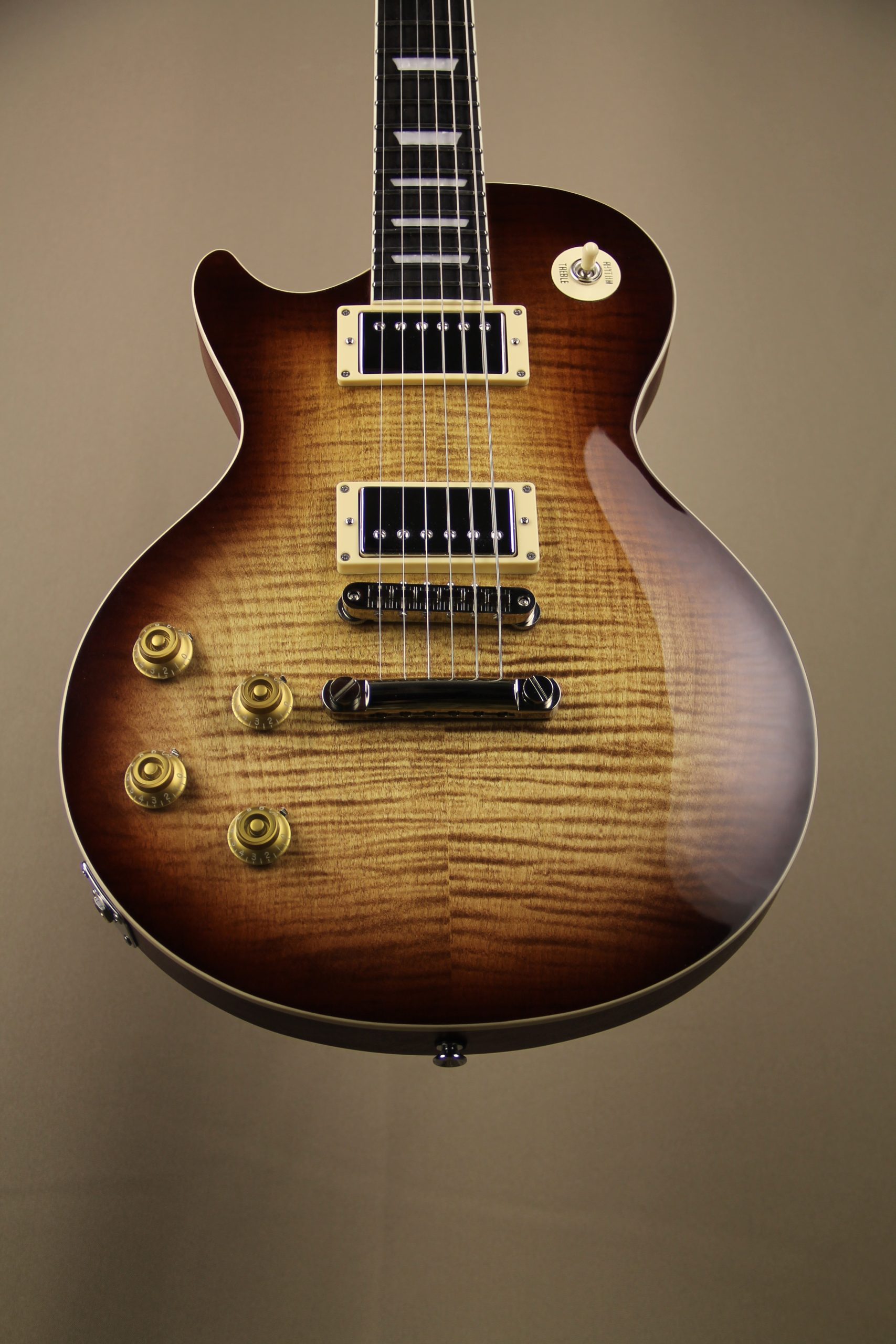

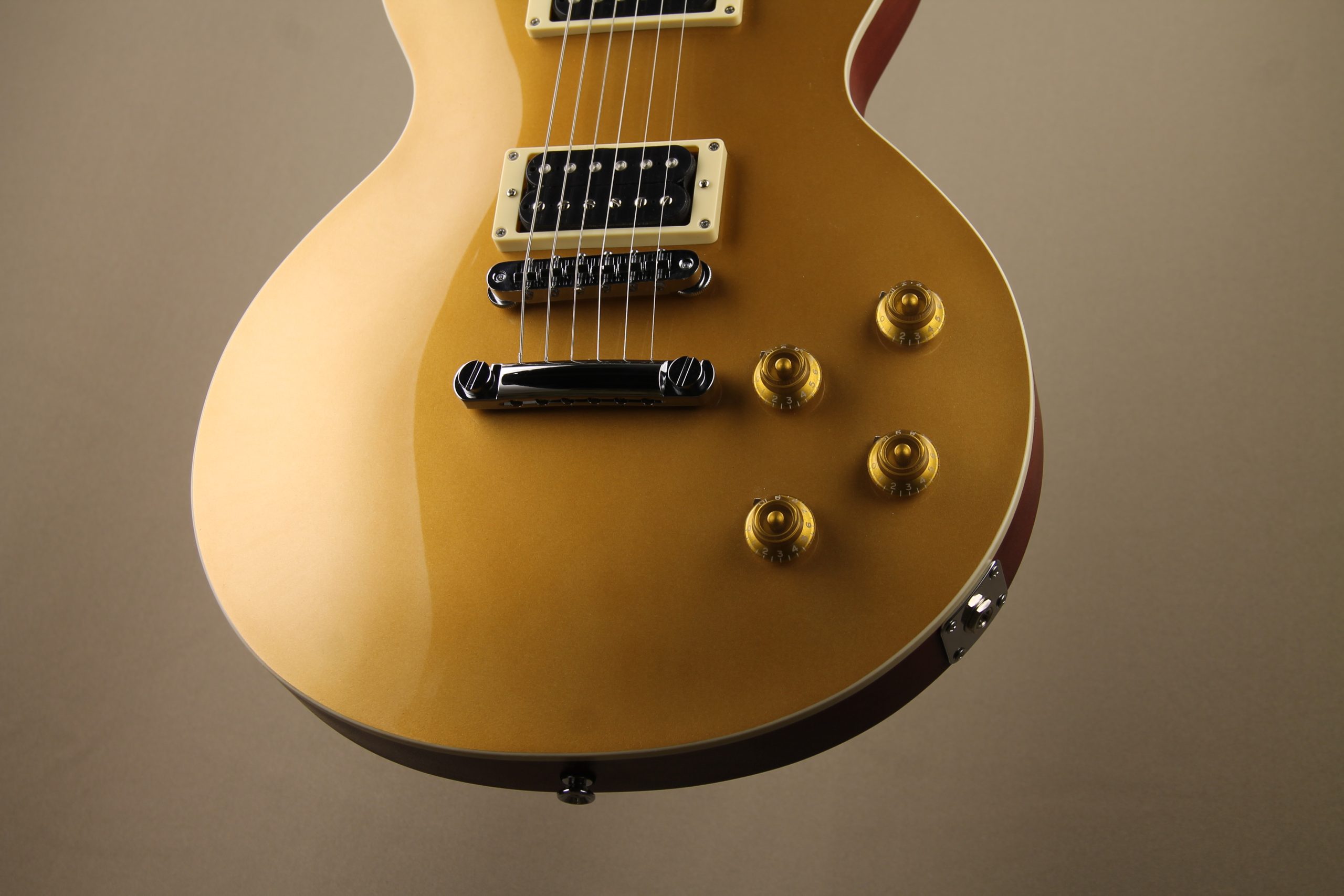

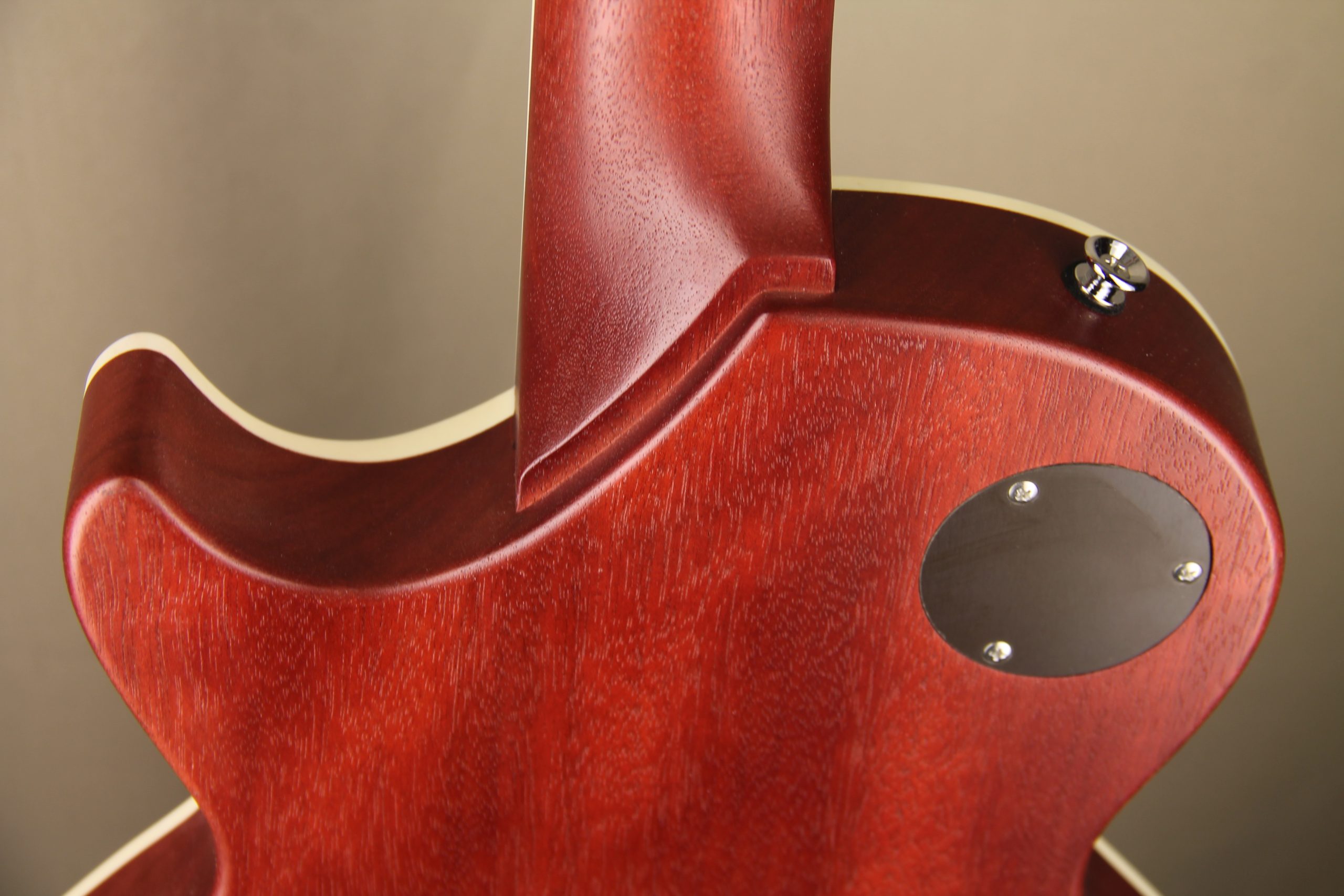

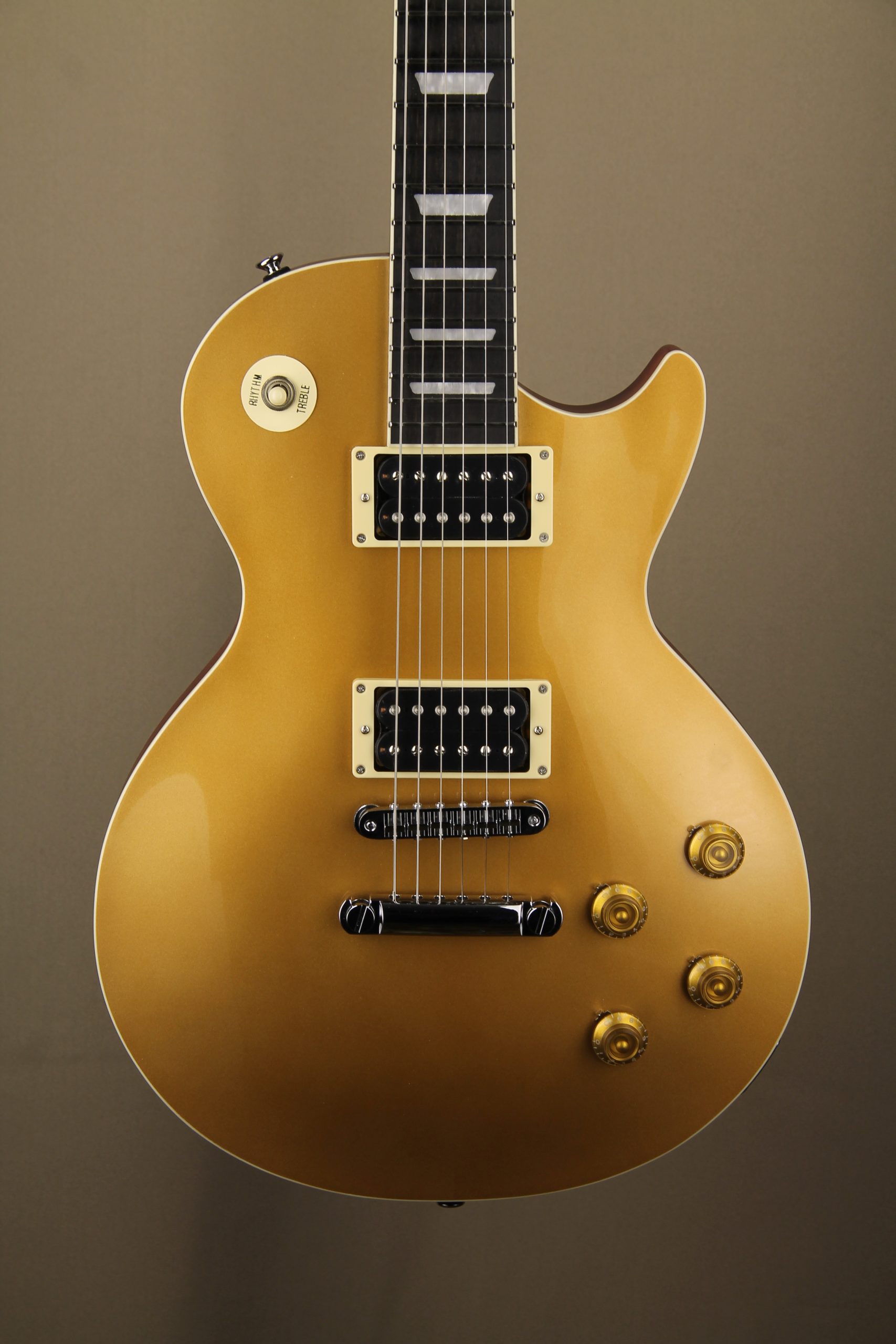

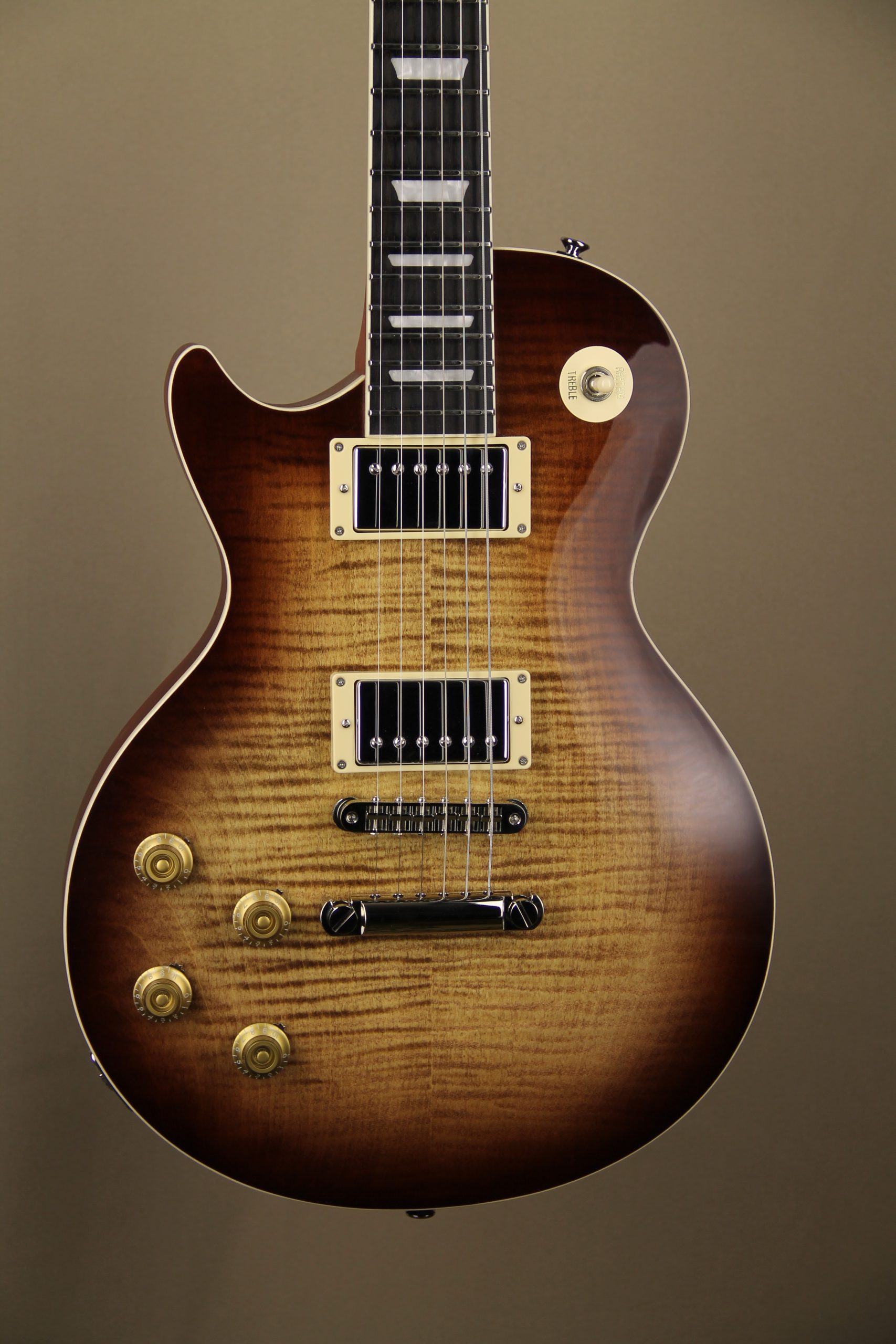

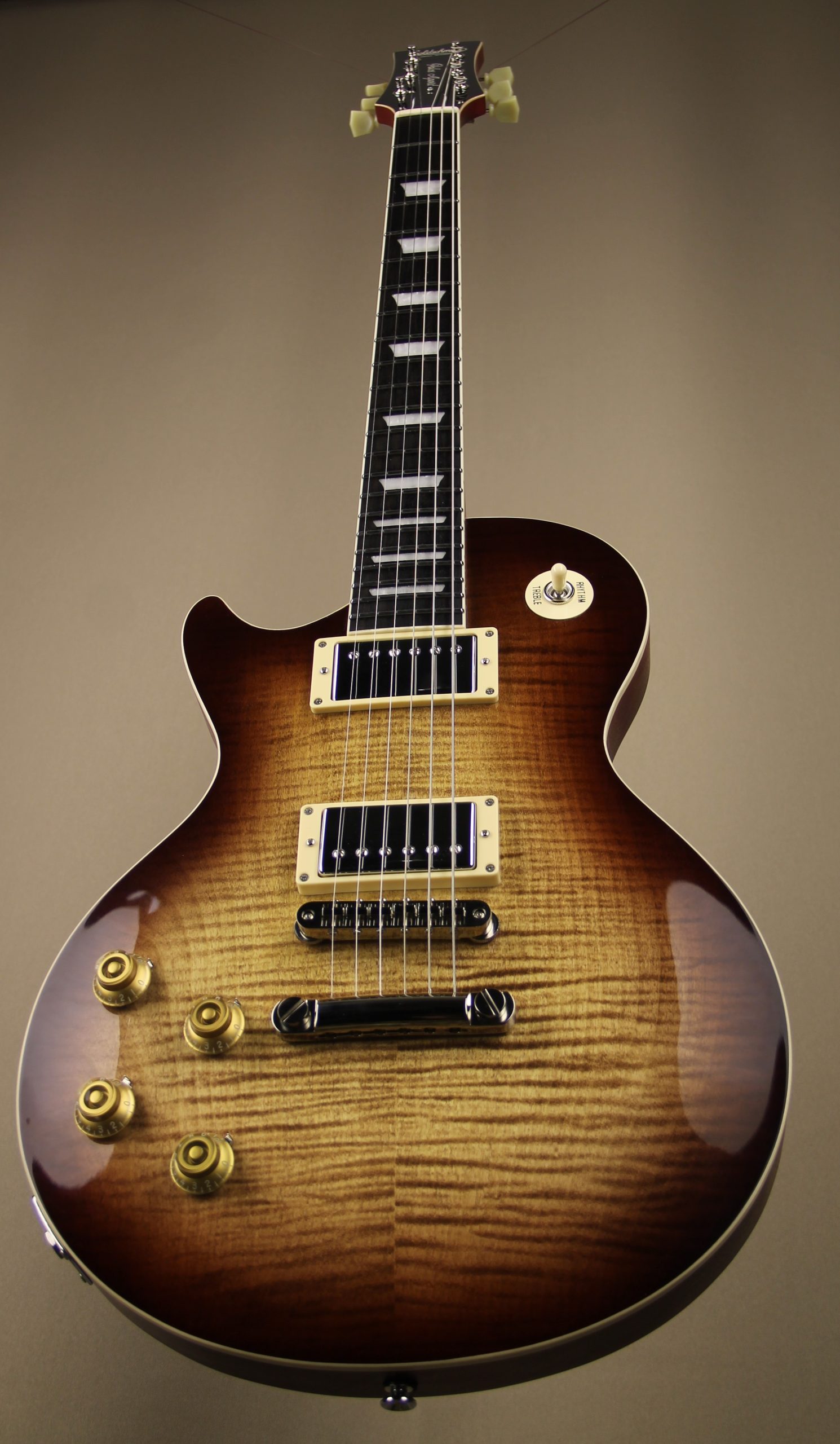

My take on the classic singlecut guitar, with classic hardware and comfortable neck joint contour, custom requirements are welcomed!

Standard specs:

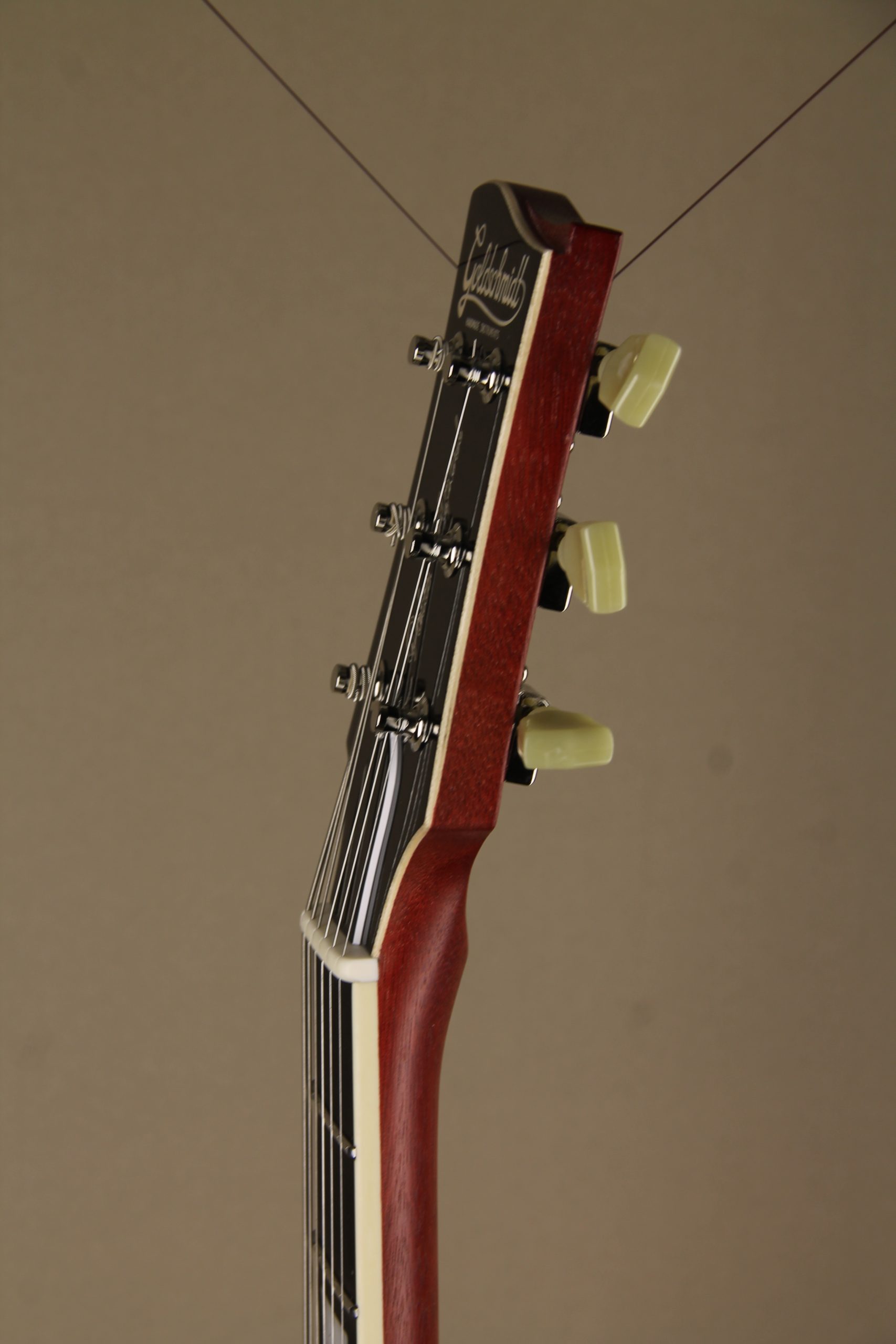

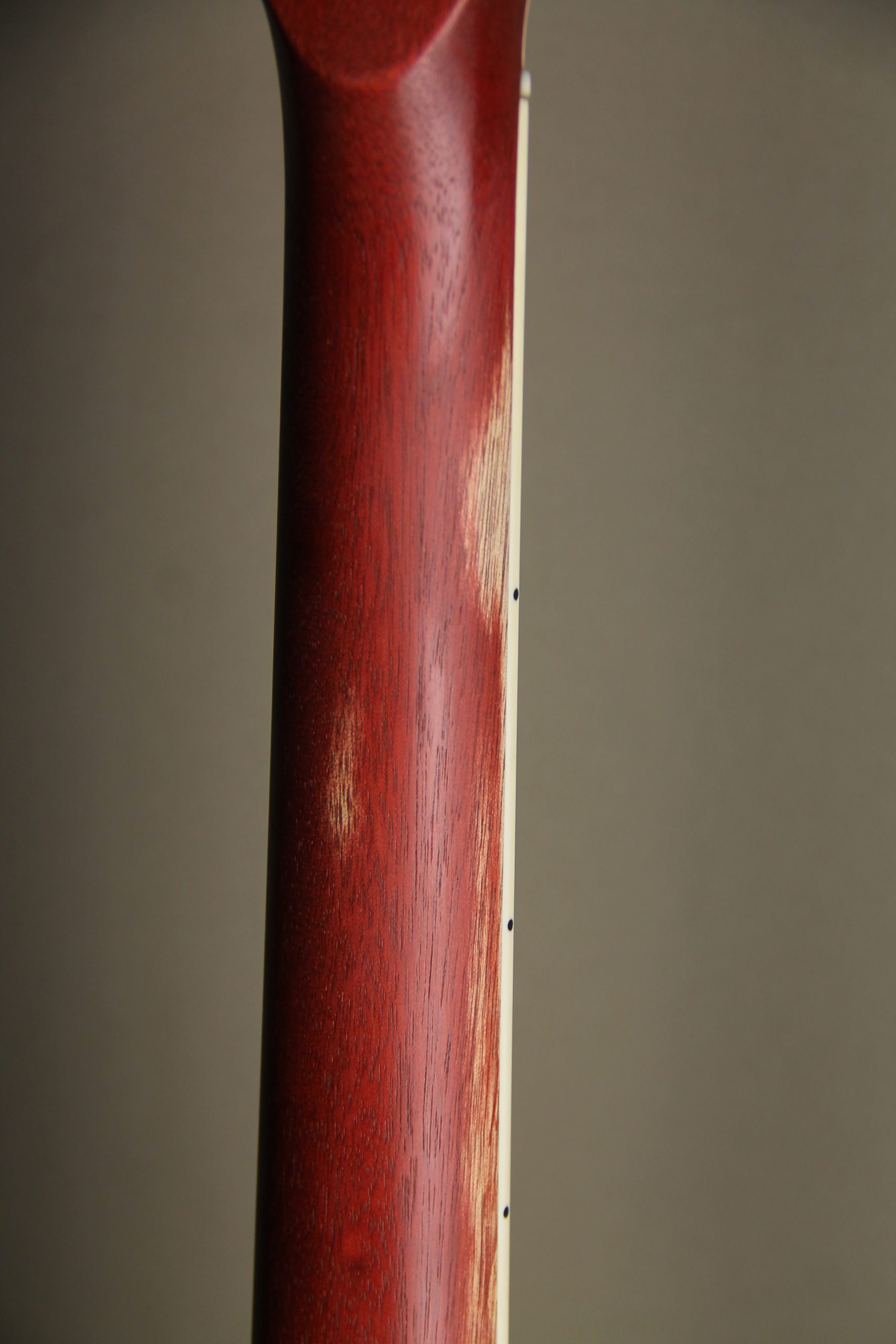

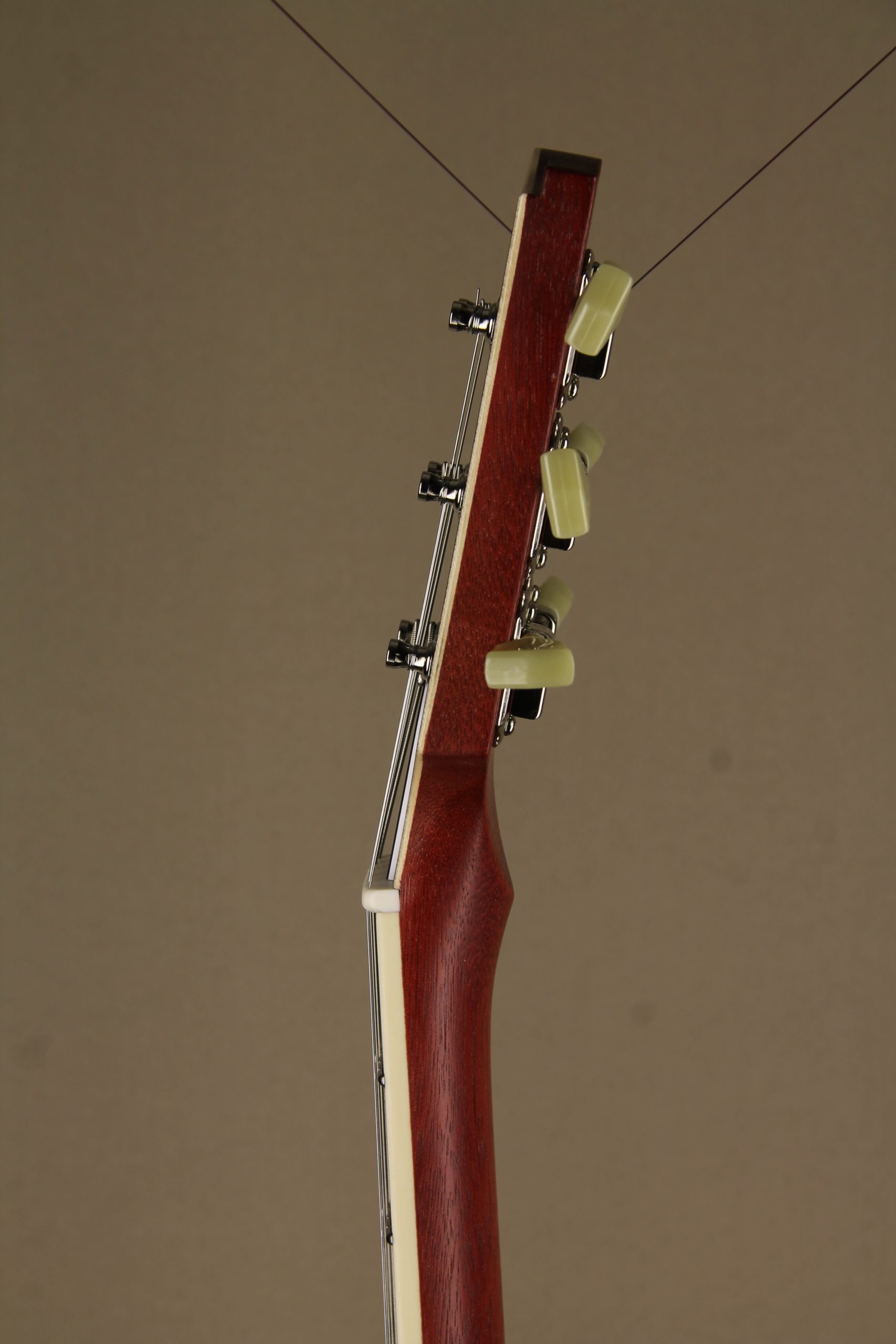

  • Neck: mahogany

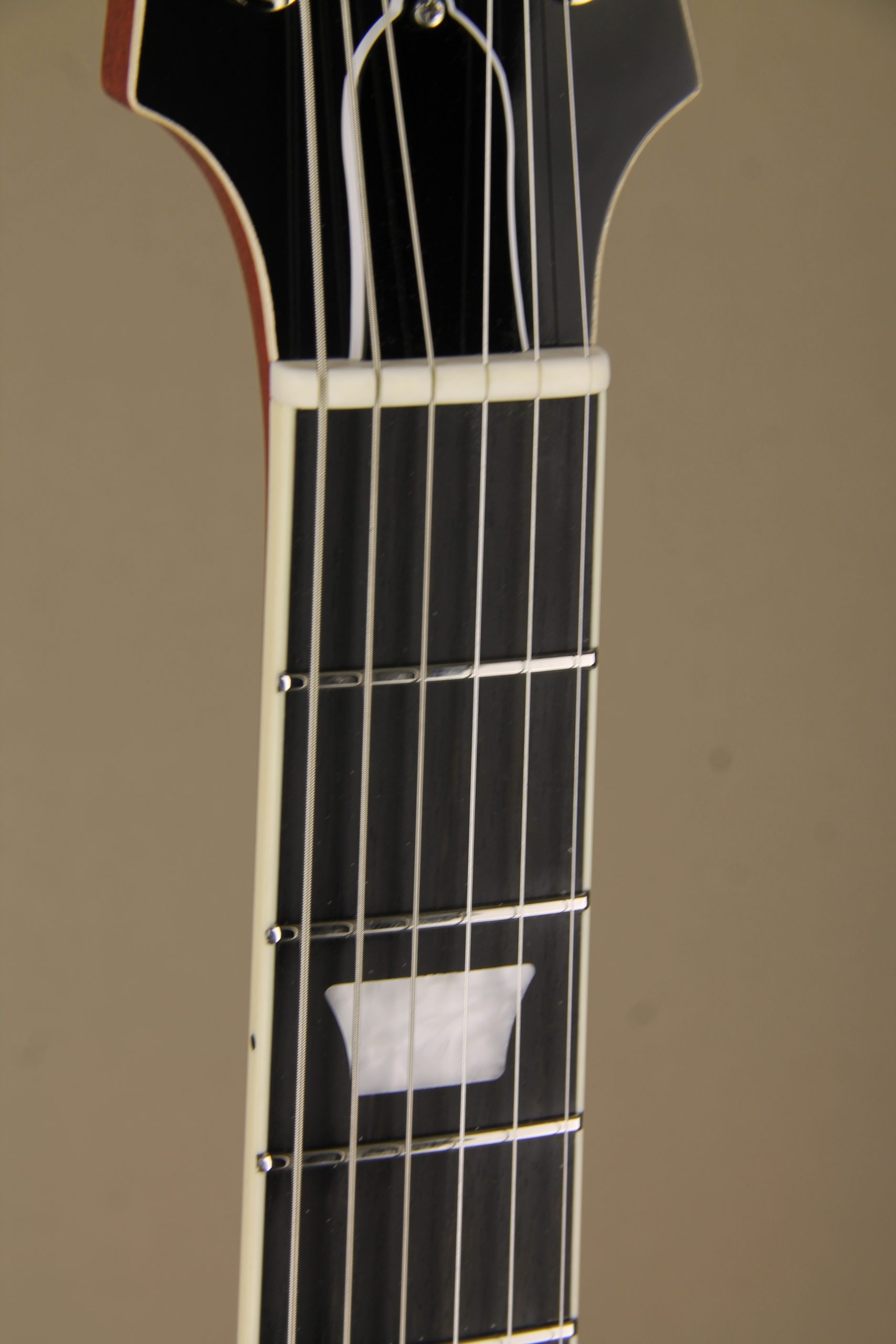

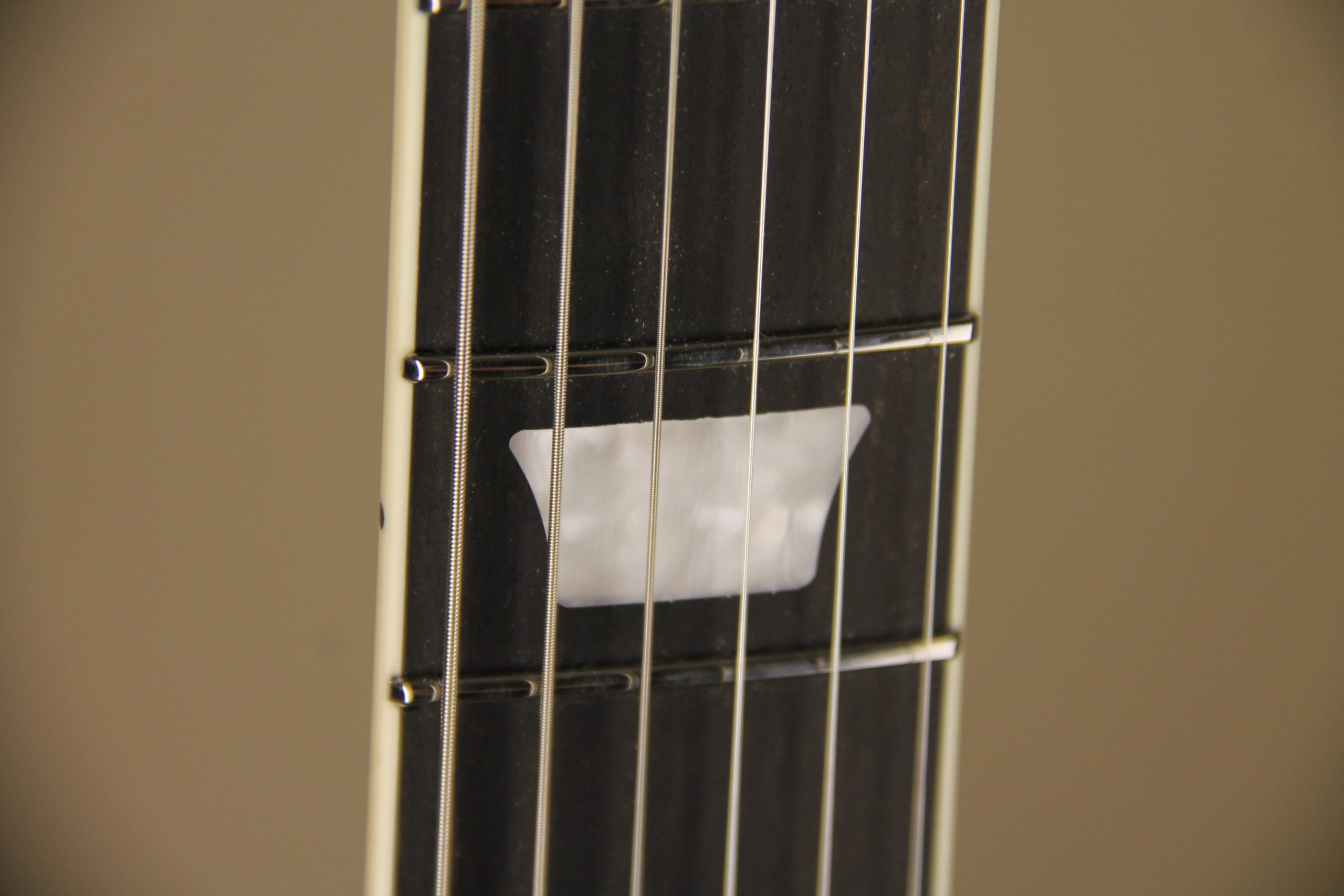

  • Fretboard: rosewood or ebony

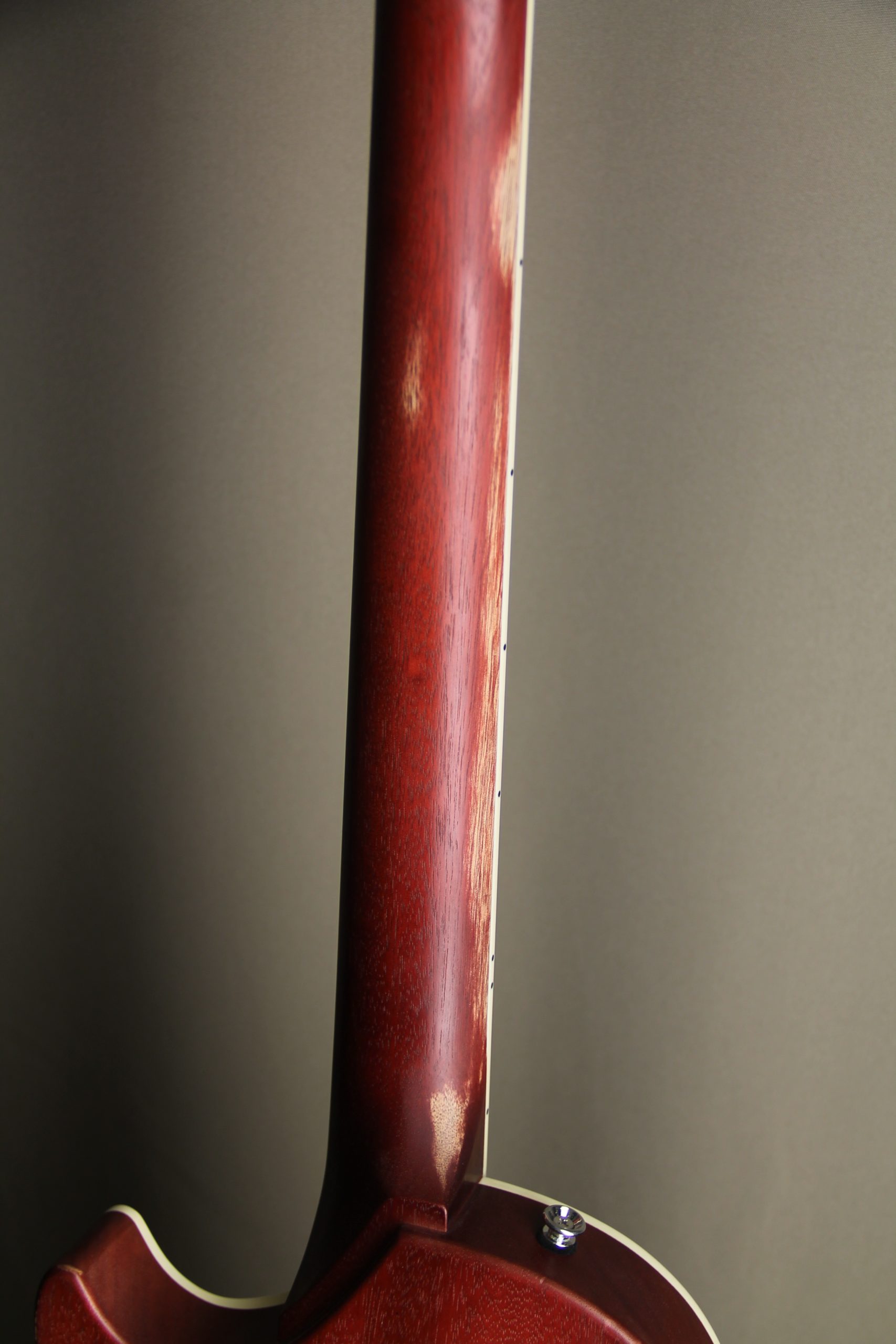

  • Dimensions: 43,5mm (1,71″) wide at nut, 22,5mm (0,885″) deep at 1st fret, 24,5mm (0,965″) deep at 12th fret, „C” shape, rolled off edges
  • Frets: 22, Stainless steel, medium jumbo (Jescar 51100)
  • Fingerboard radius: 9-12” compound
  • Scale length 629mm (24,75”)
  • Nut: Bone
  • Trussrod: double acting

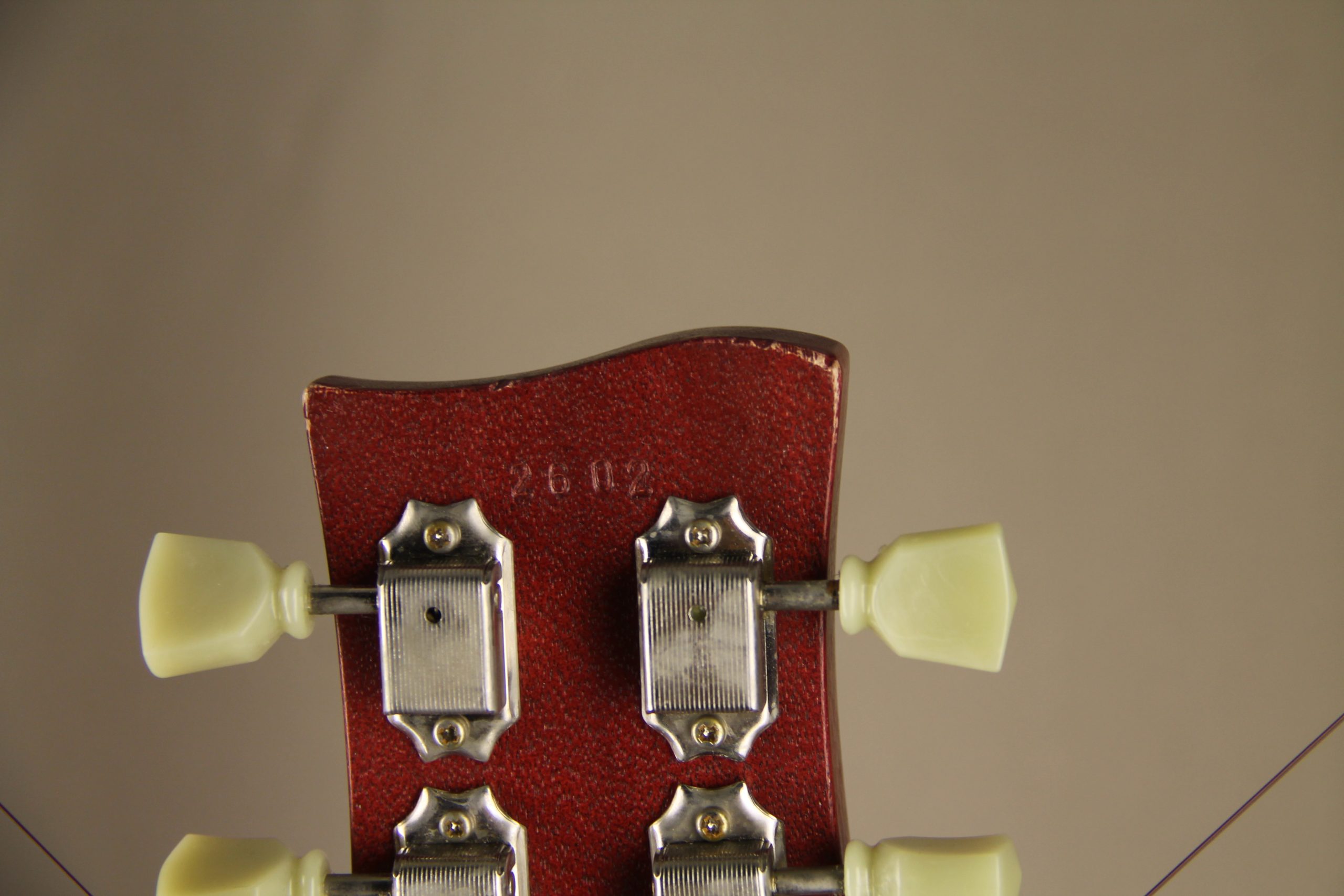

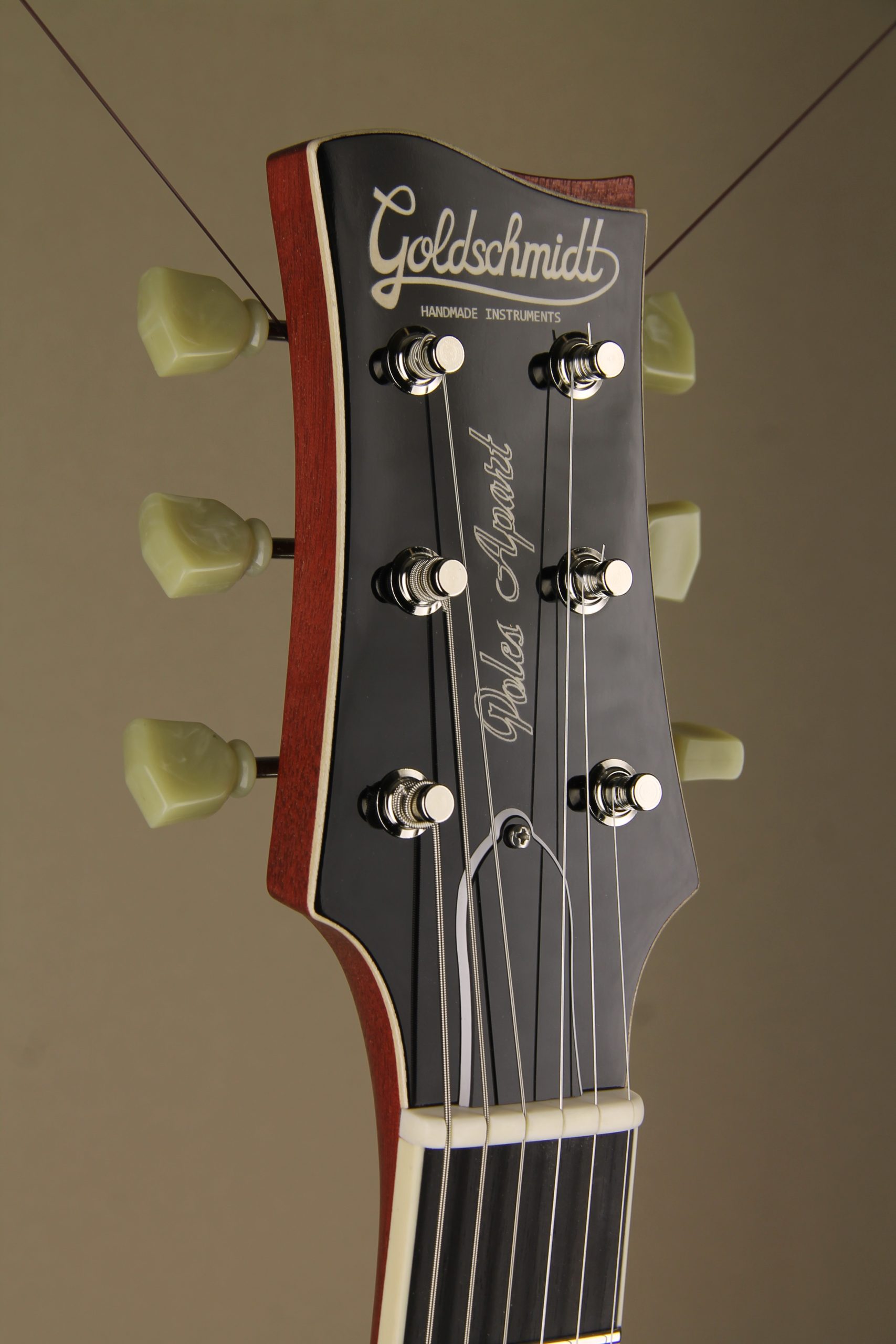

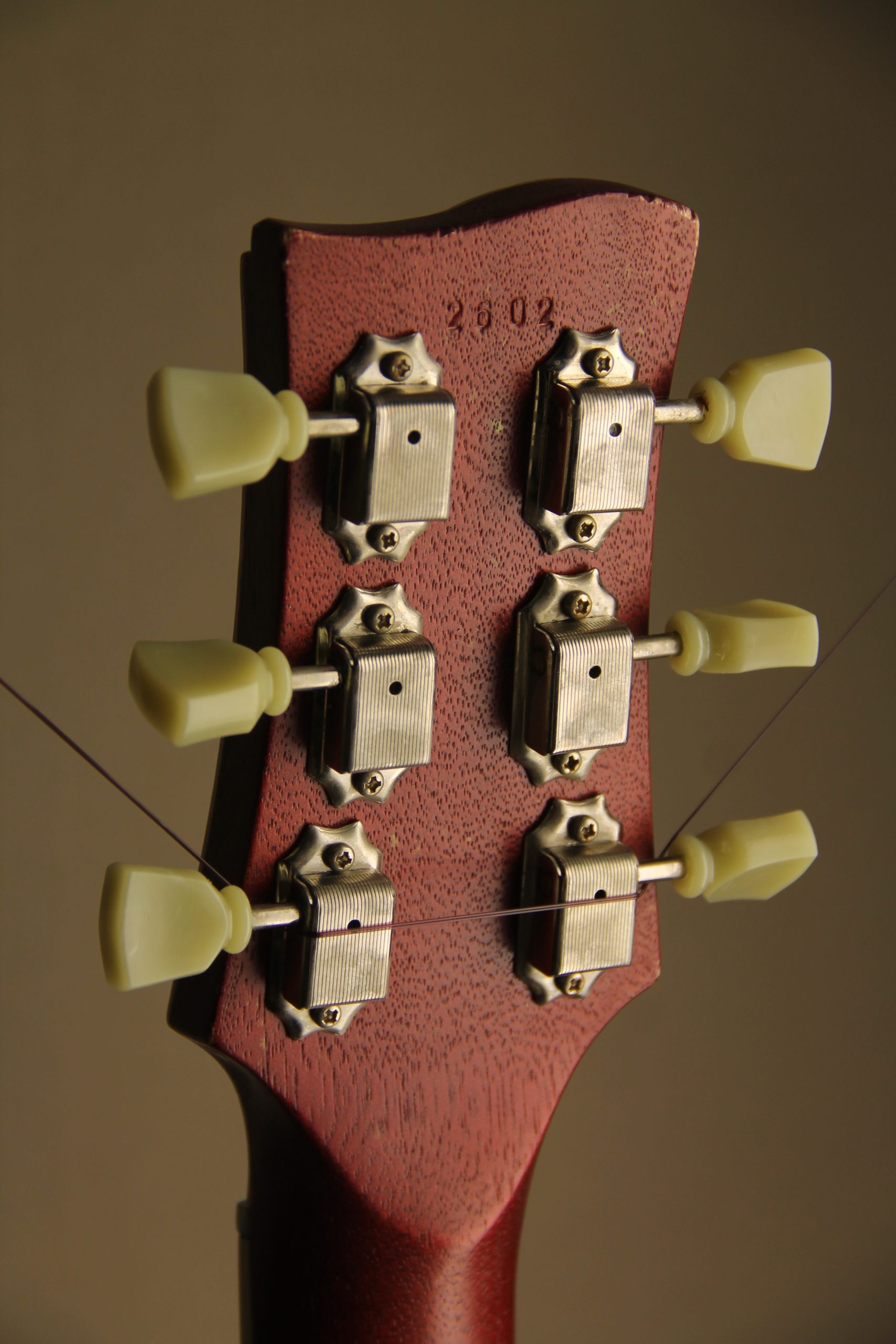

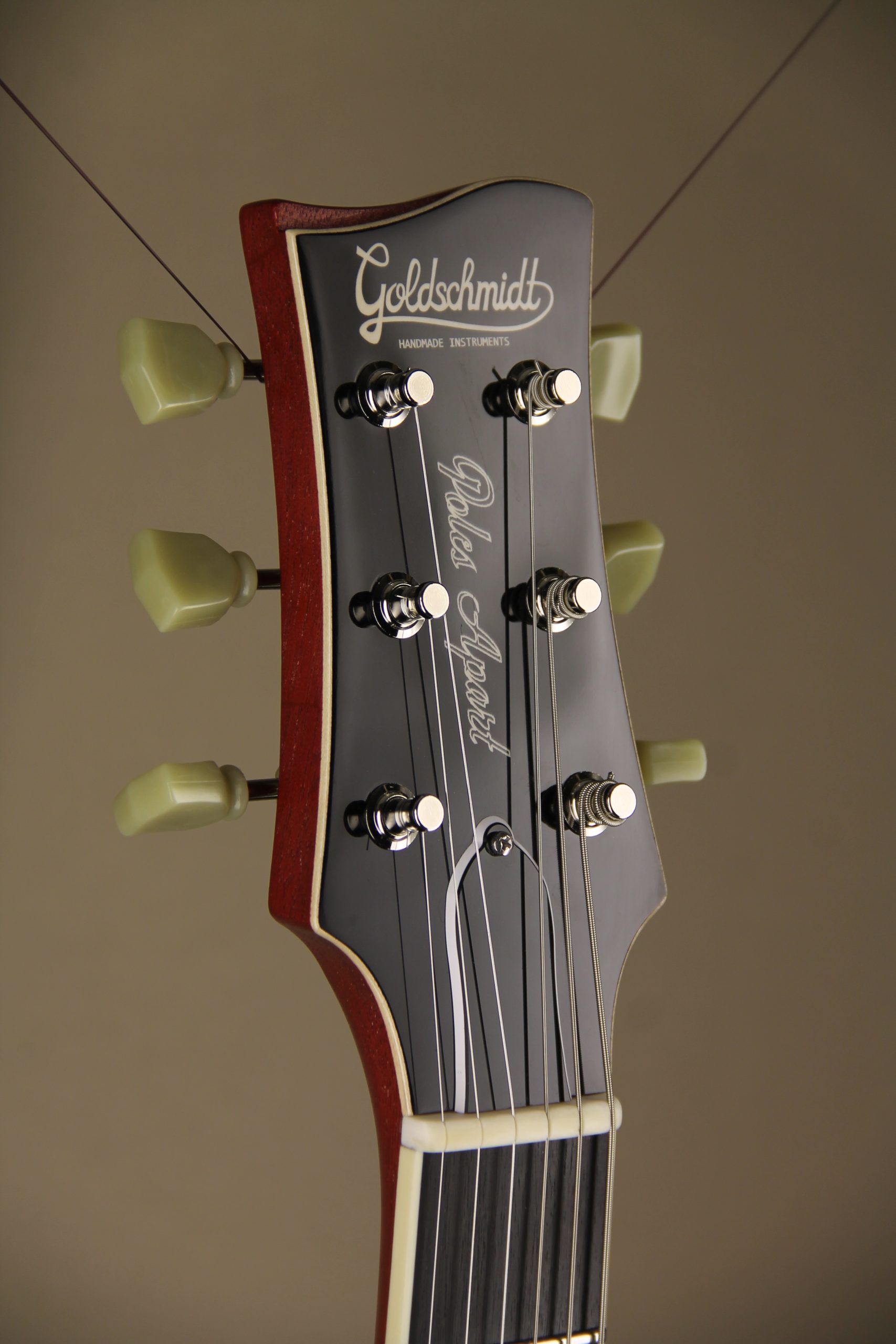

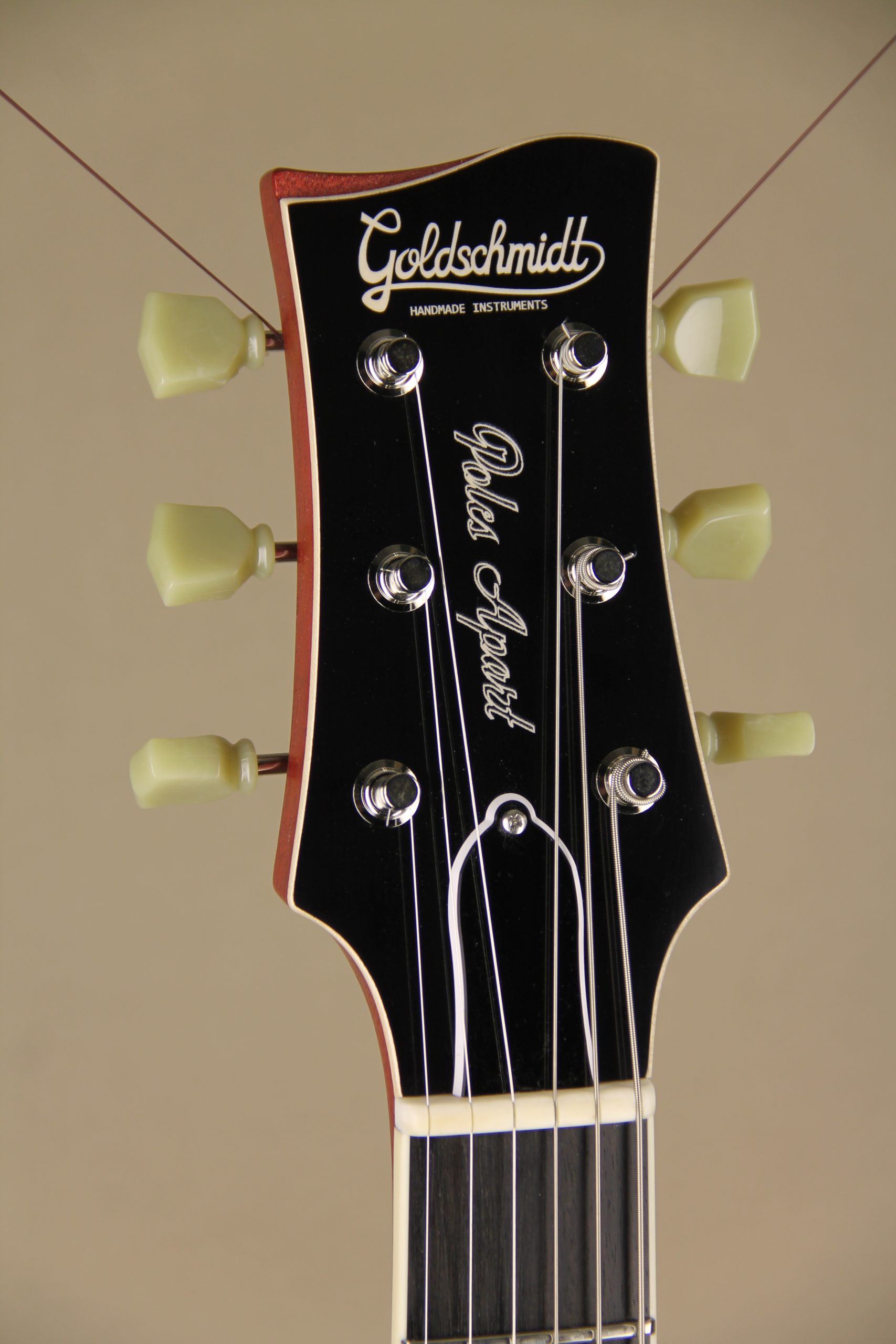

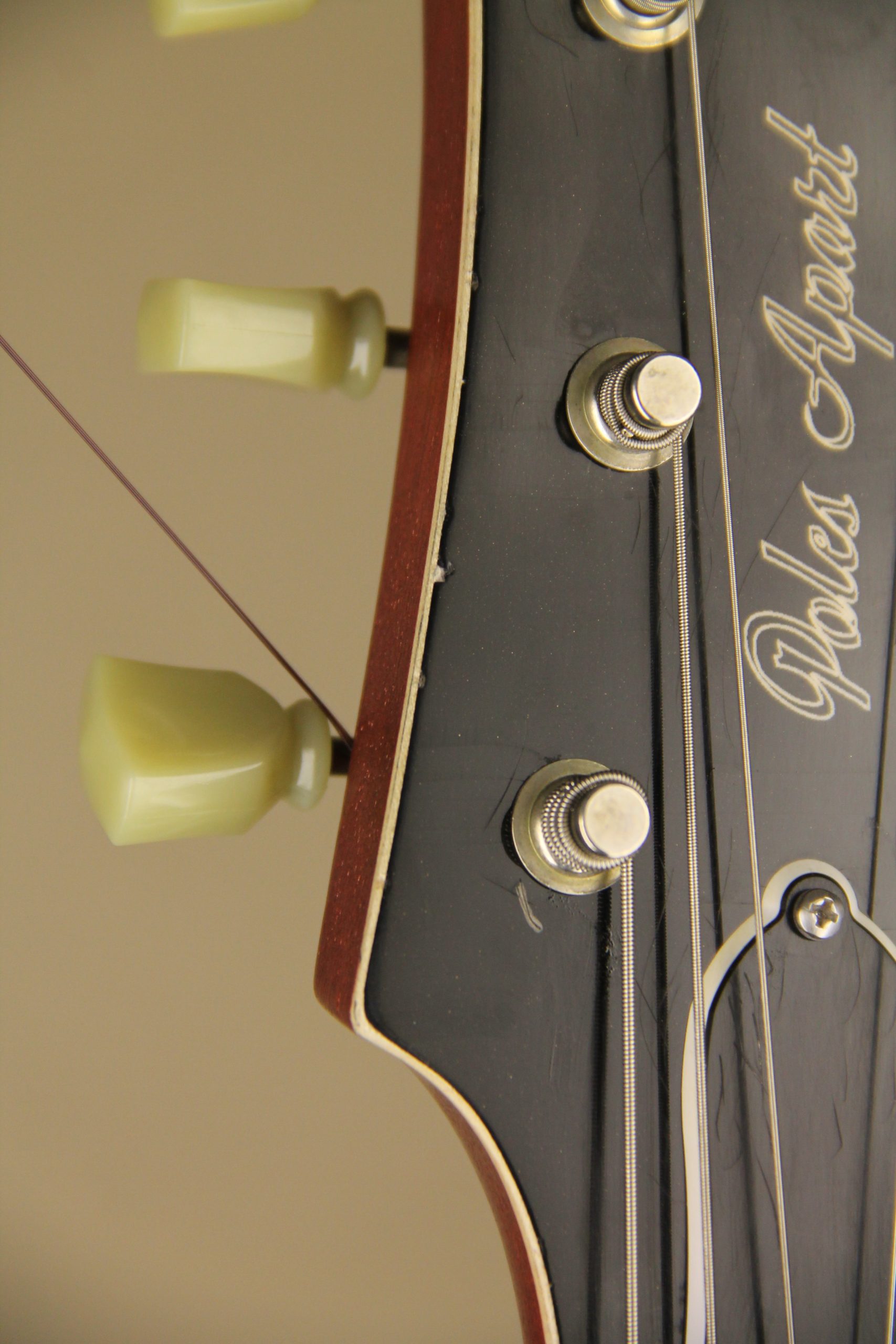

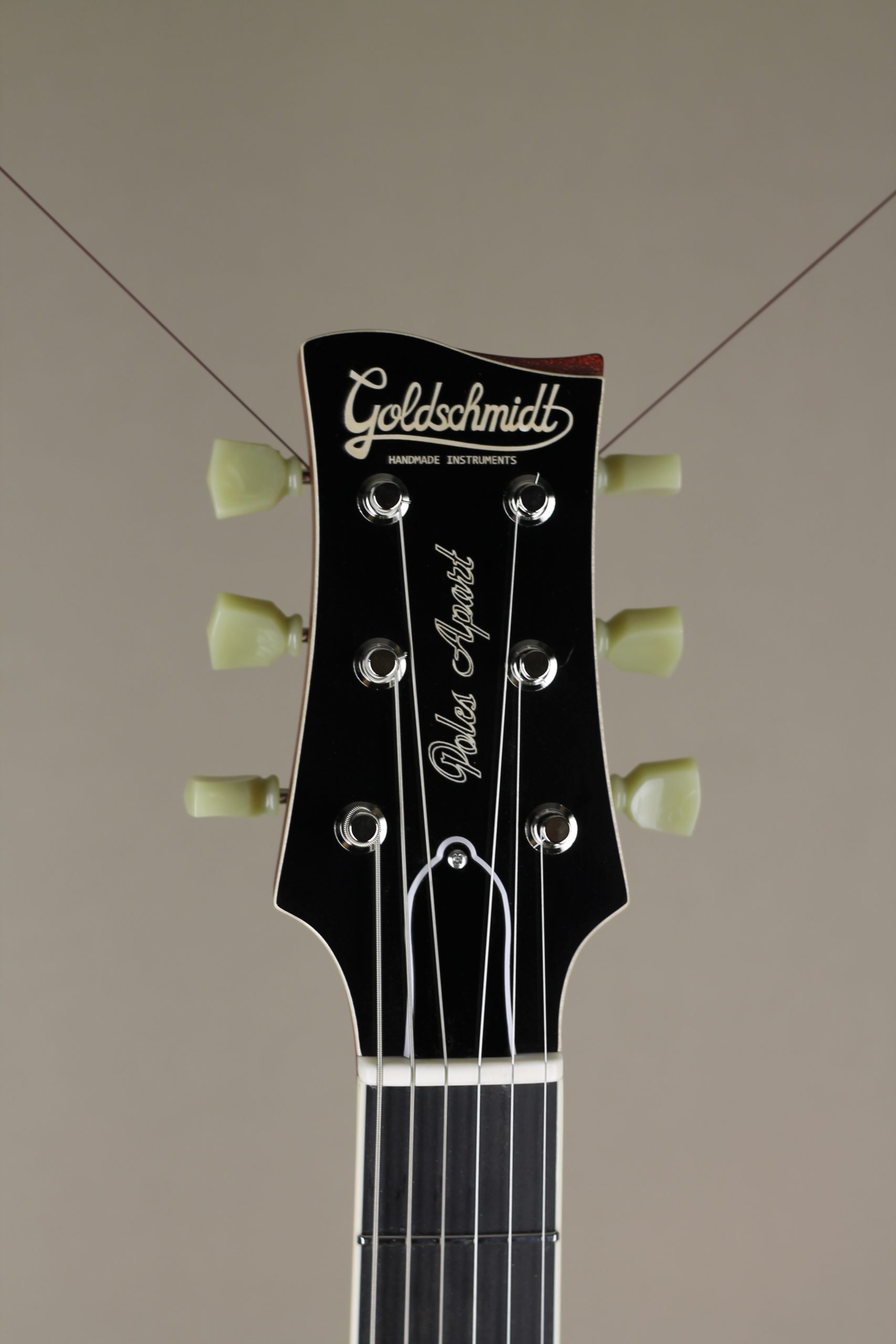

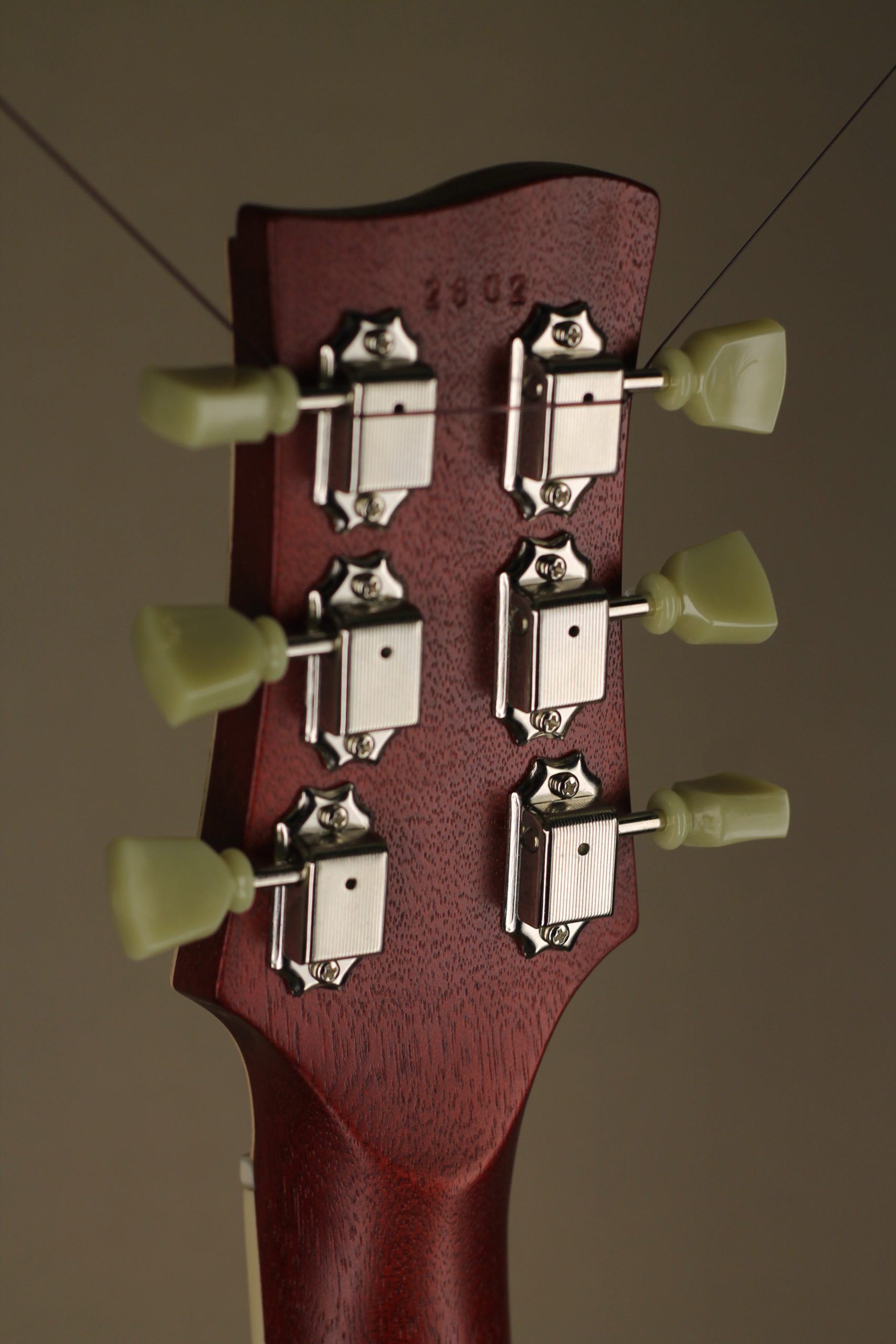

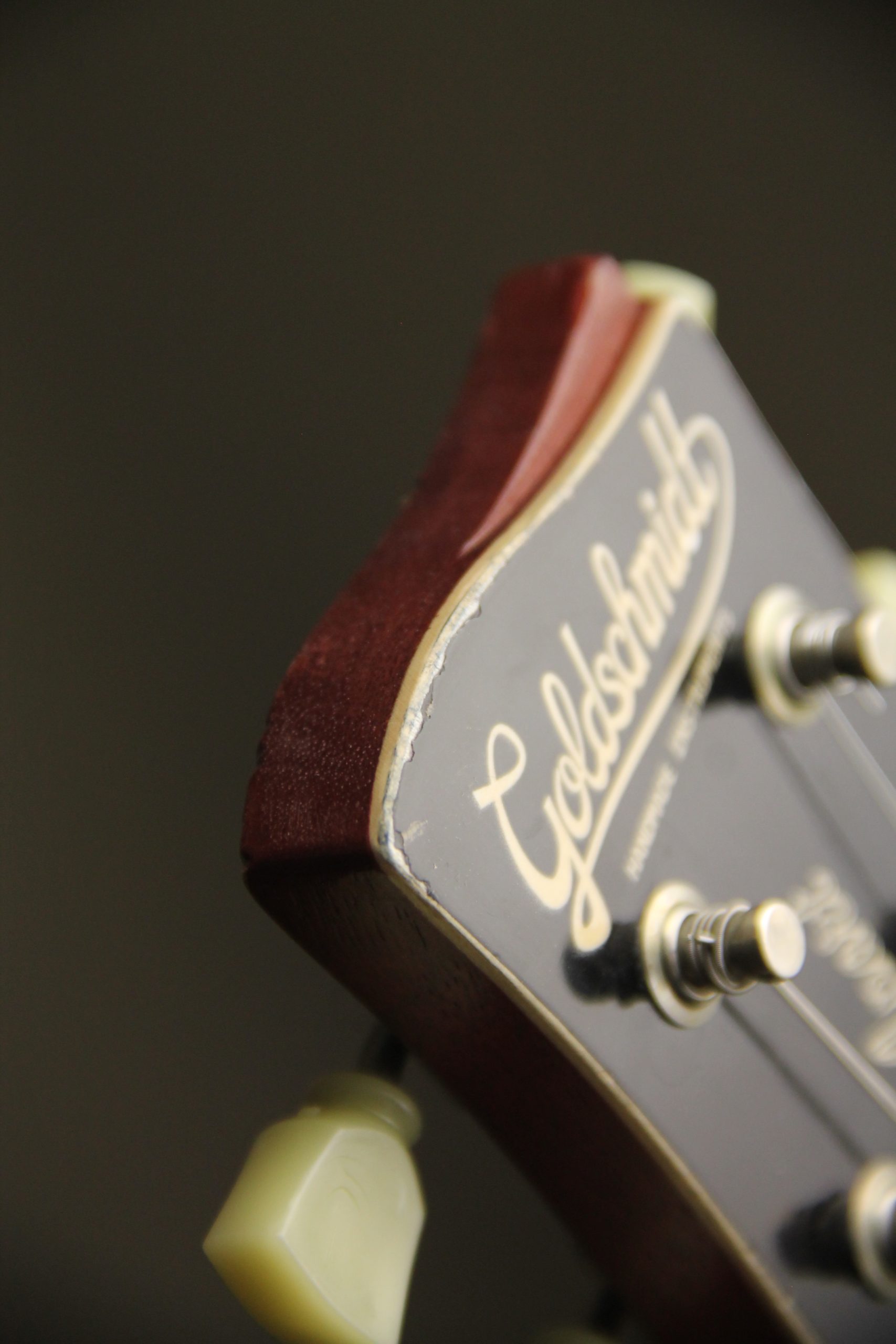

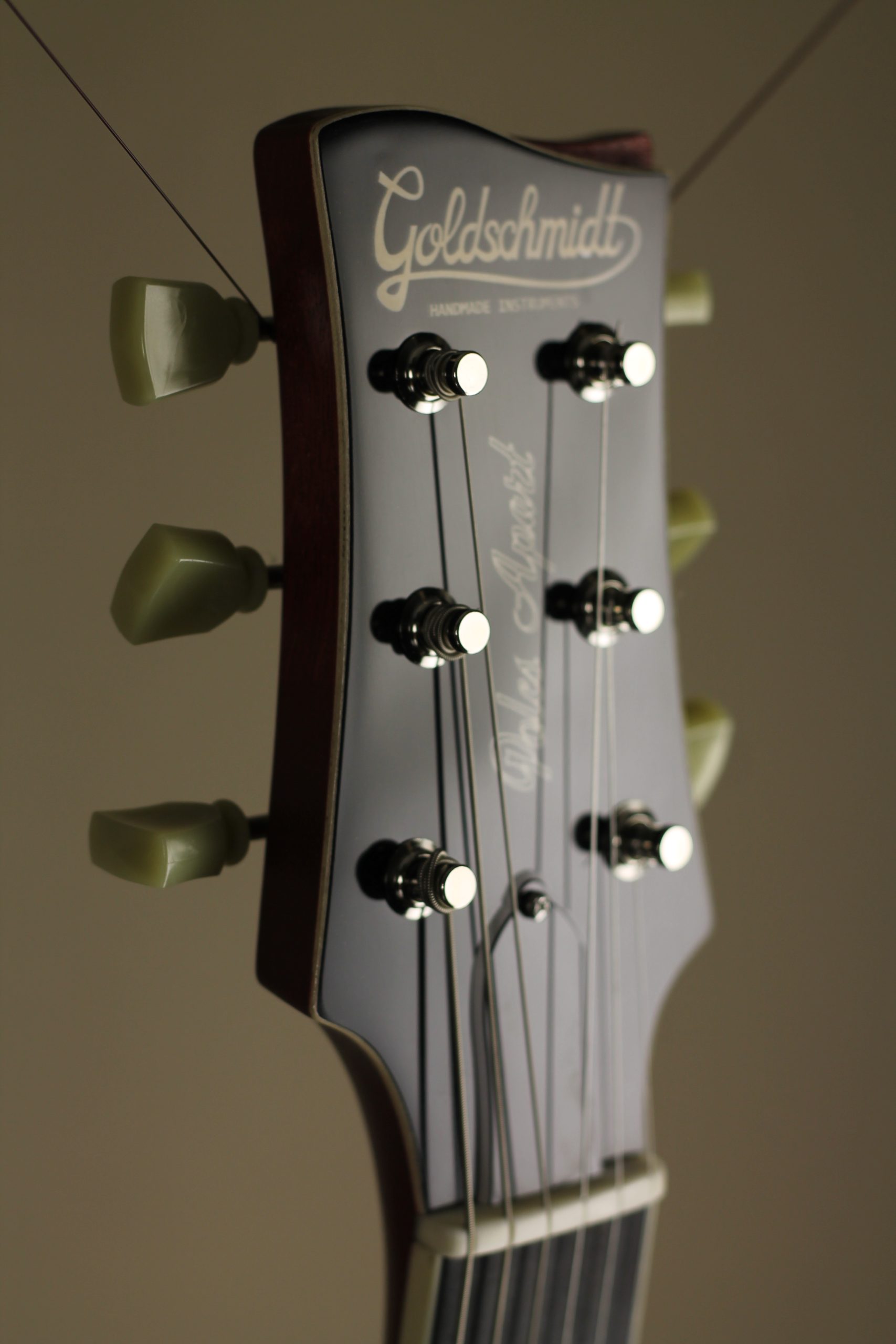

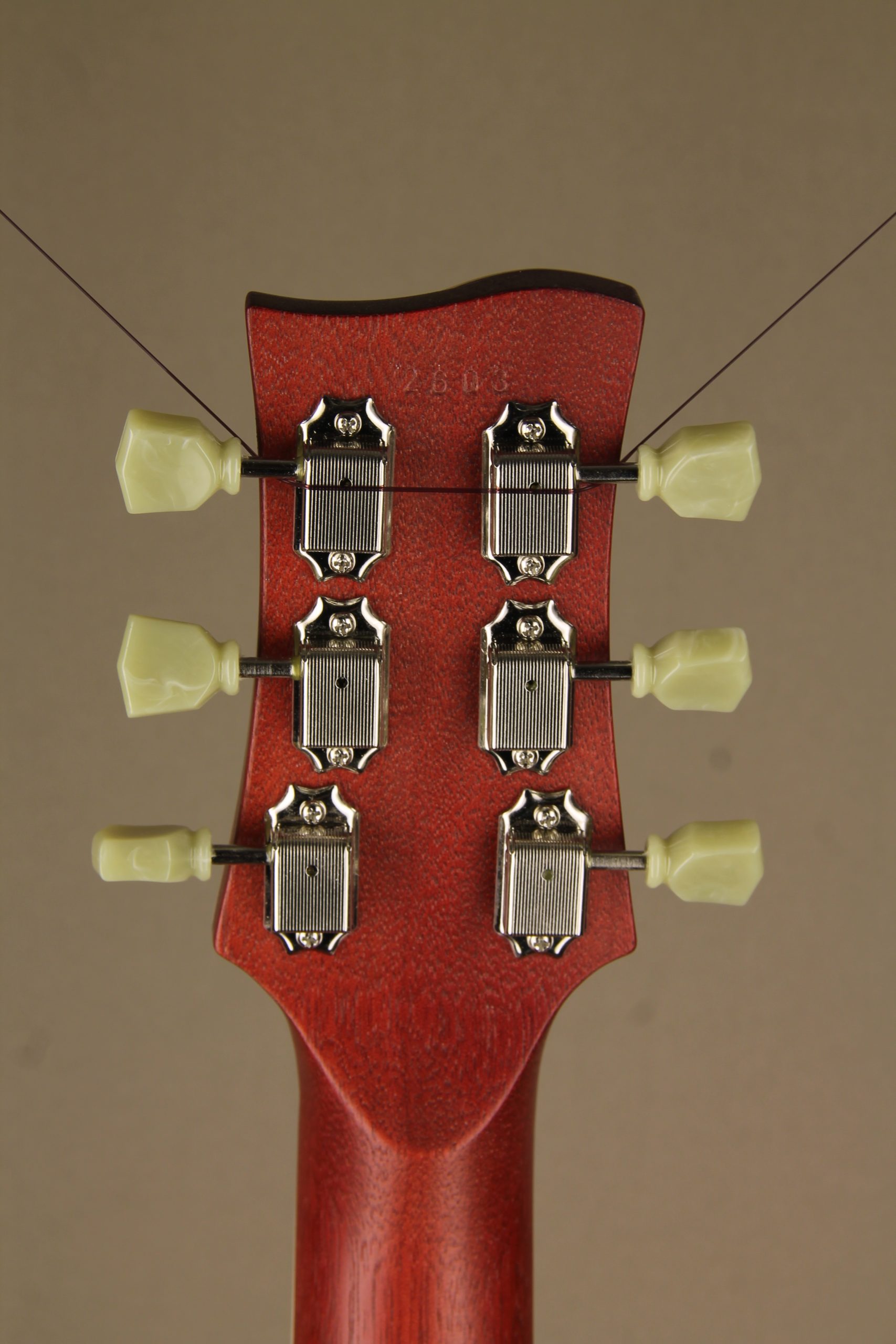

  • Tuners: Gotoh
  • Neck Finish: satin poliurethane or gloss nitro

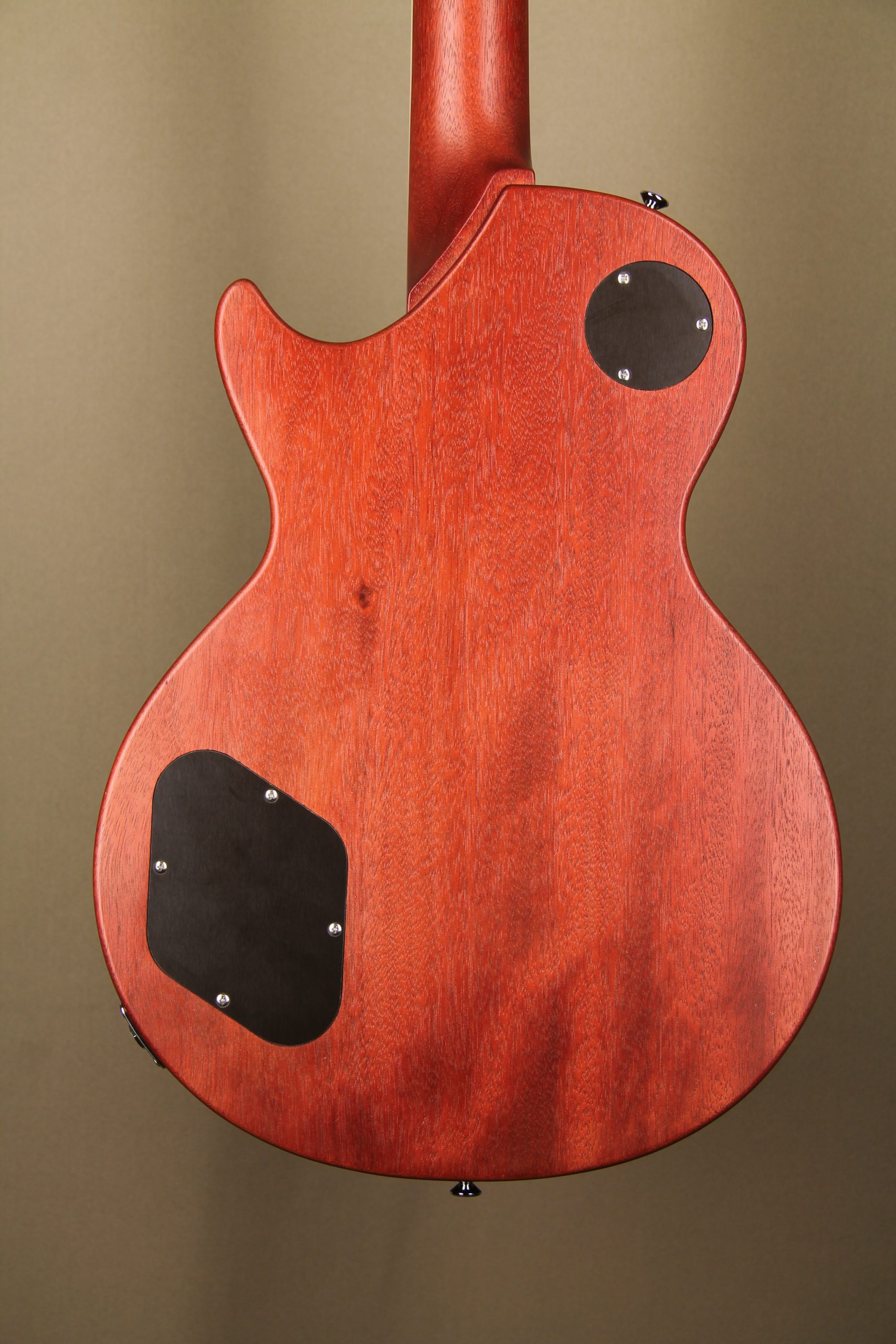

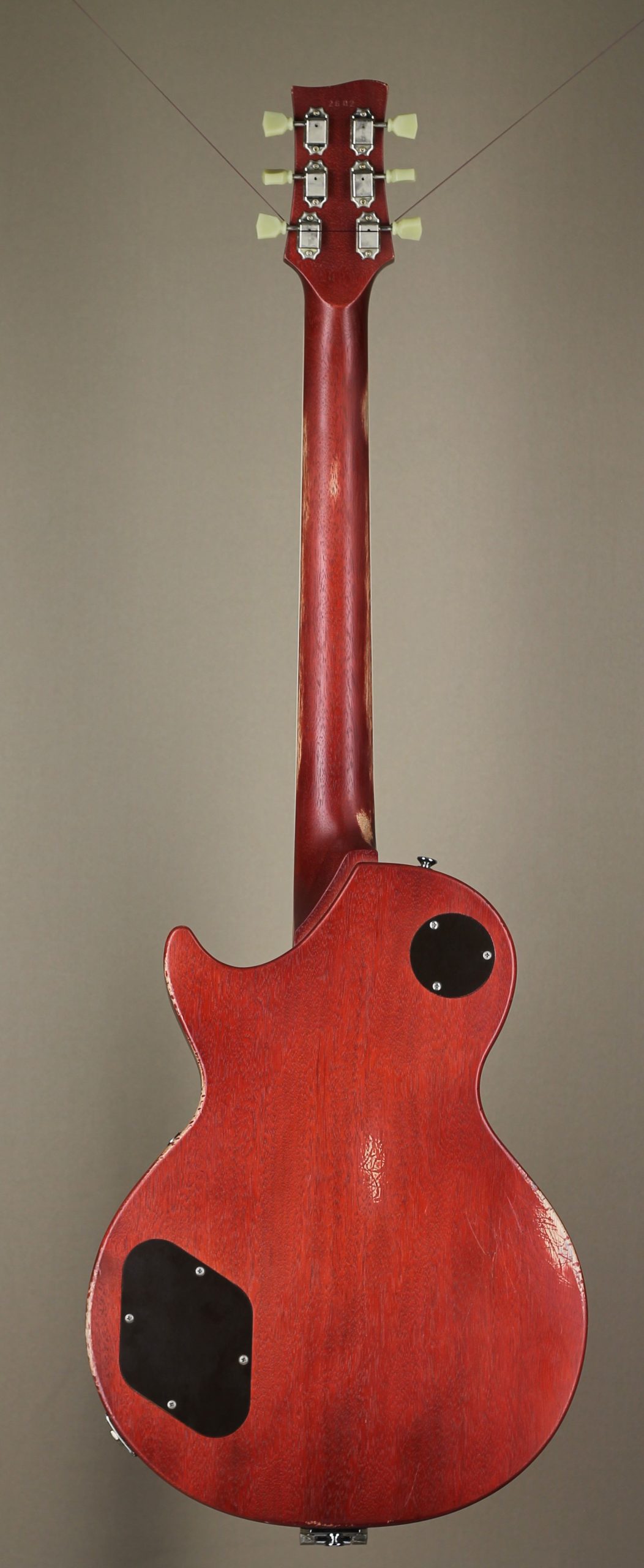

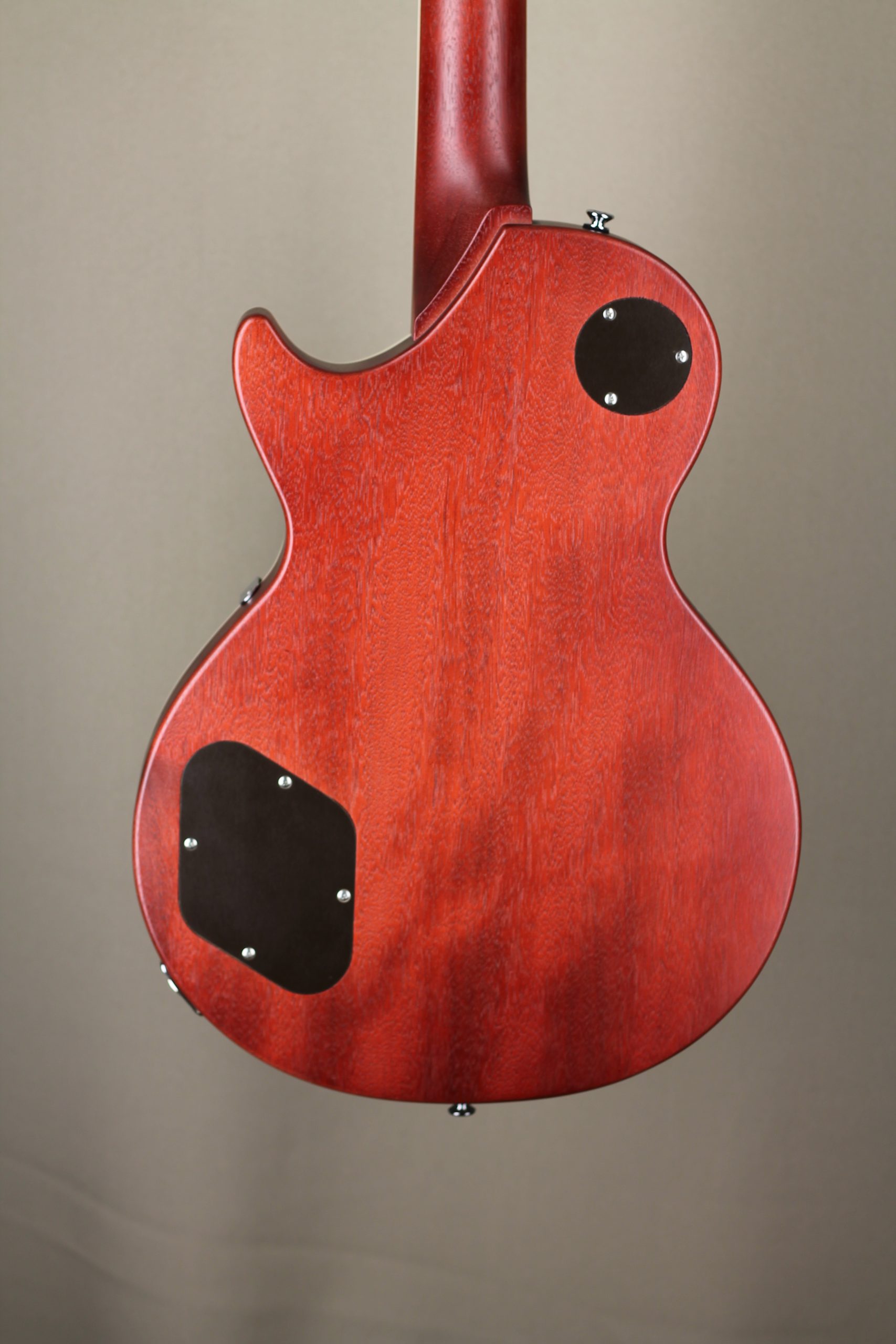

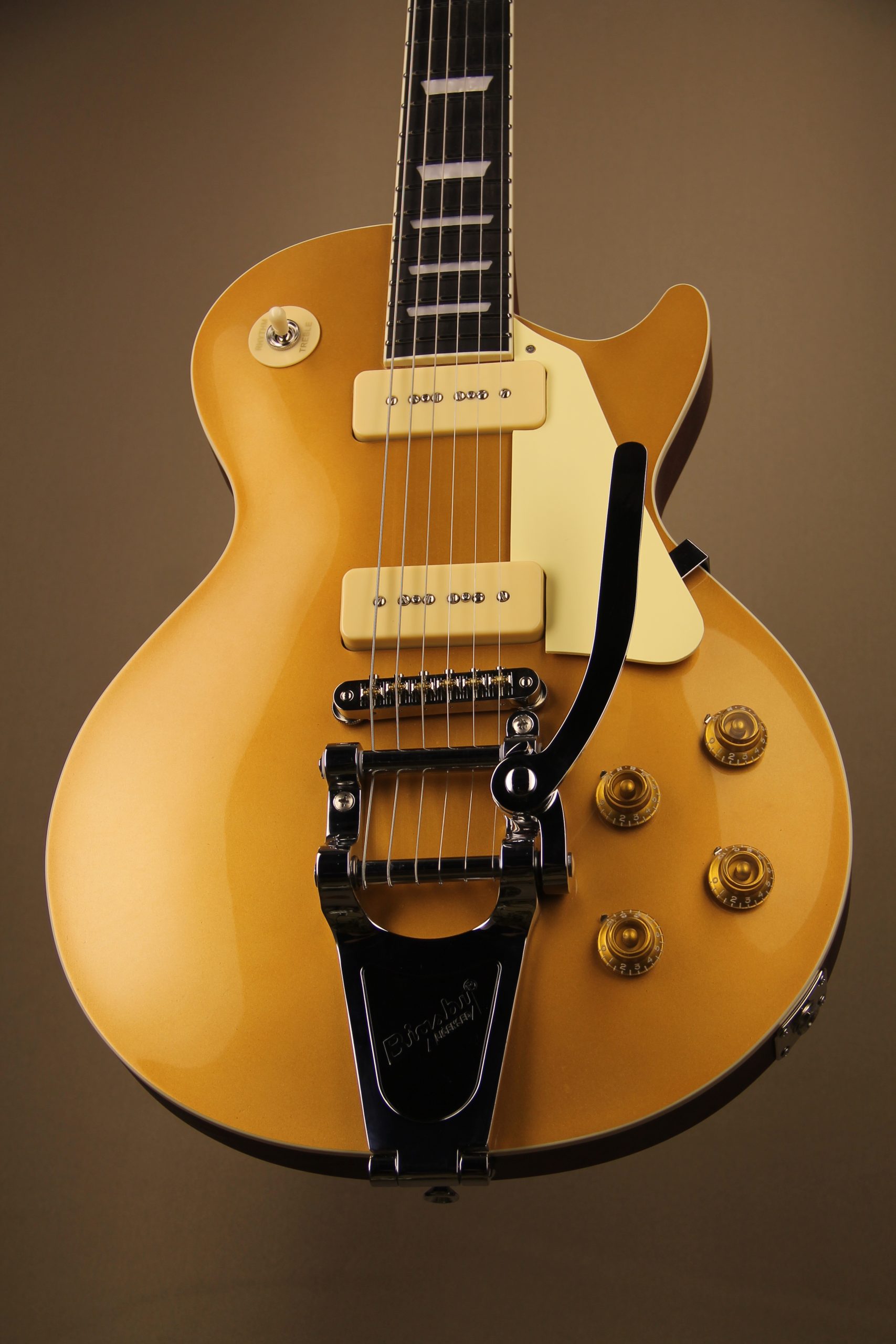

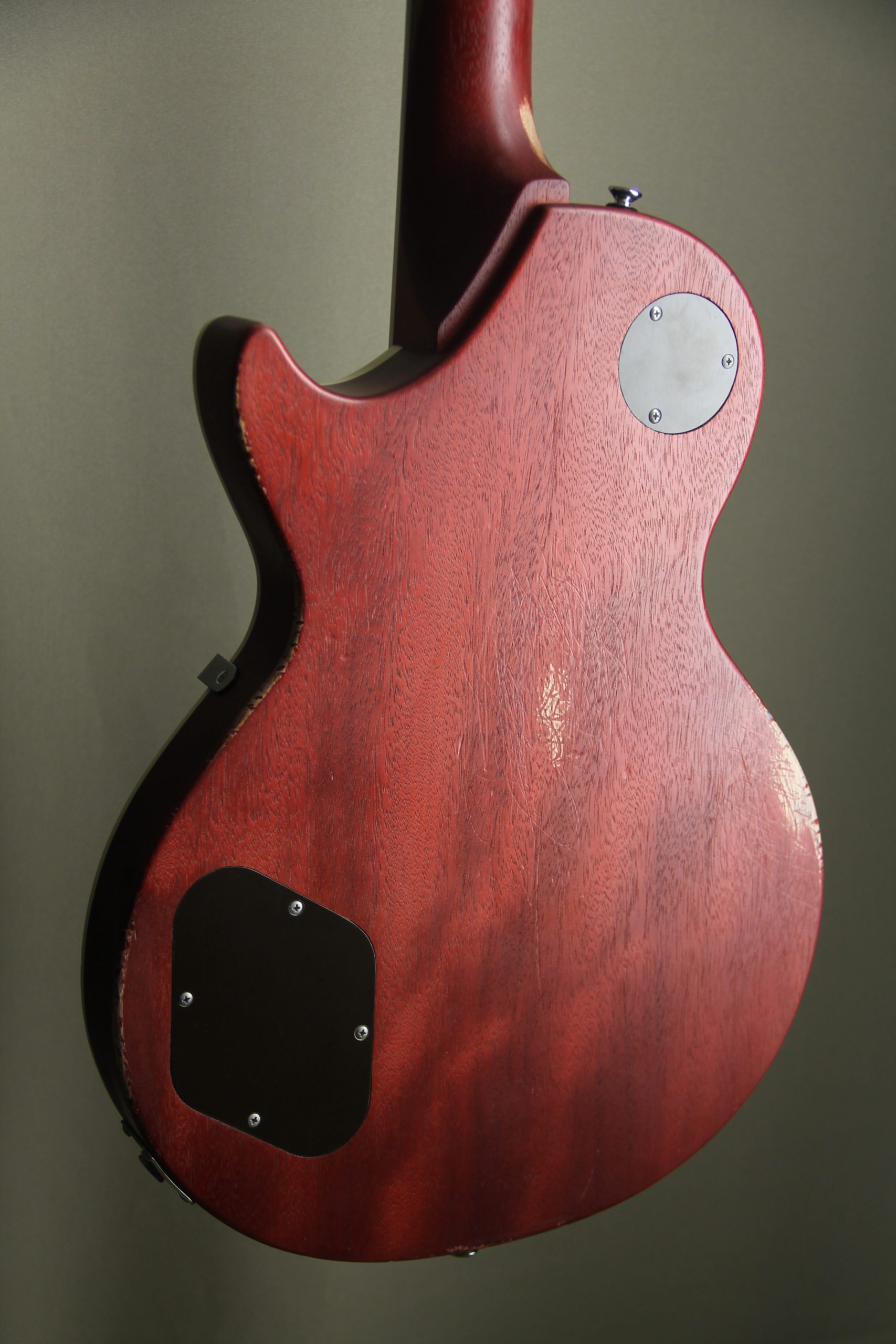

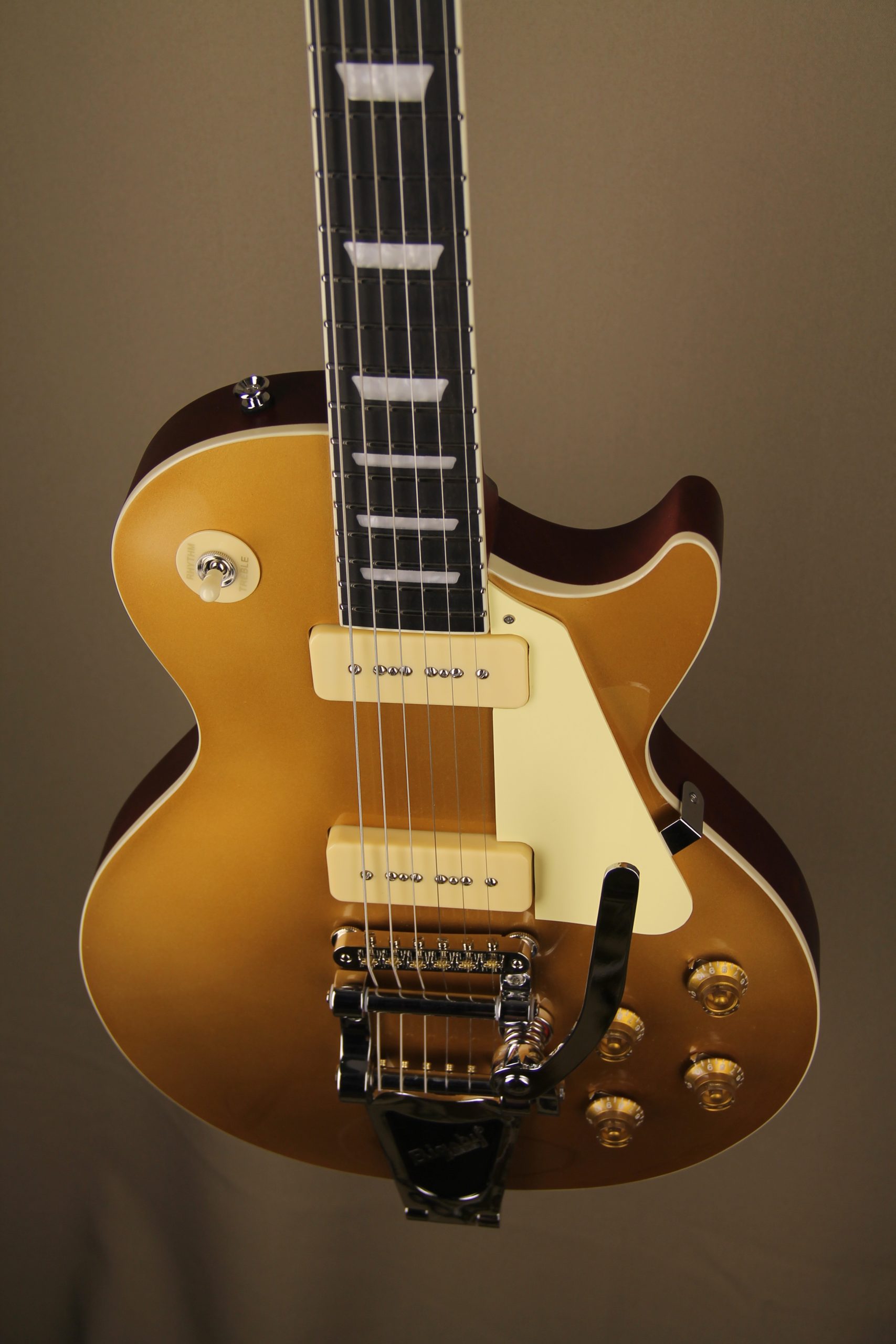

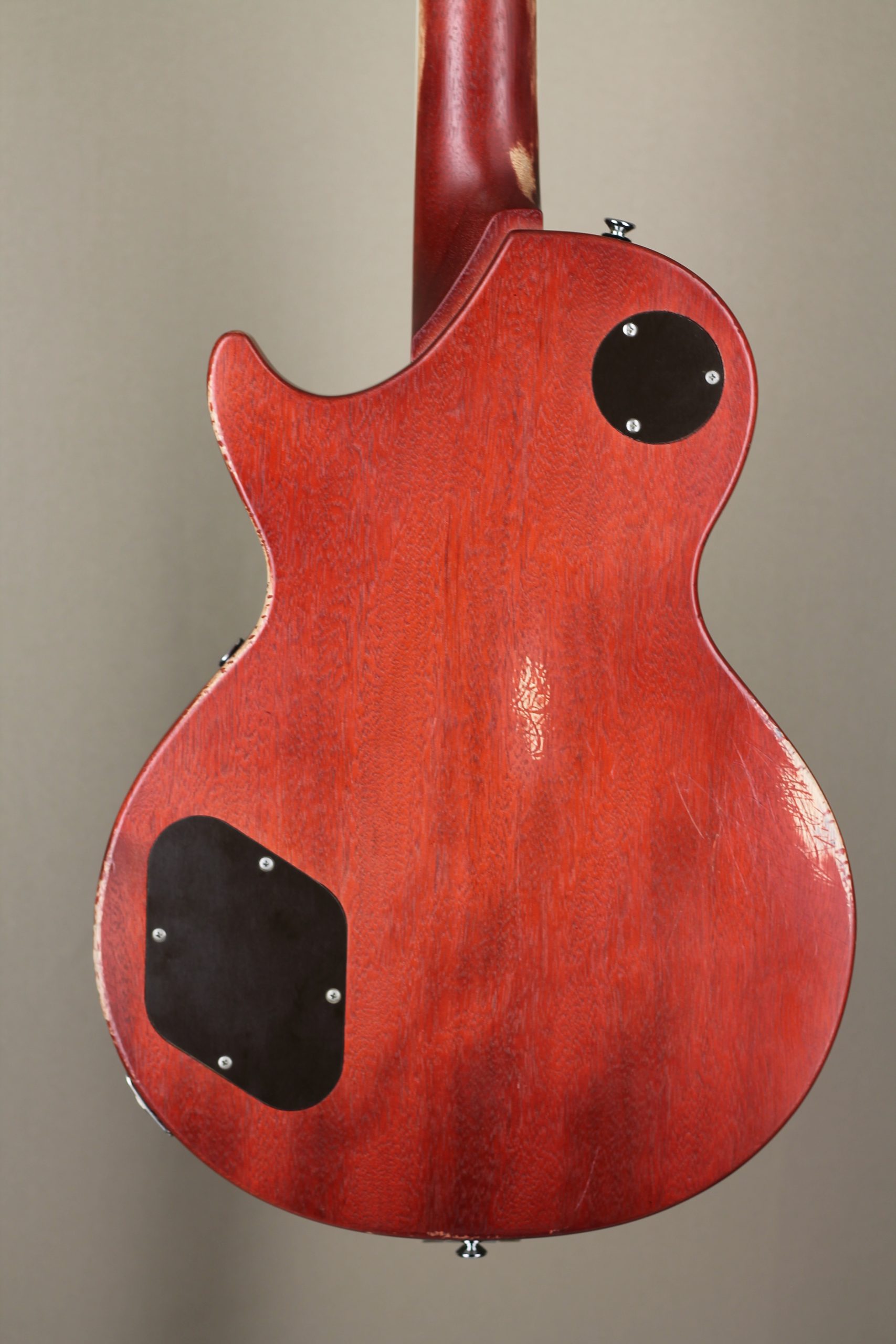

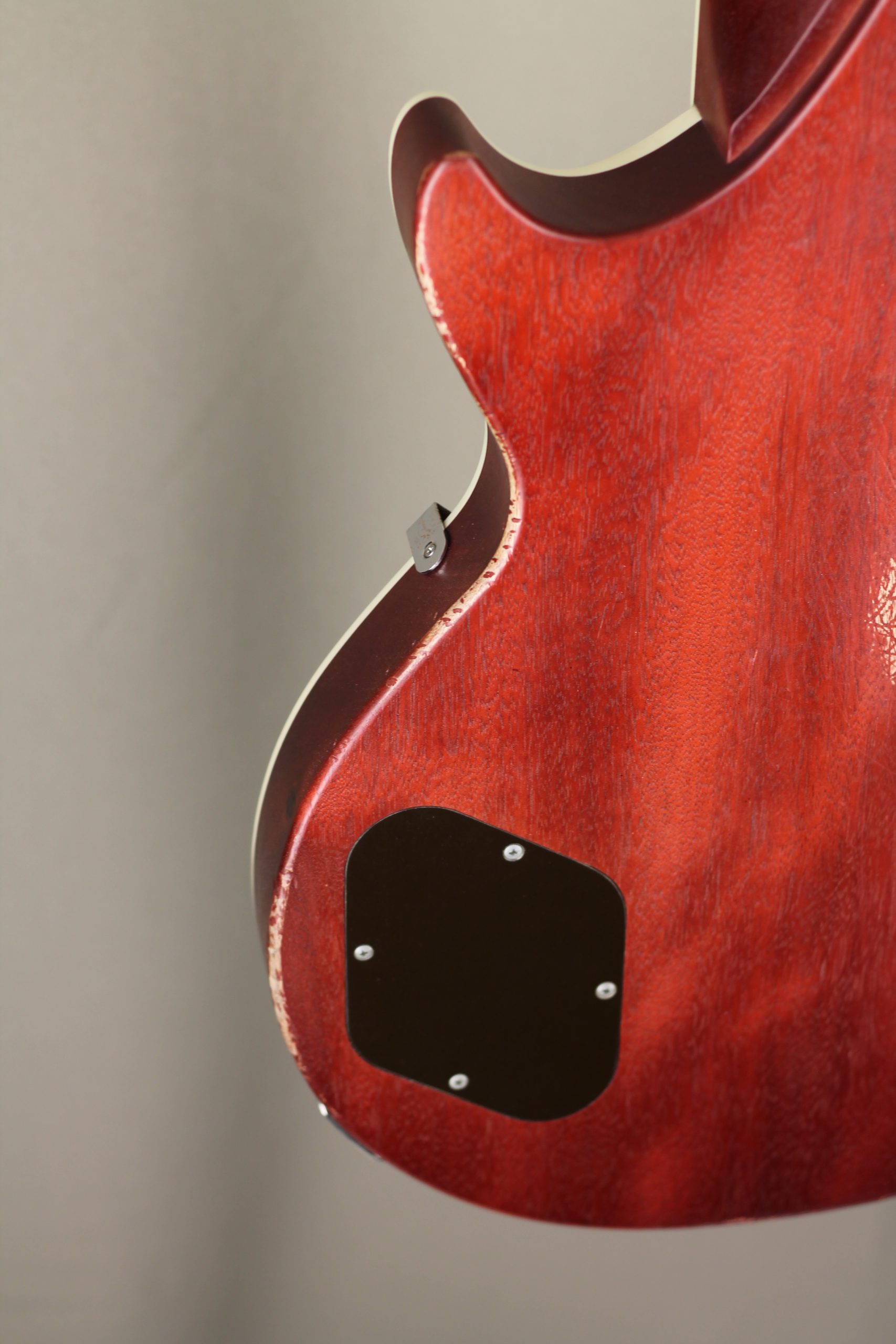

  • Body: mahogany back, maple top

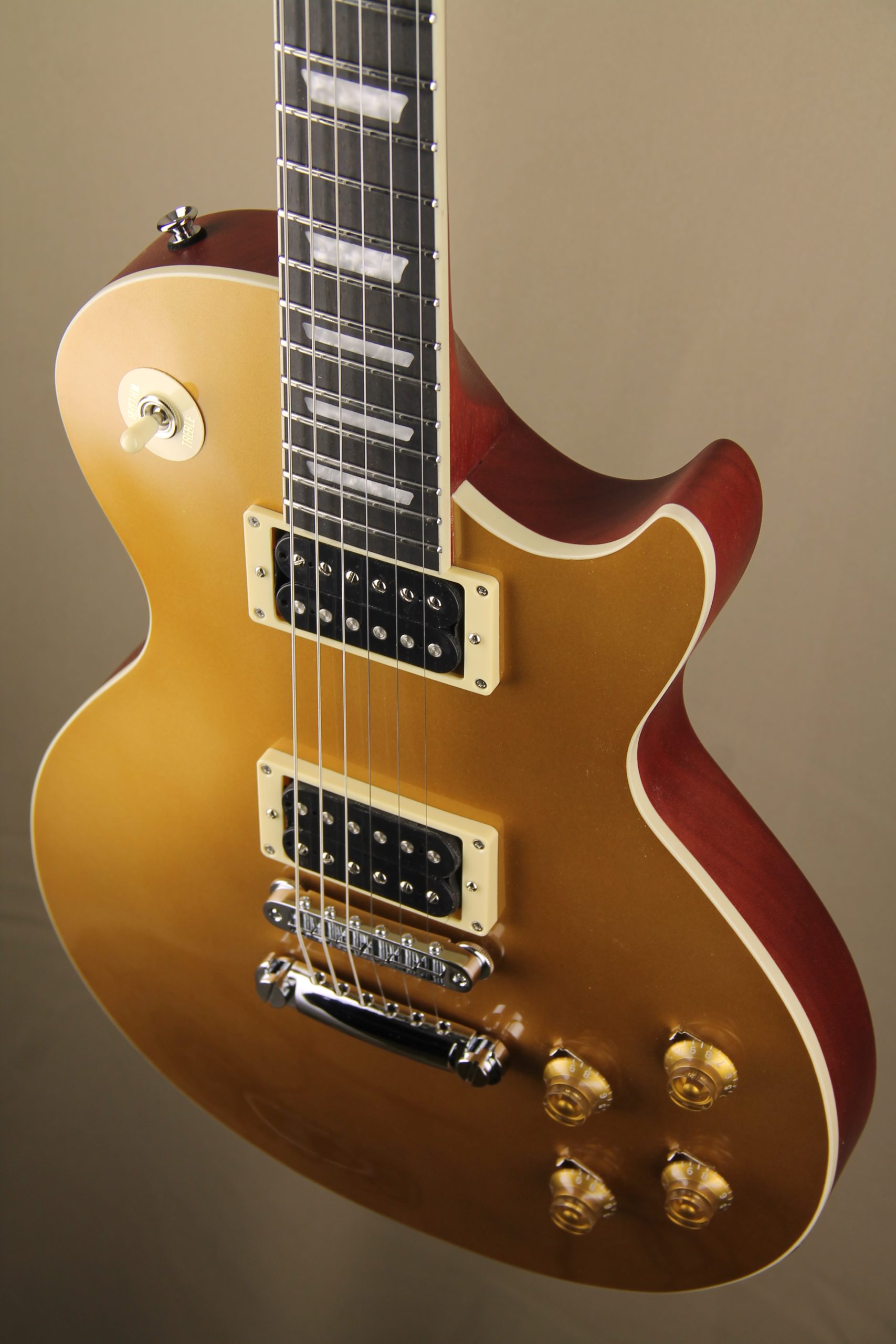

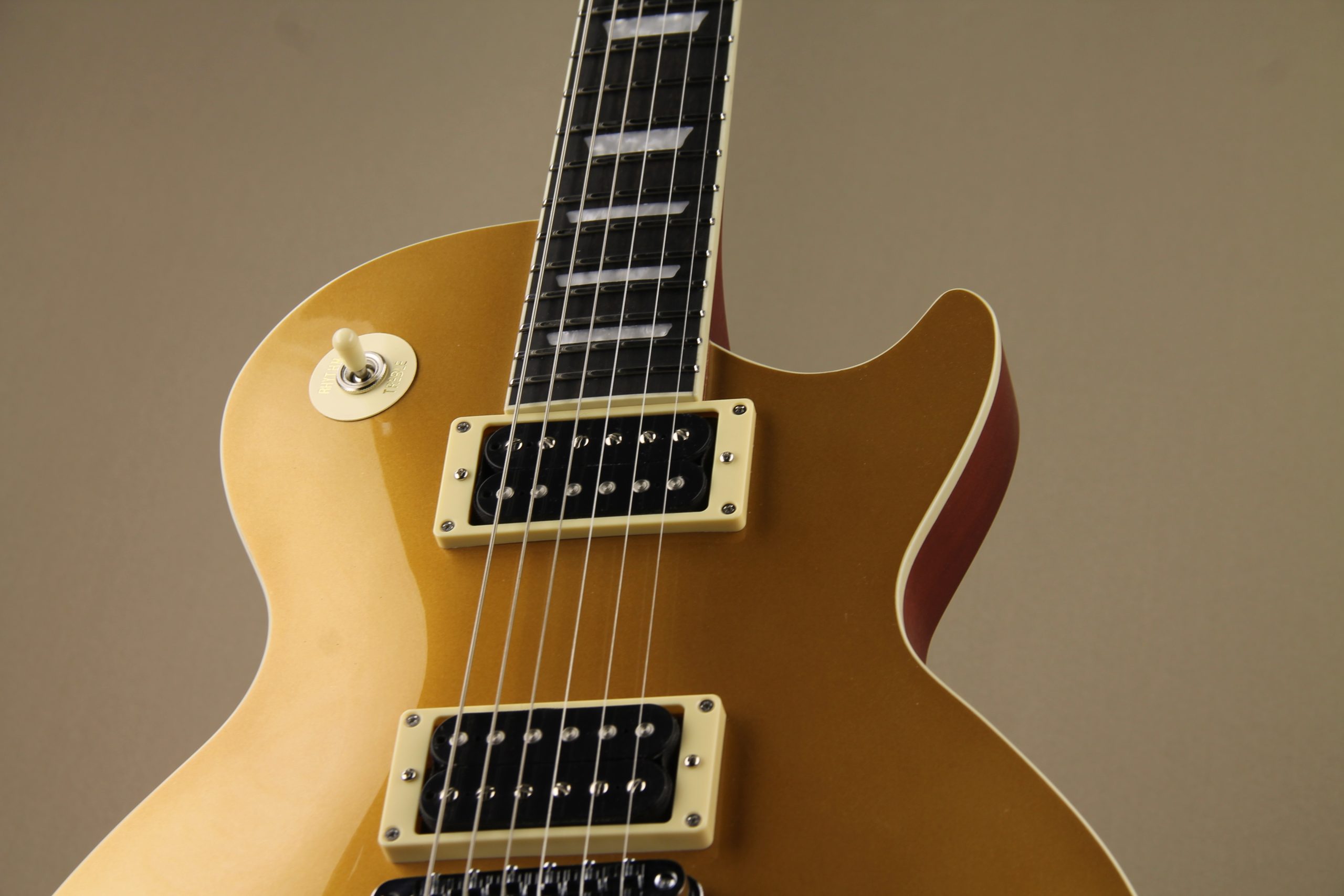

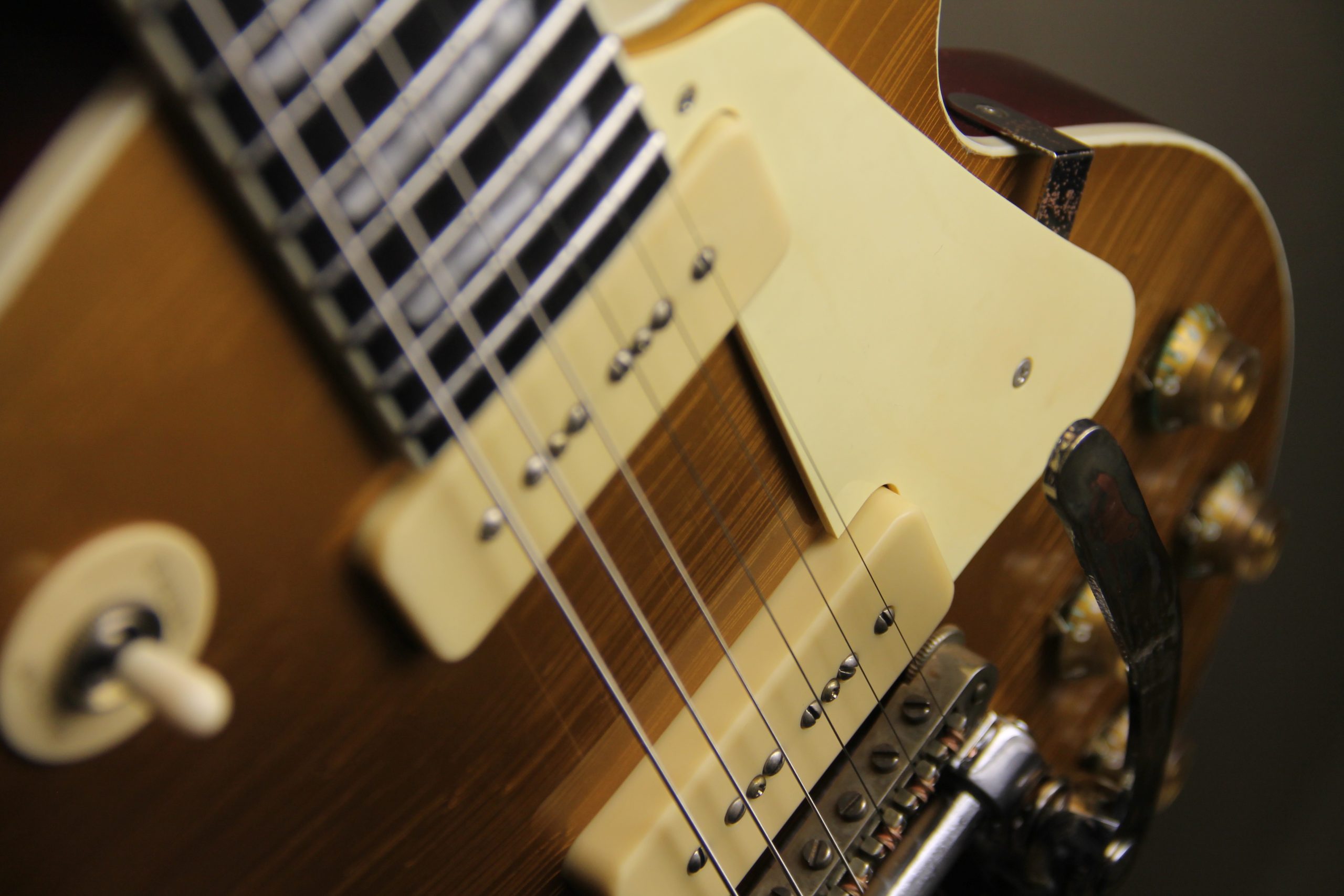

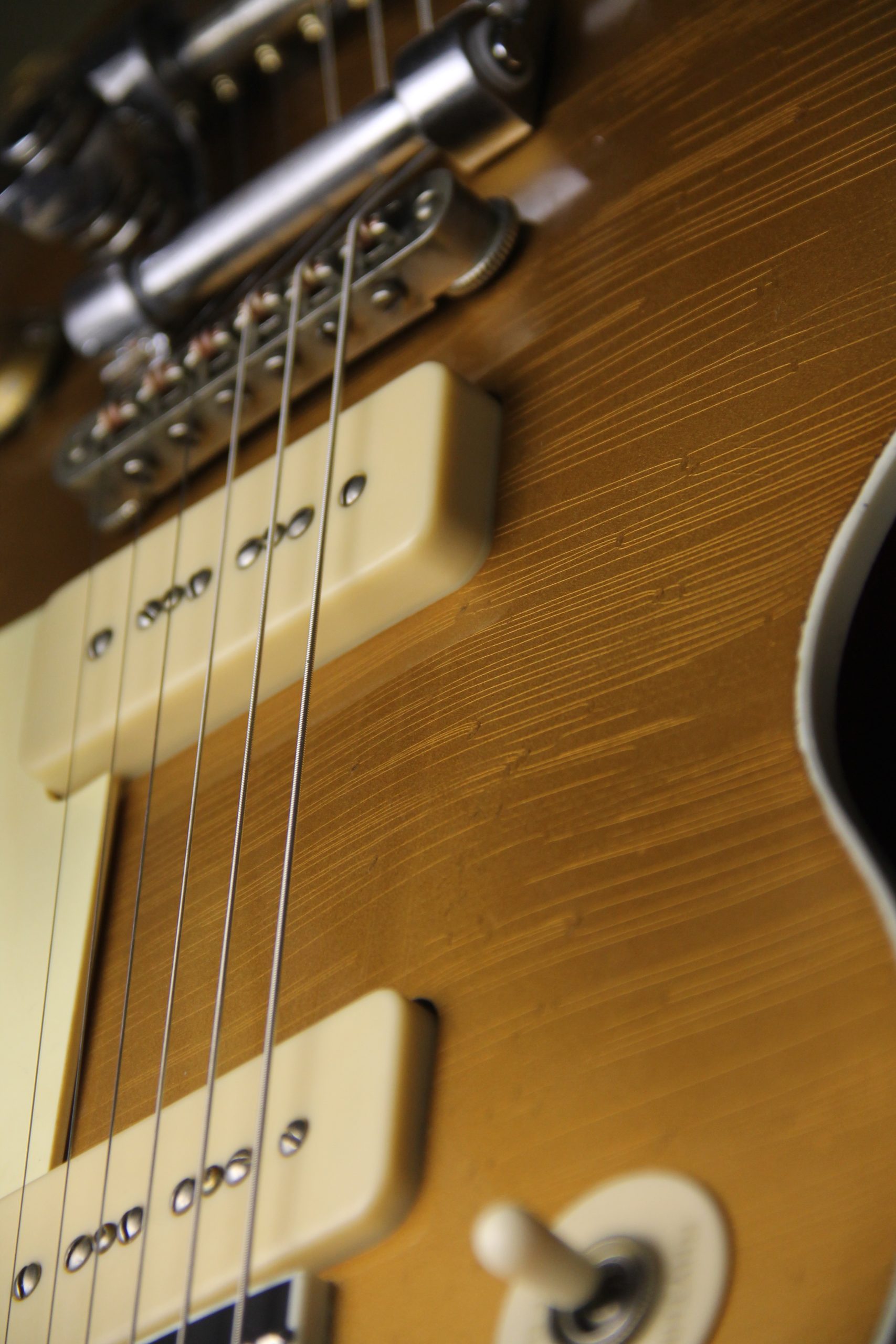

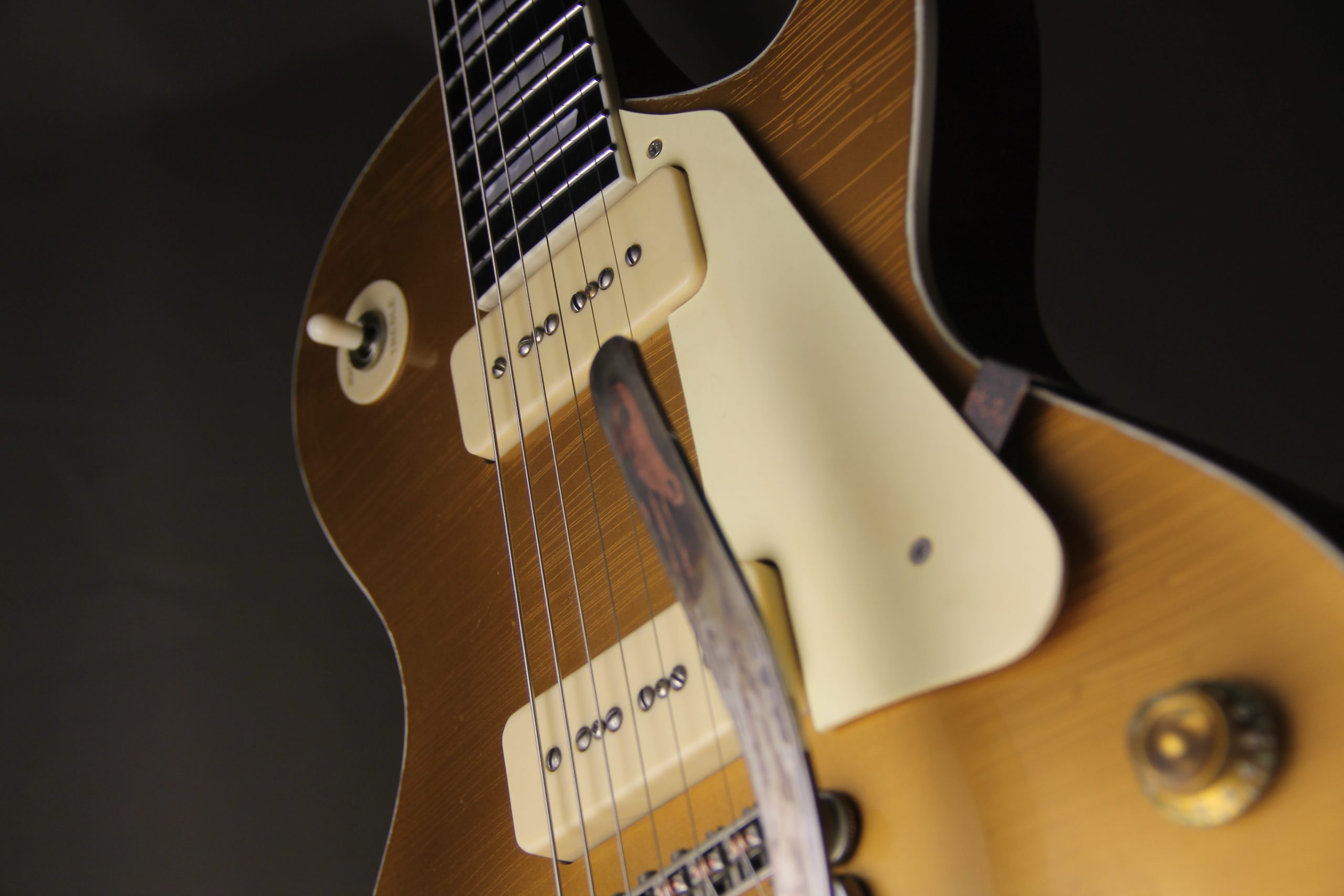

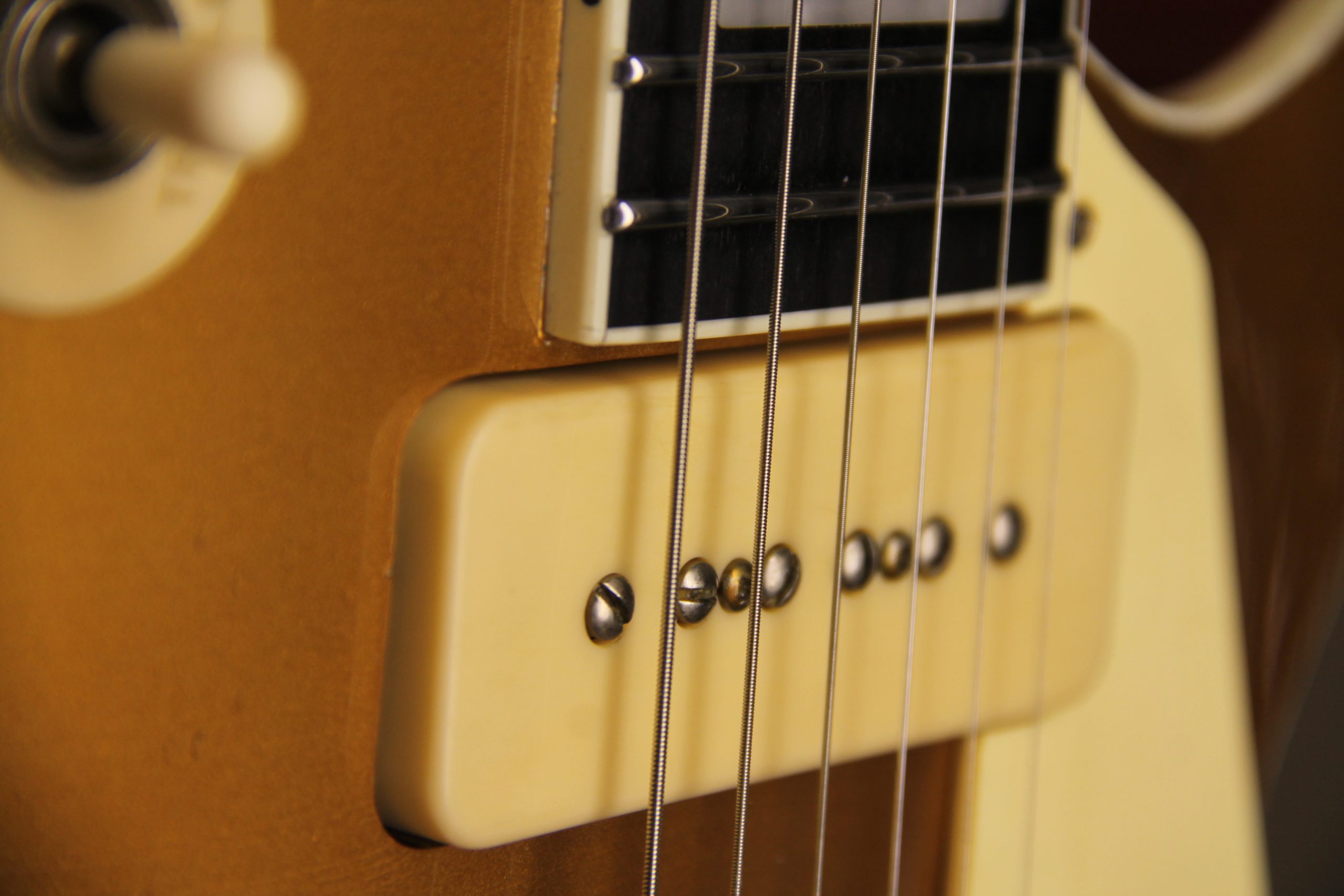

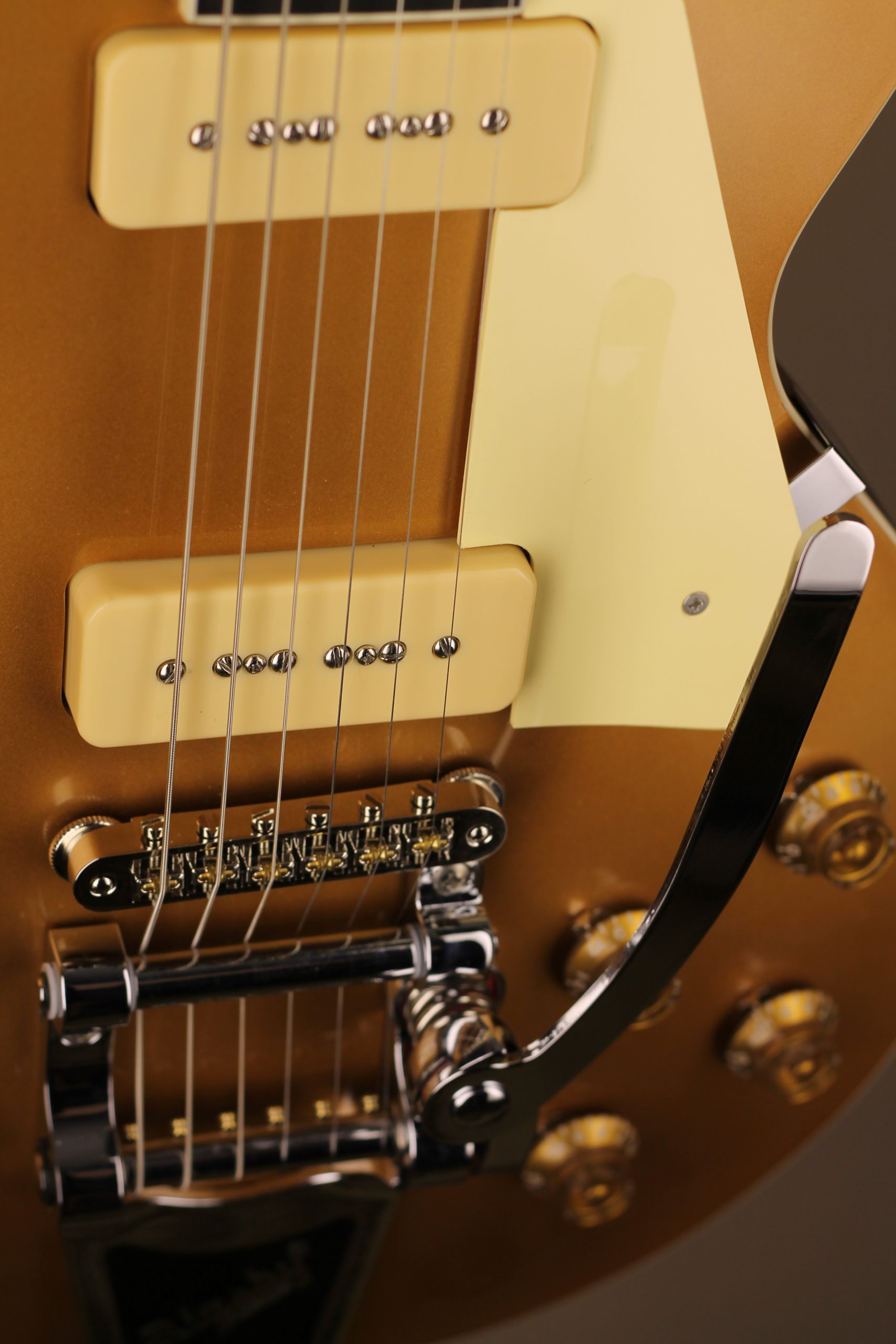

  • Pickups: Goldschmidt H42 neck (7.27kOhm), H43 bridge (8,3 kOhm) PAF style, alnico V or II magnets

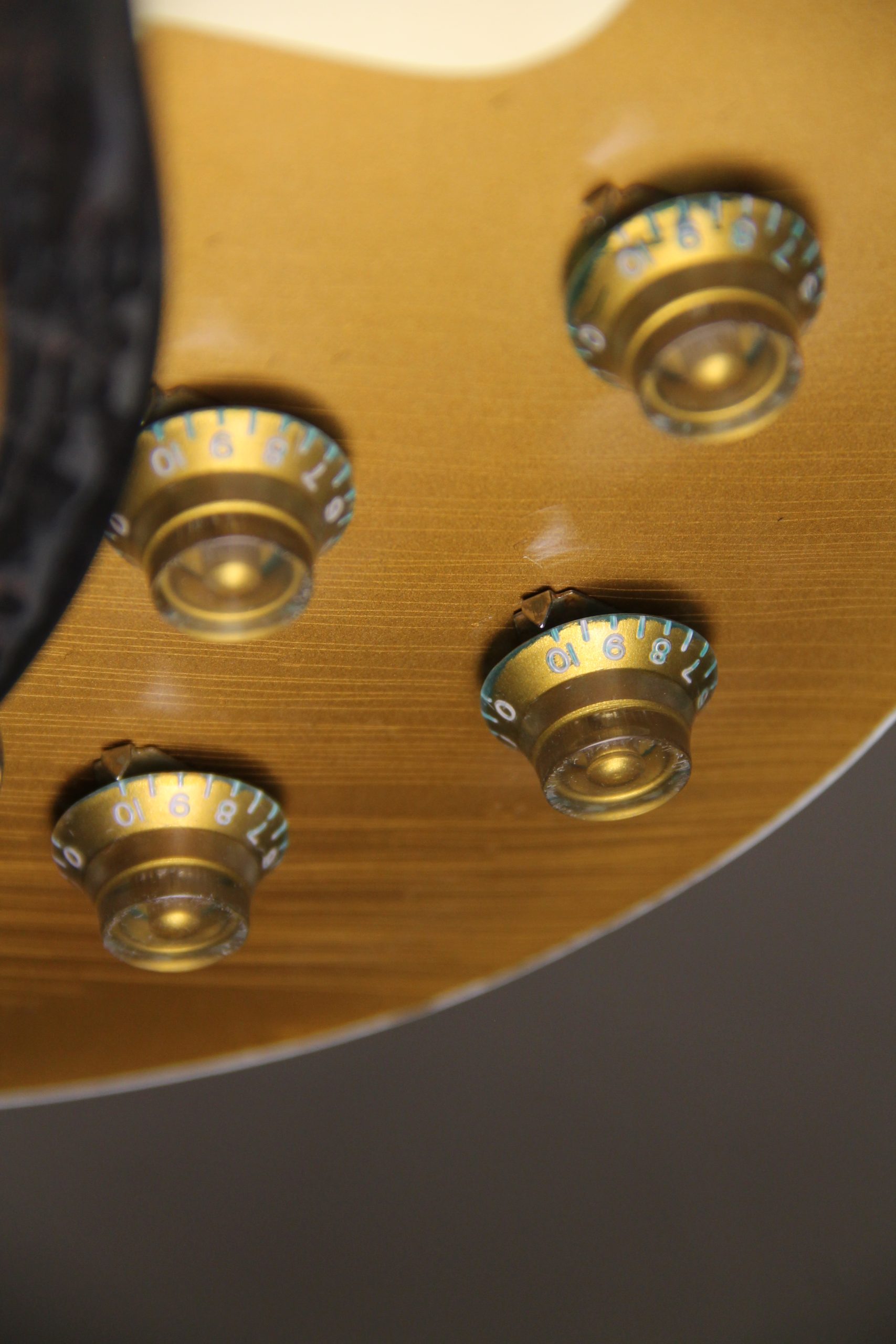

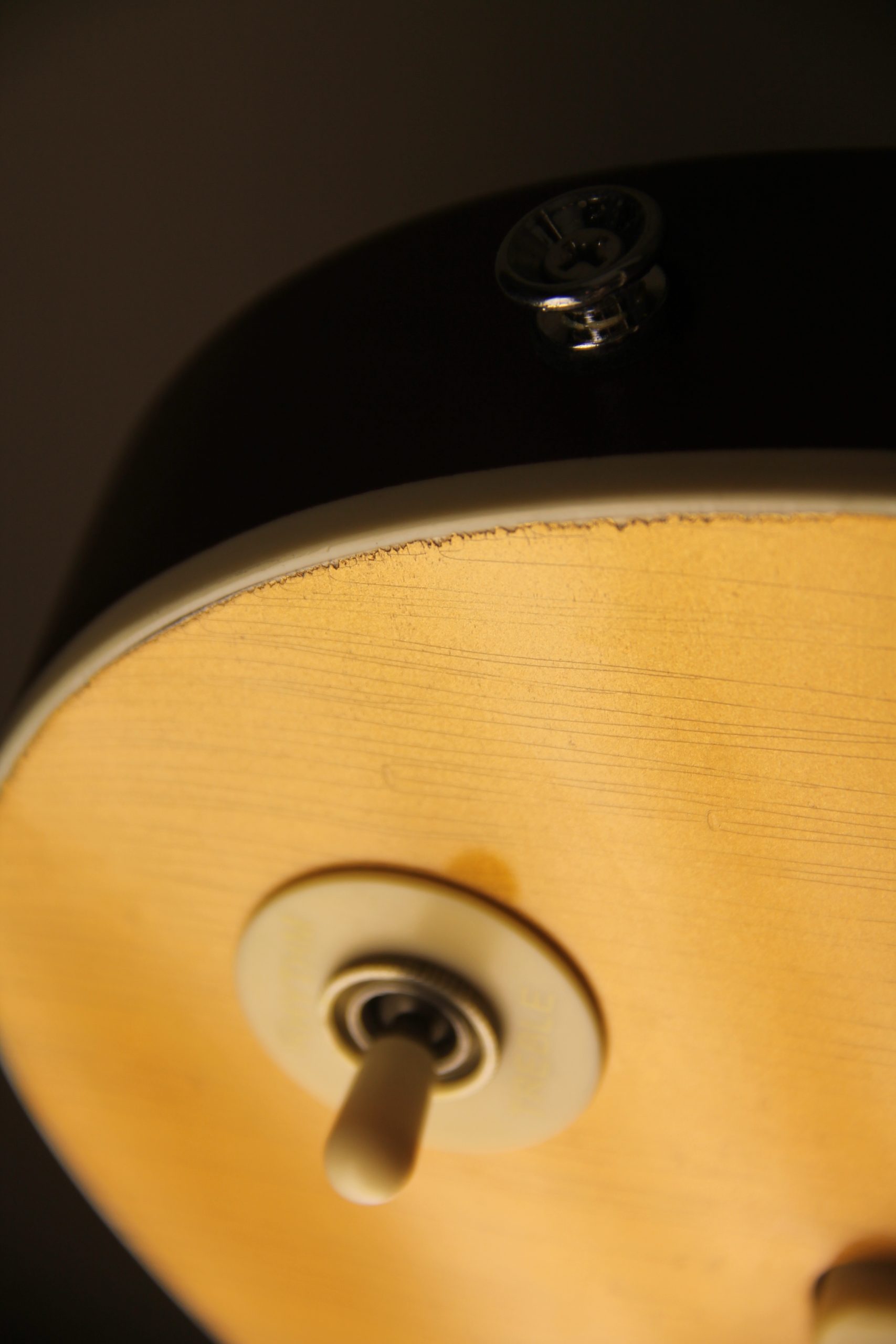

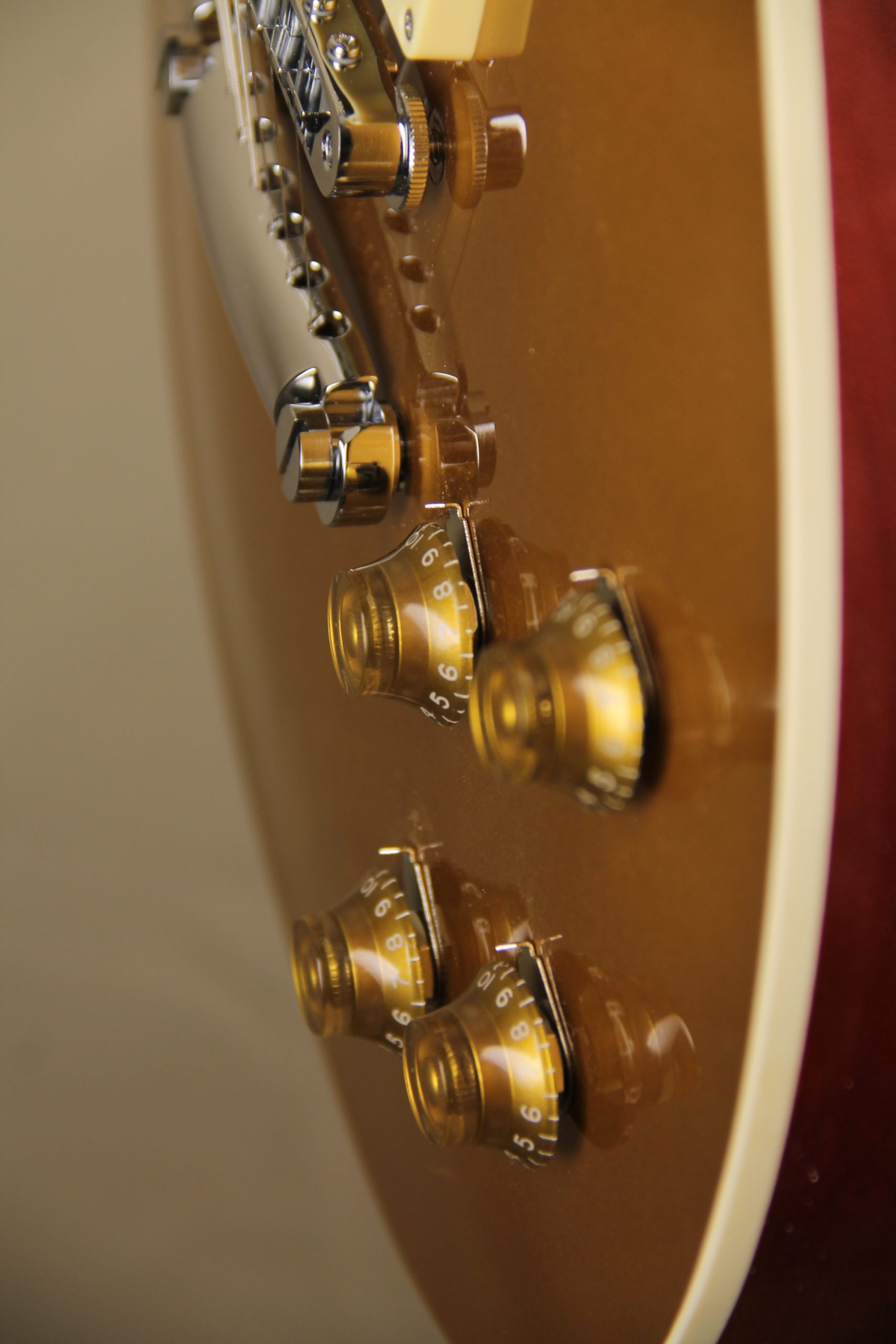

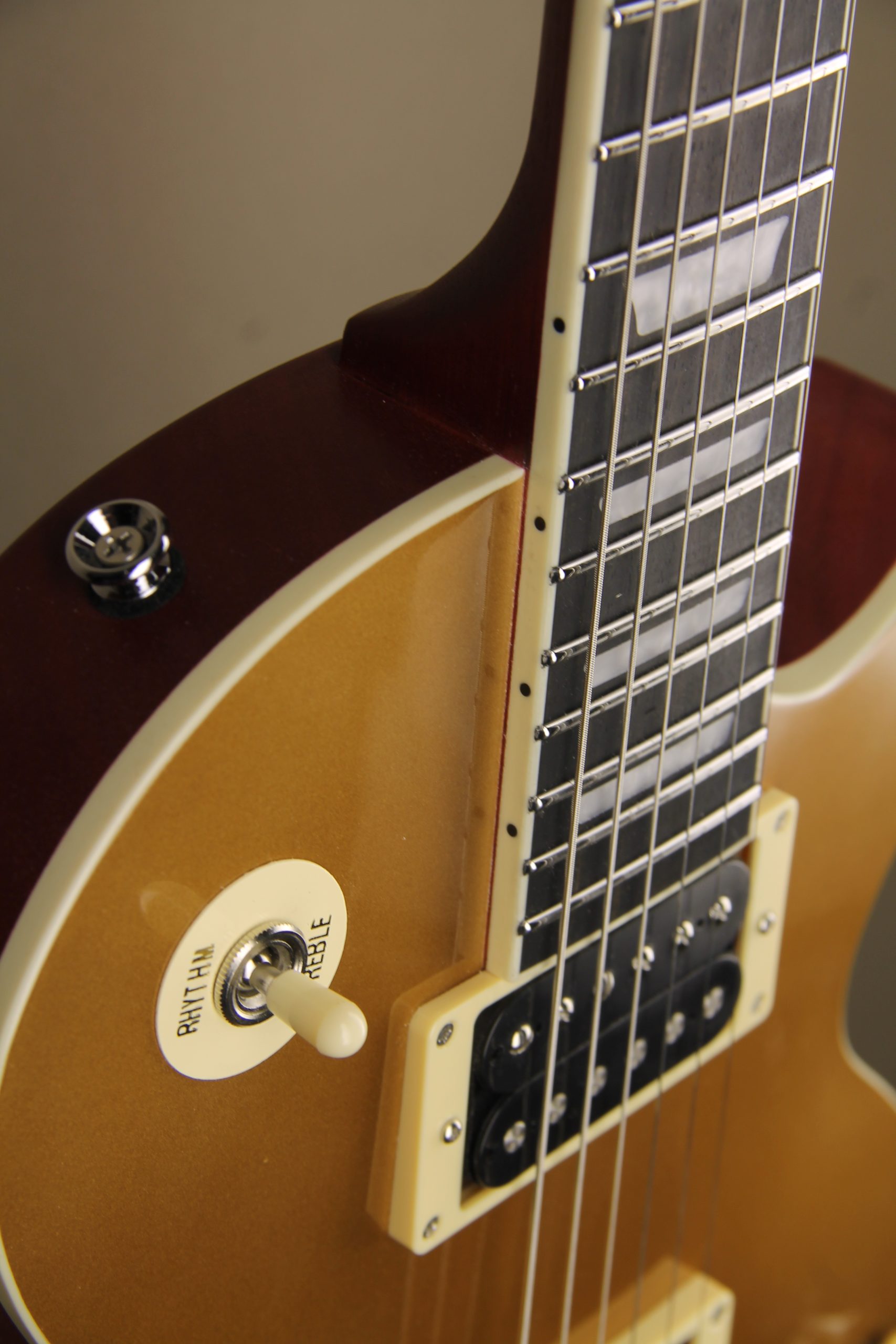

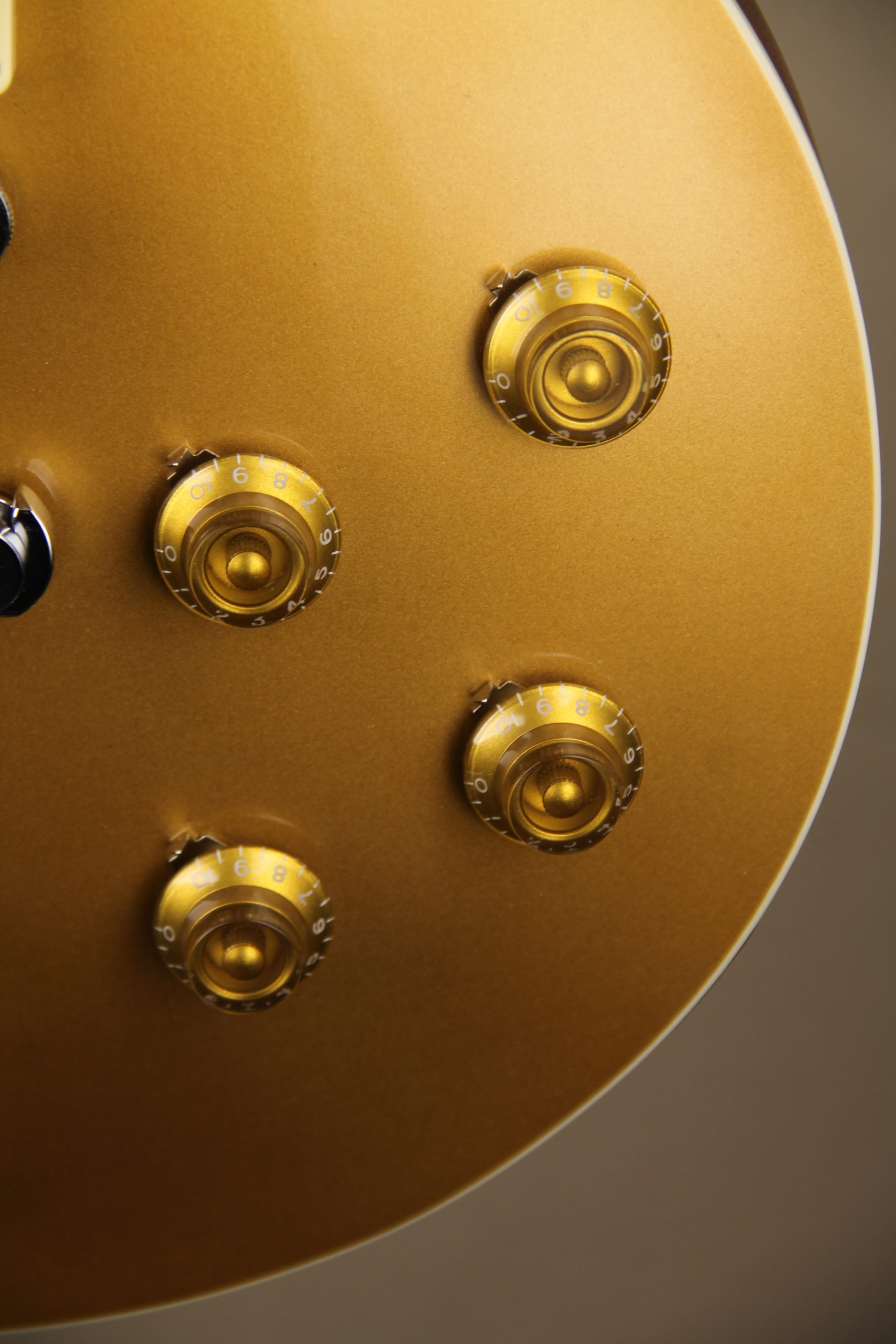

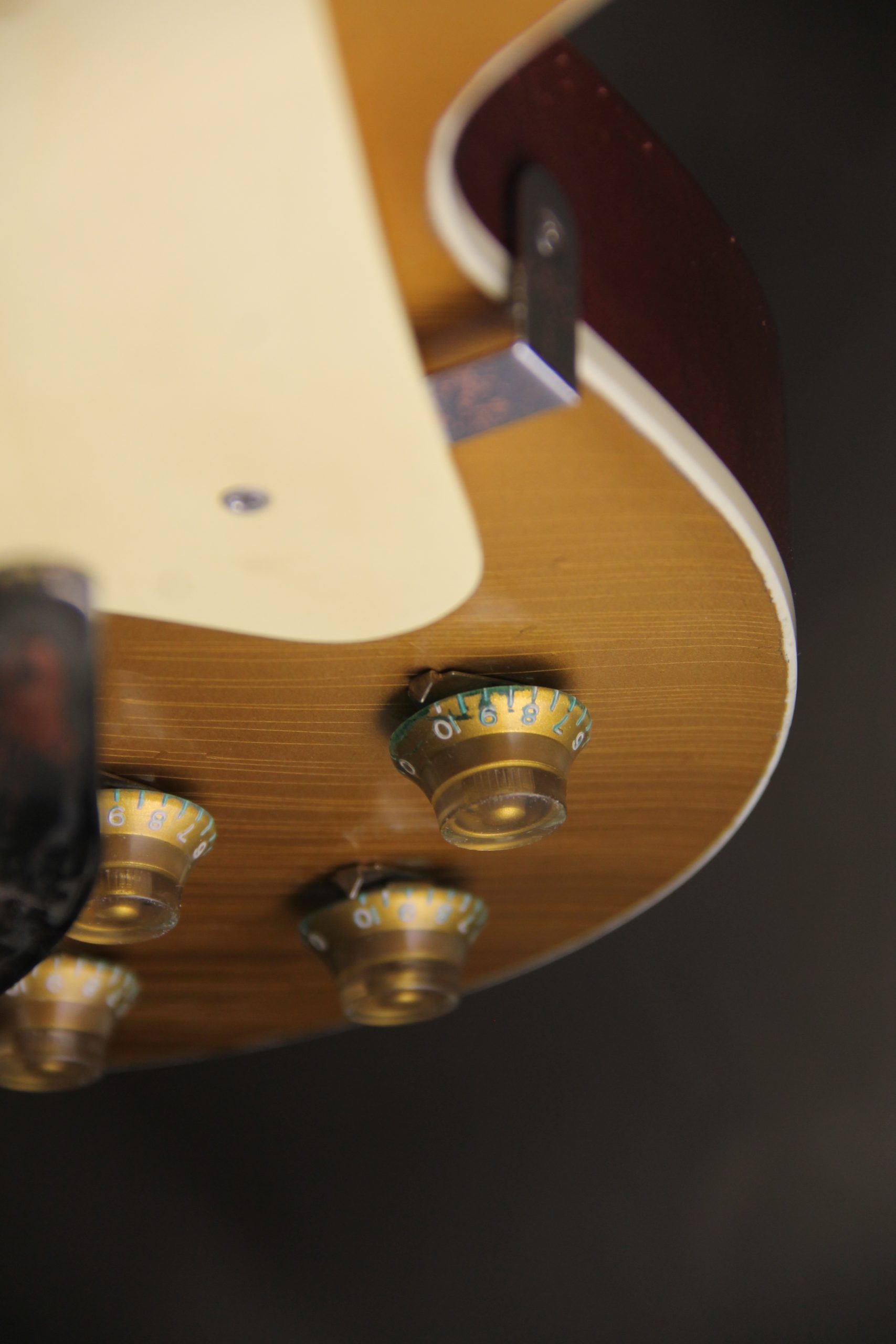

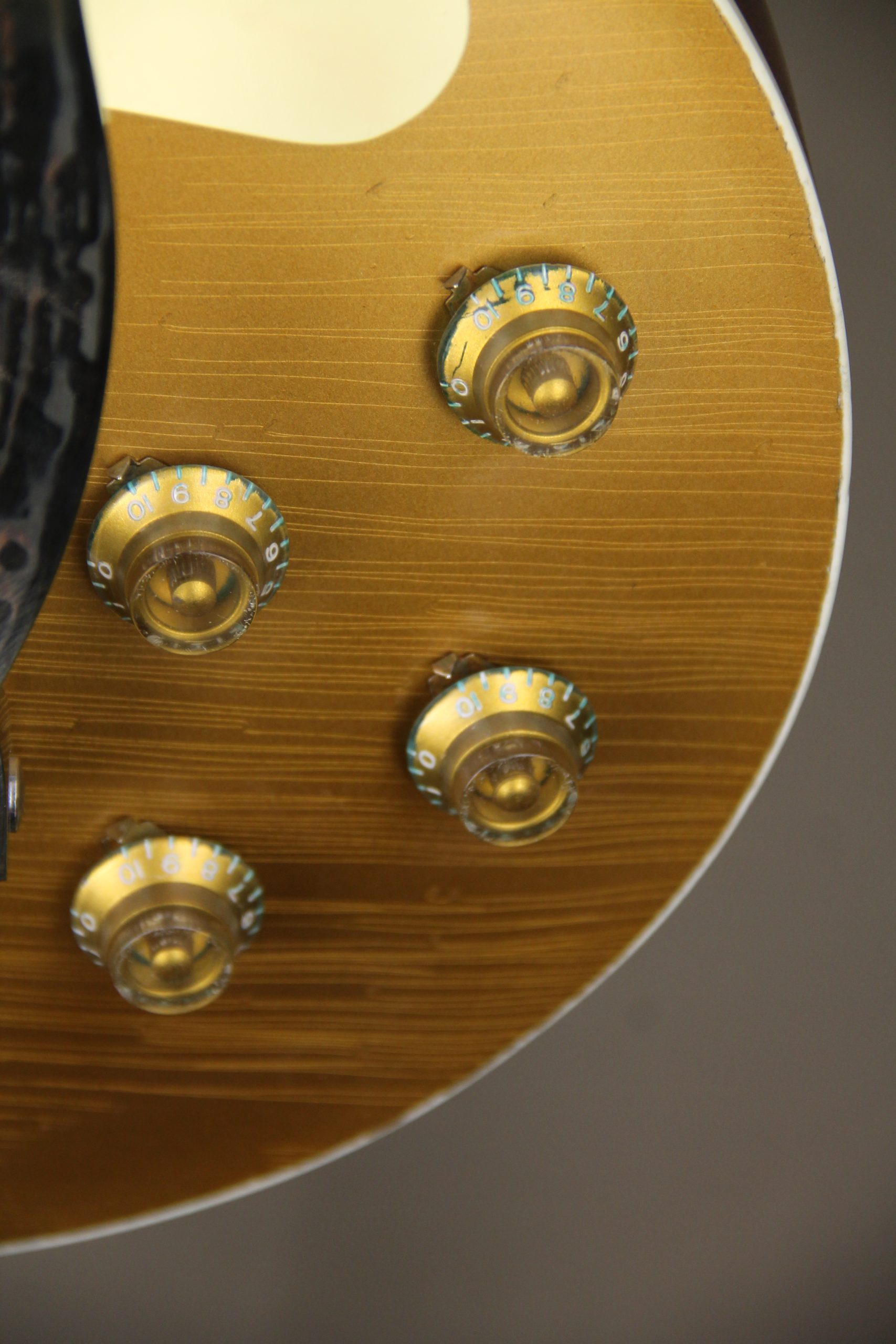

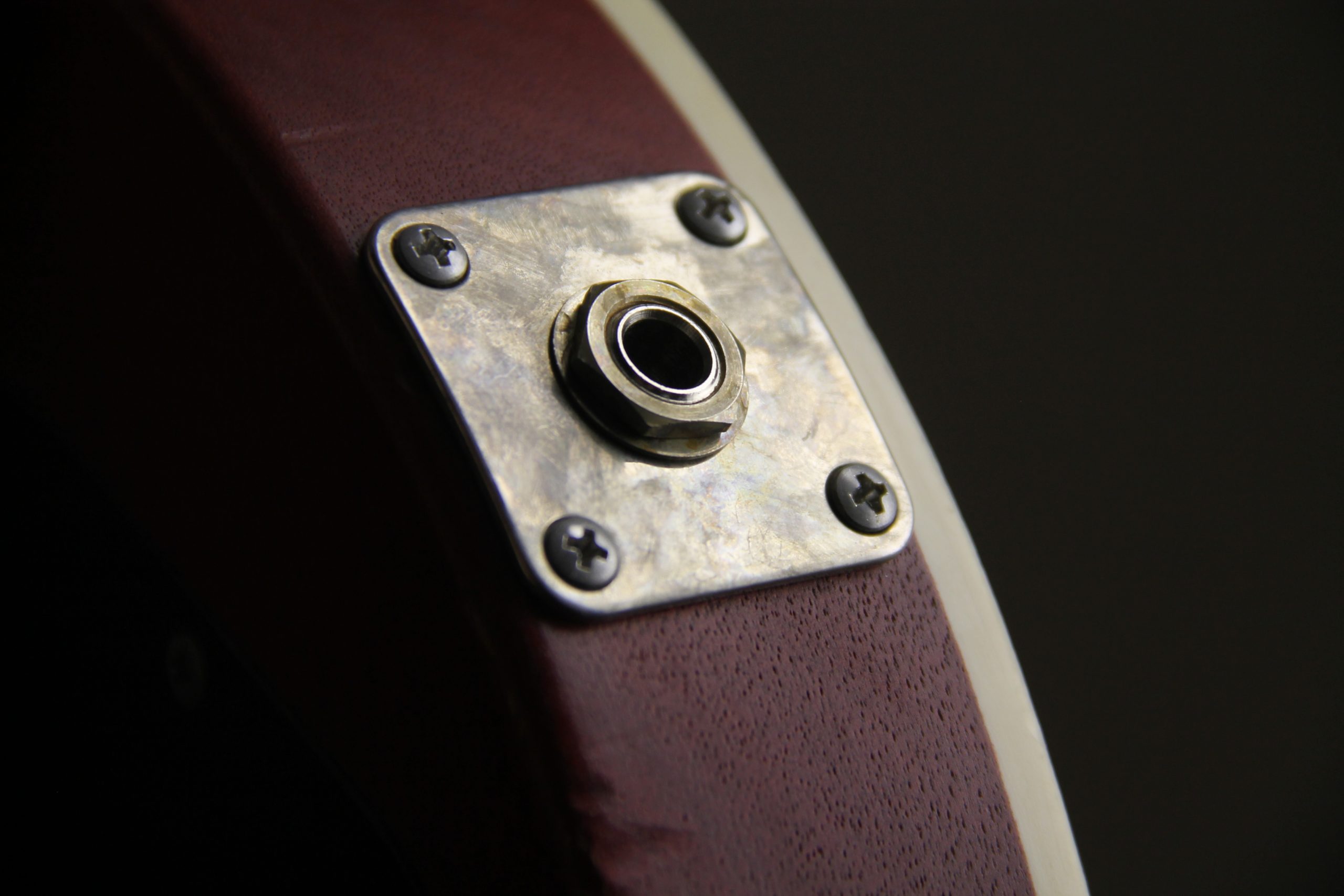

  • Electronics: 3 way Switchcraft switch, 2xVolume, 2xTone, orange drop capacitors, CTS pots

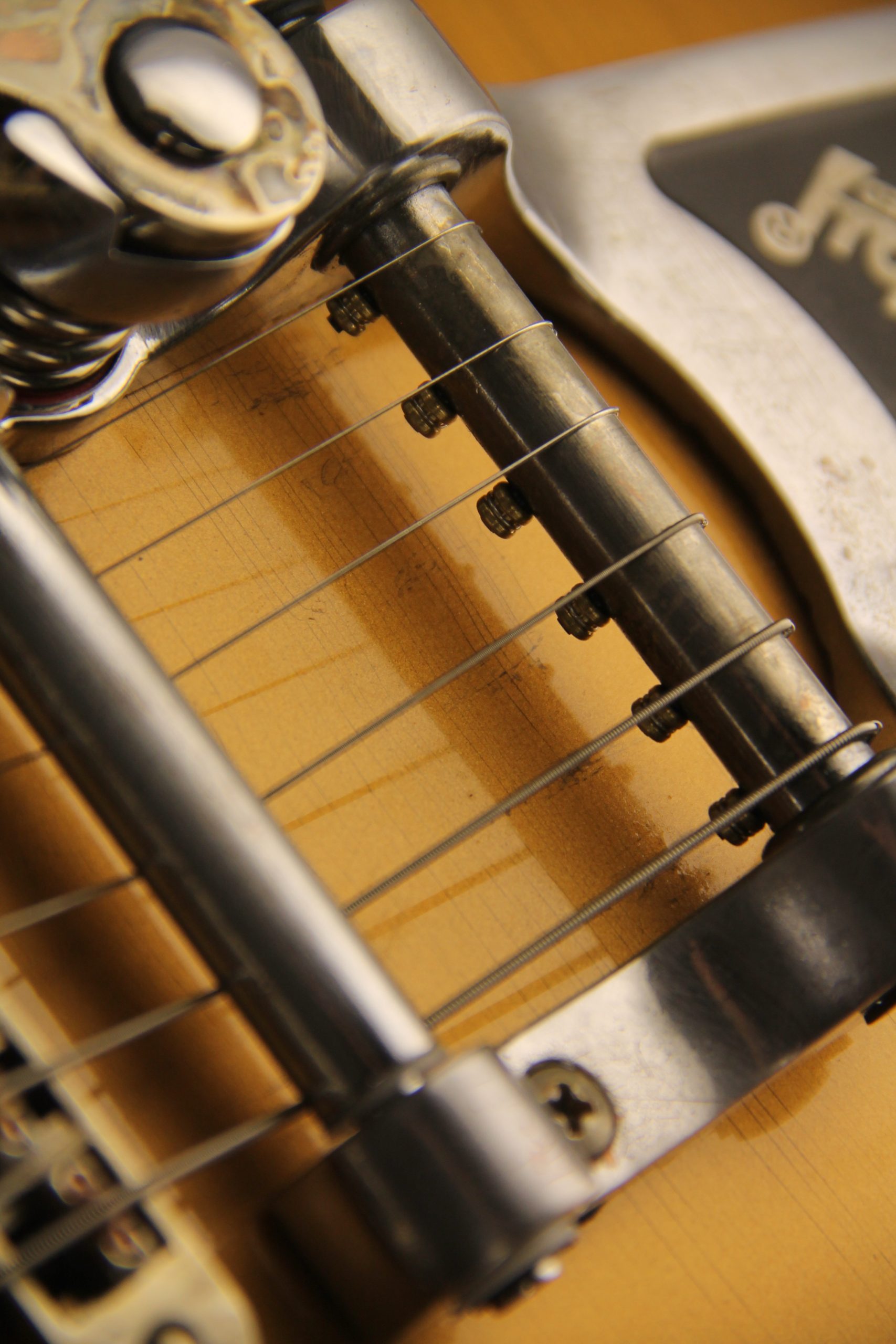

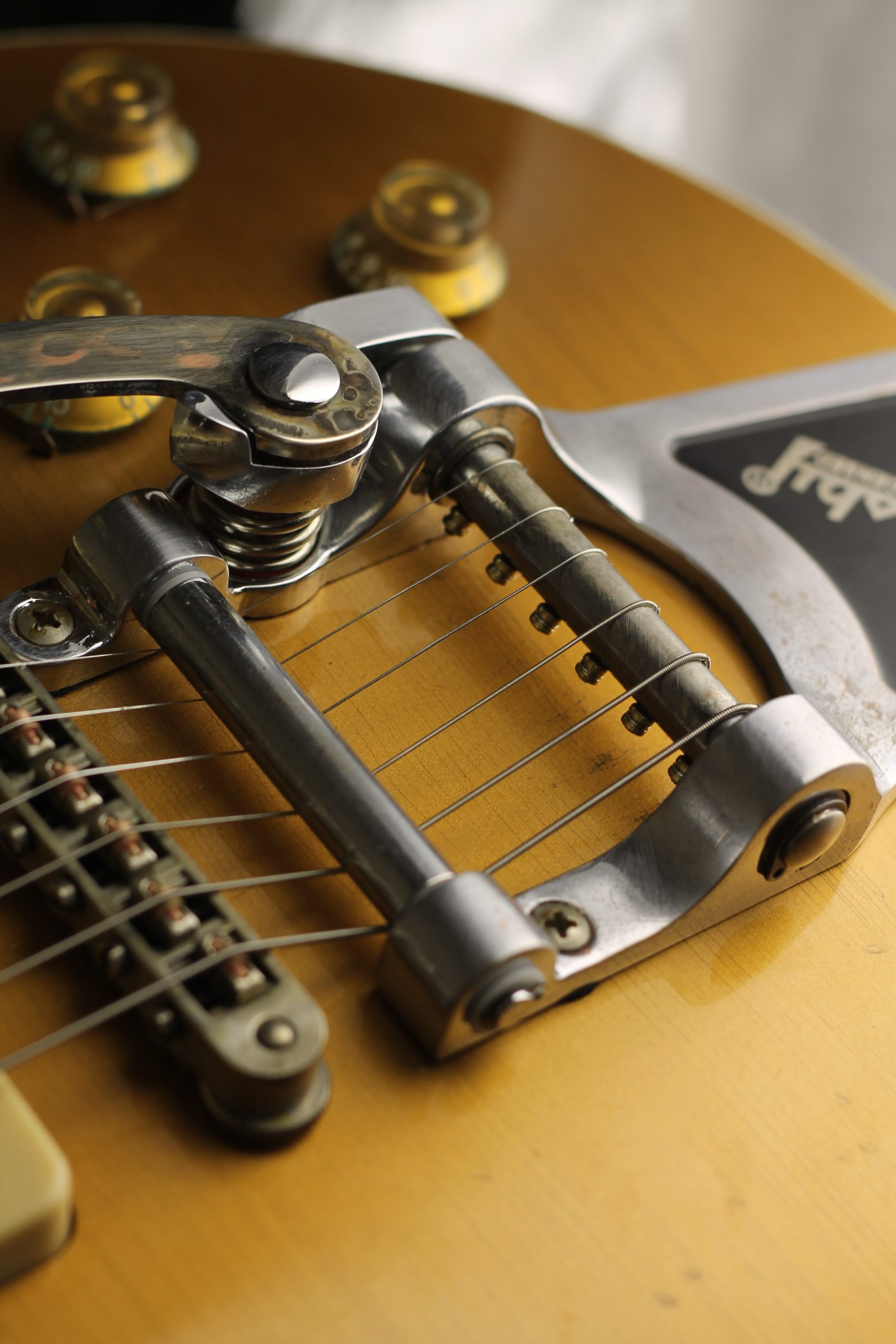

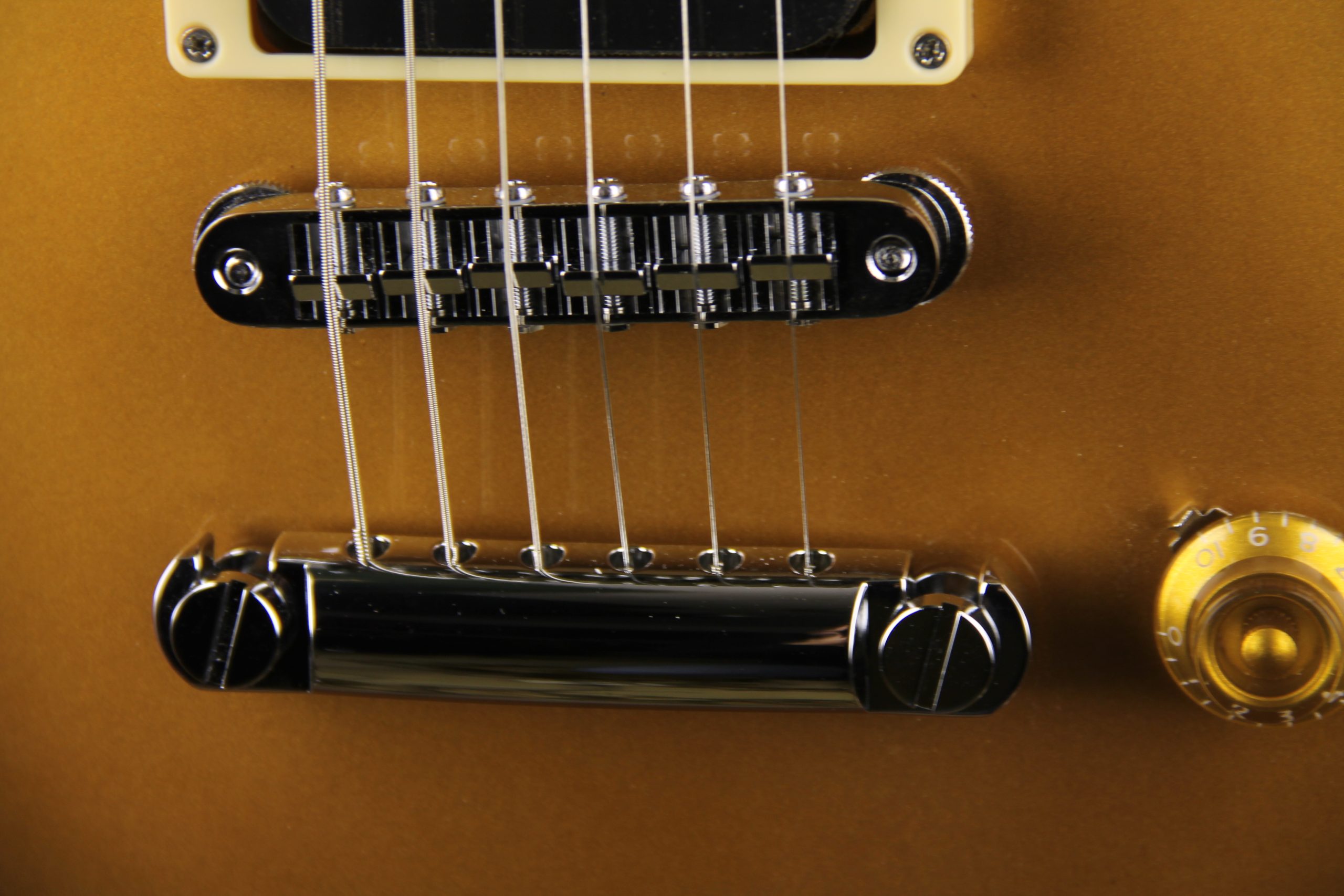

  • Bridge: Gotoh

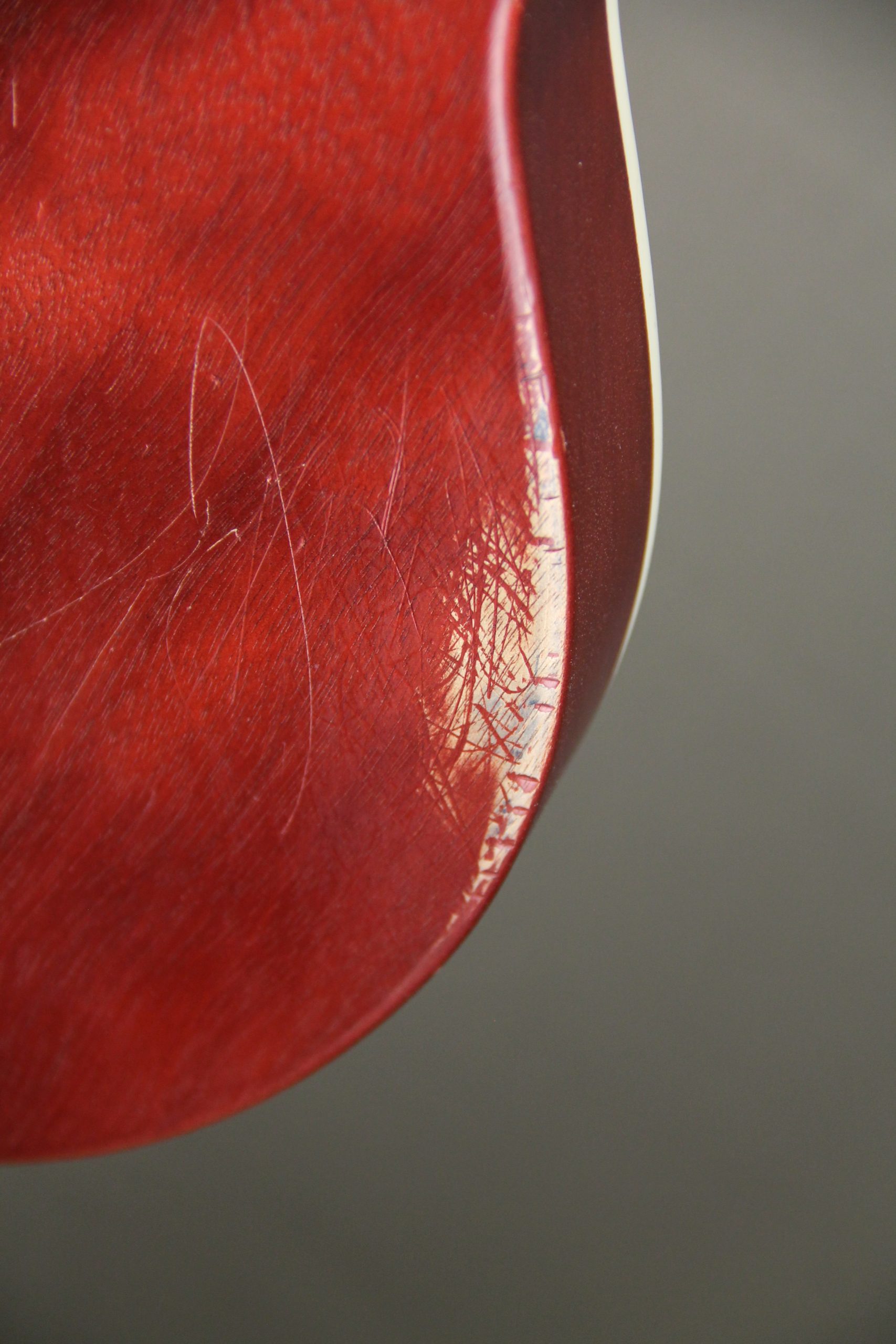

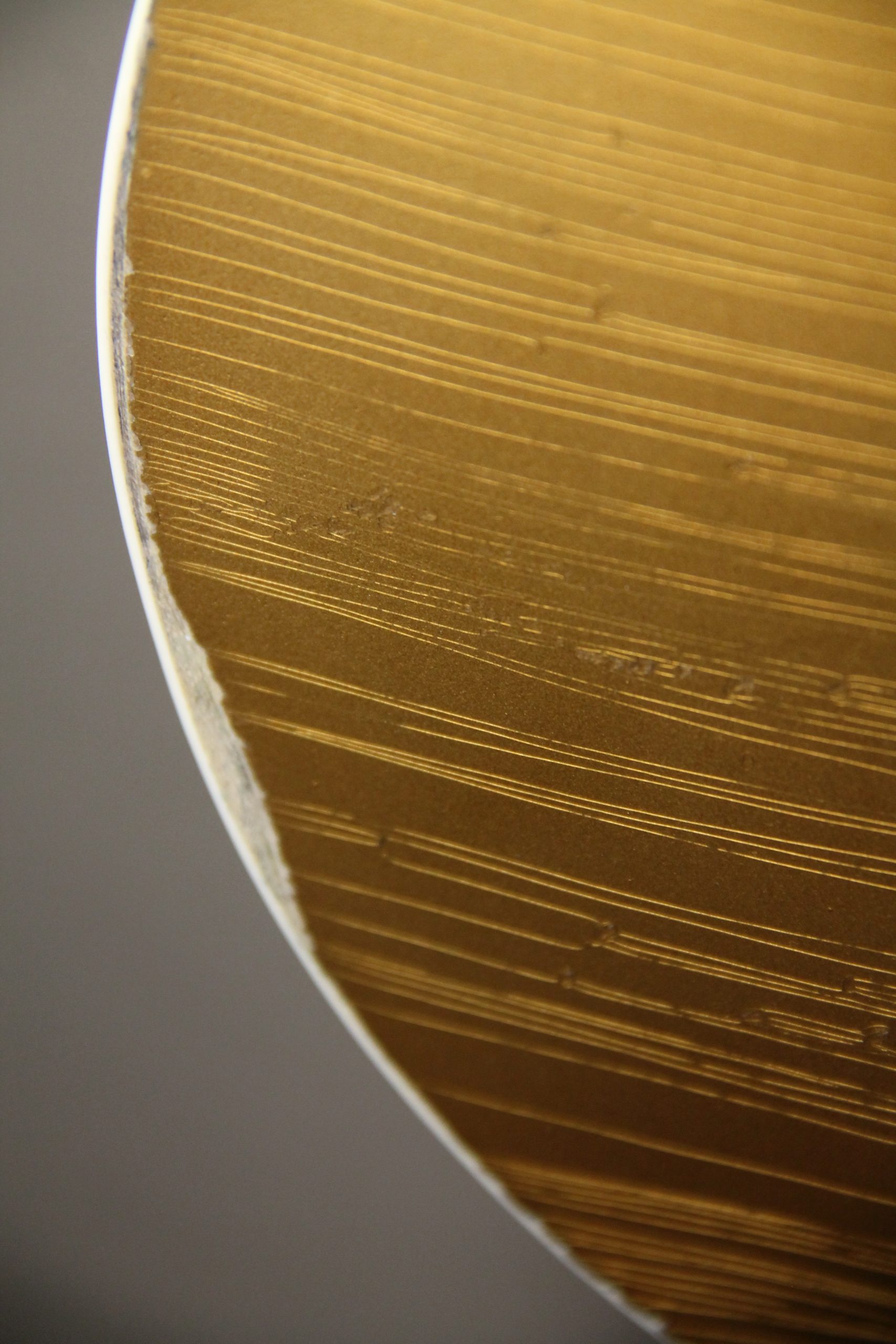

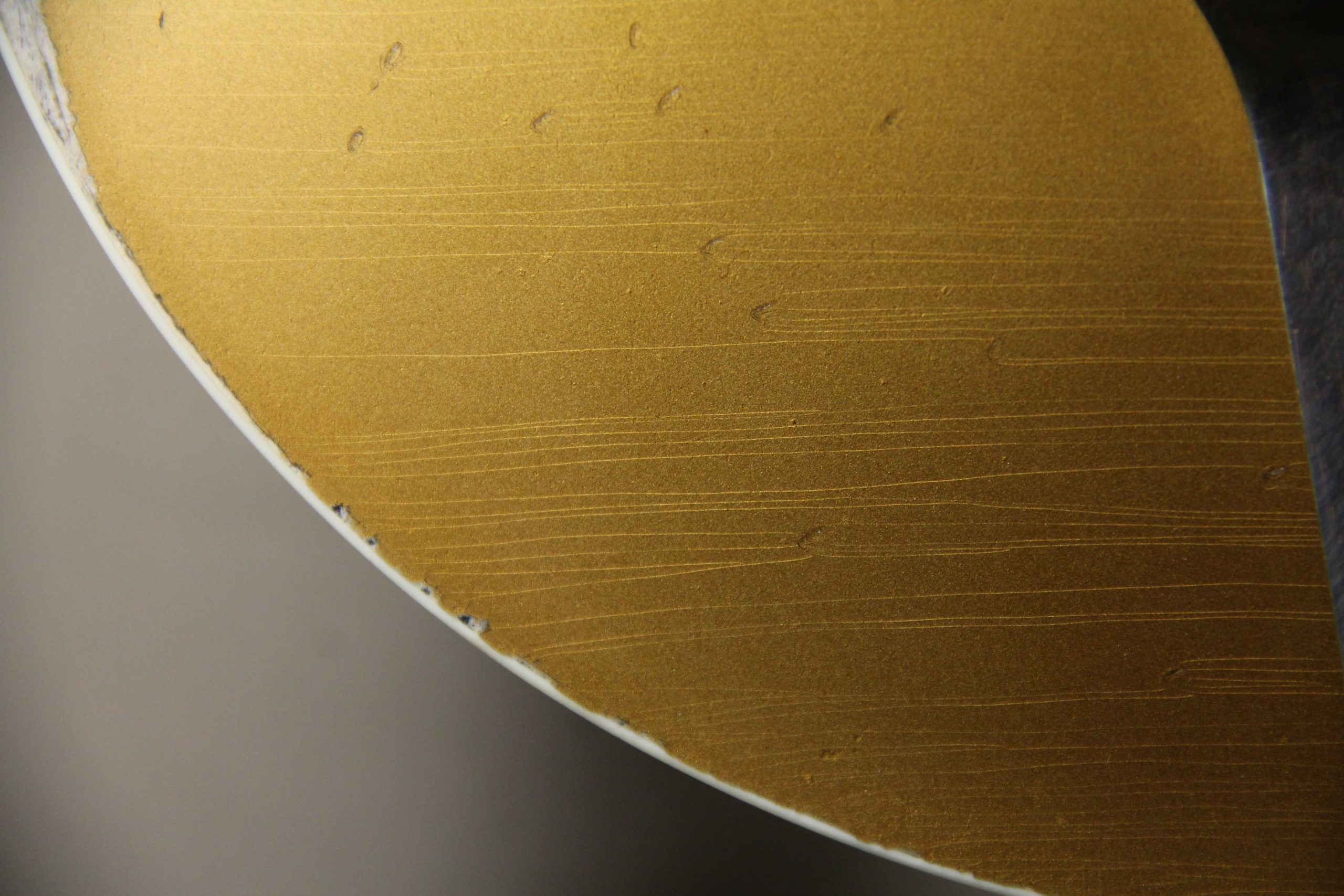

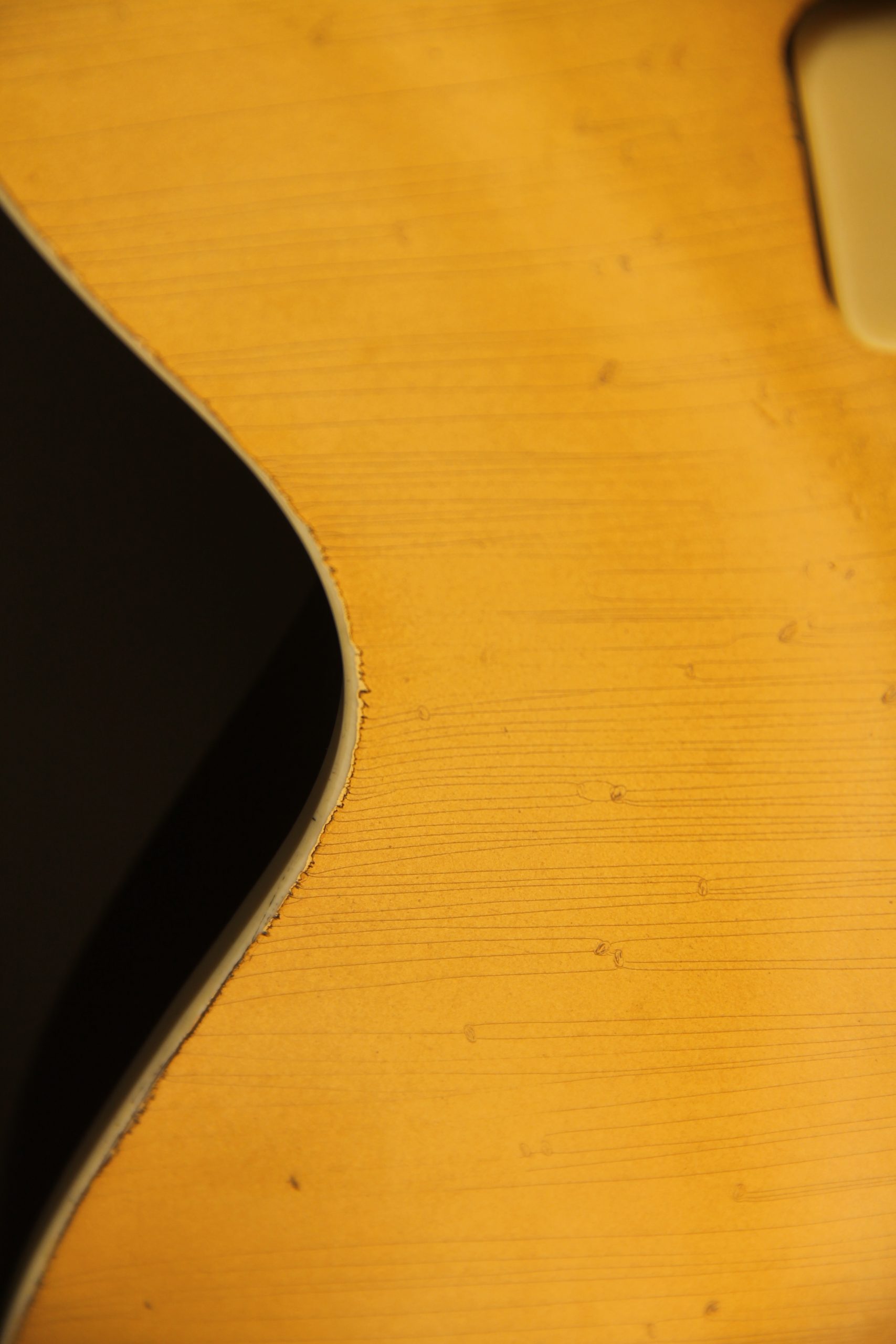

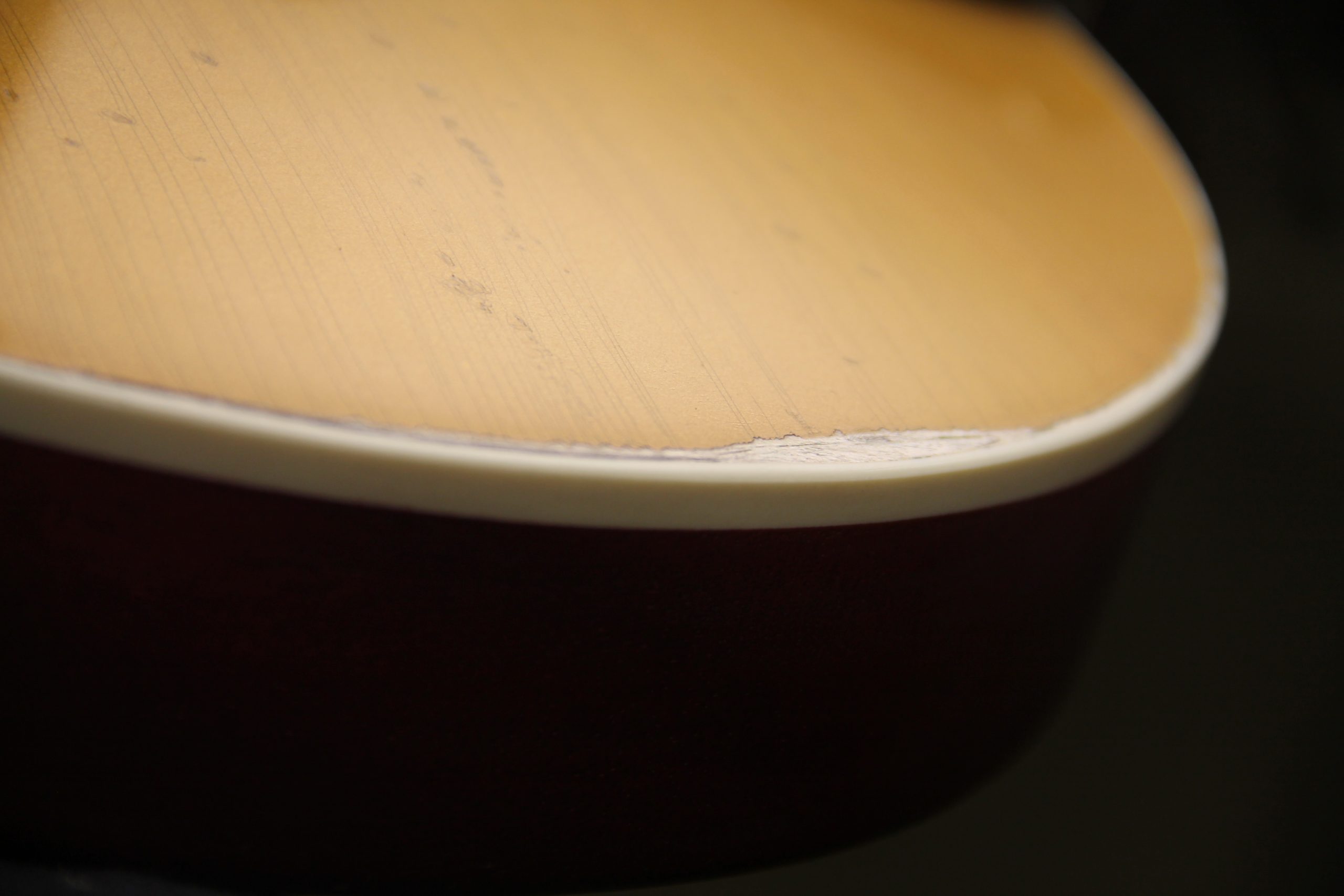

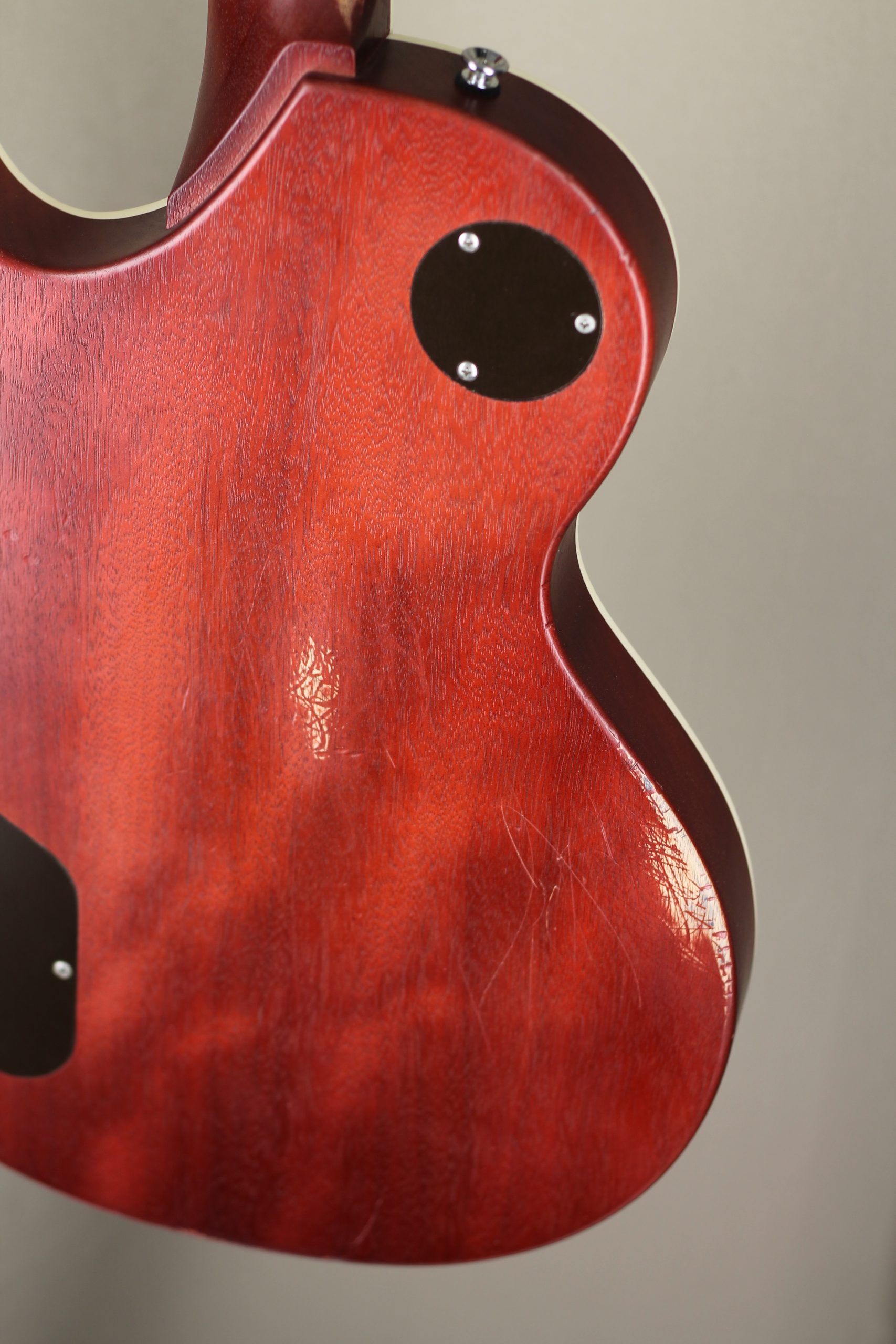

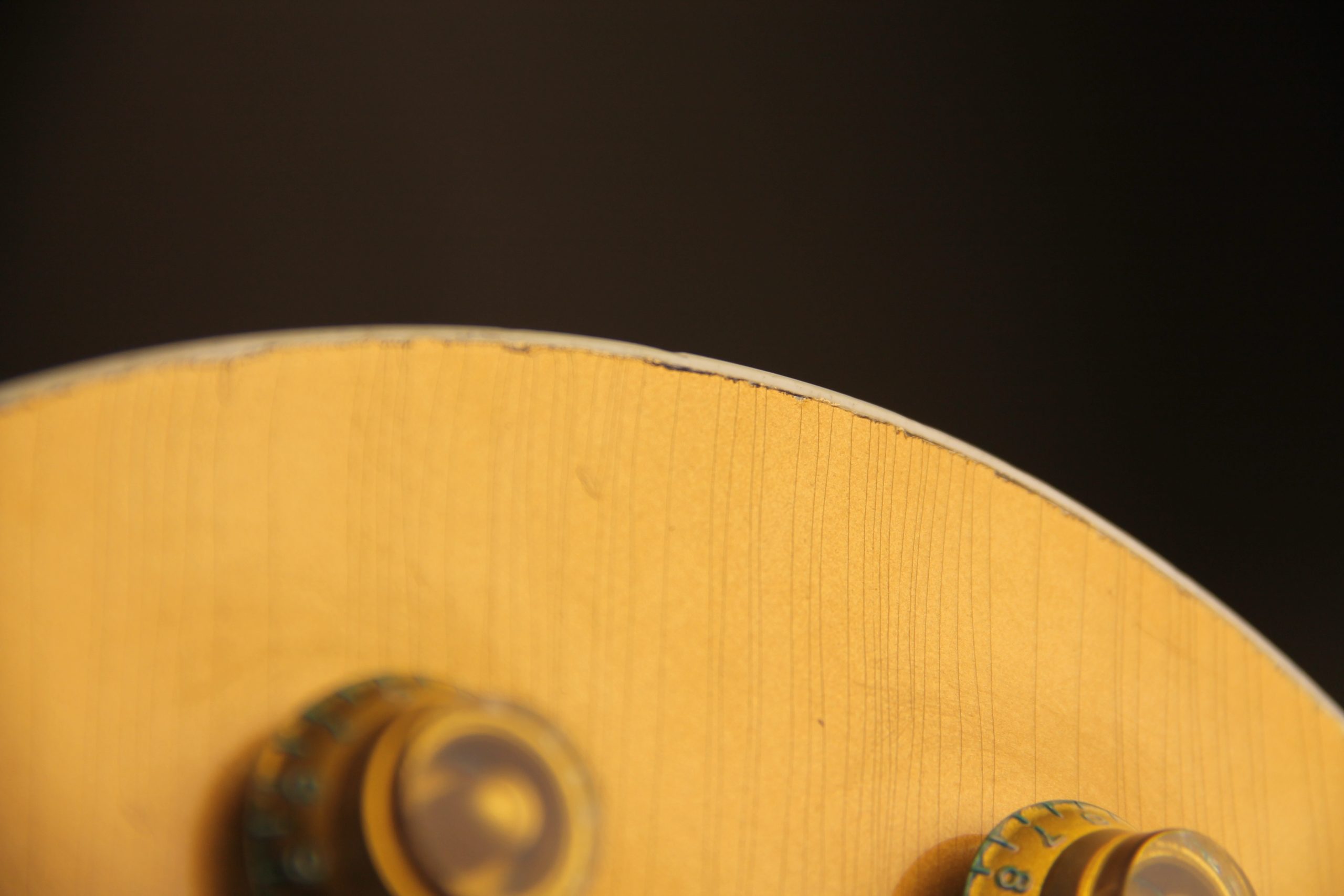

  • Body Finish: gloss nitro top with satin urethane back, or all gloss nitro
  • Weight: approx. 3,3kgs (7,3lbs)
